Focus Lens Diameter (Dia): 15mm; Edge Thickness (ET): 1.5mm For Co2 Laser 10.6um
Omtech Polar and Gweike Cloud users!!!!!!
Check out our LensPro uprade for your machine.
click the picture to see this product

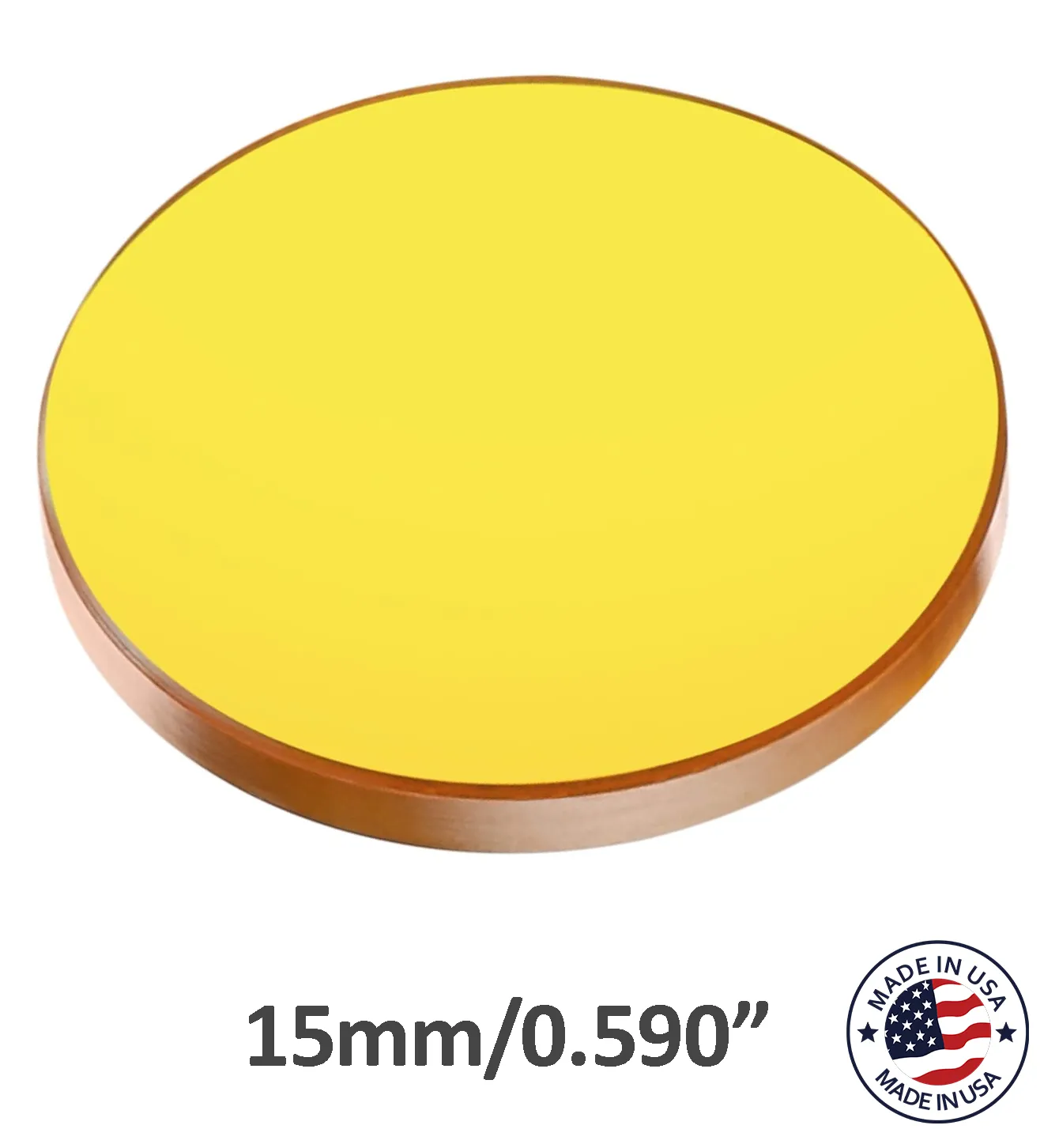

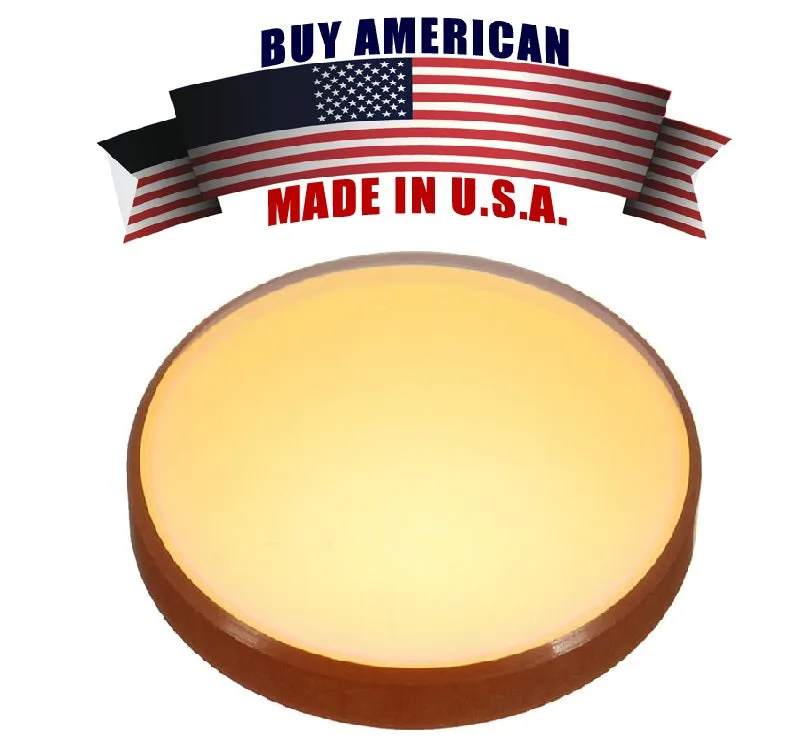

Elevate your laser engraving and cutting precision with our ZnSe Focus Lens, proudly crafted in the USA by American Photonics. This high-performance lens, featuring a 15mm Diameter (.591") and 1.5mm Edge Thickness, is designed to deliver exceptional results with Omtech Polar and Trotec Speedy 100 laser machines. It offers multiple Focal Length (FL) options, enabling you to choose the perfect lens for your specific applications. 🪄
Product Specifications:
- Type: Plano Convex Focal Lens
- Material: High-Quality ZnSe Laser Grade (made in the USA) 🇺🇸
- Coating: 10.6um (AR Both Side)
- Diameter Tolerance: 0/-0.13mm
- Center Thickness Tolerance: ± 0.1mm
- Clear Aperture: >= 90% Diameter
- Scratch/Dig: 40-20
Select Your Ideal Focal Length (FL):
Choose from a range of Focal Lengths to perfectly match your engraving and cutting requirements:
-
38.1mm (1.5"): Achieve intricate details and precise engraving on various materials.
-
50.8mm (2.0"): Versatile for a wide range of engraving and cutting tasks. 🌟
-
63.5mm (2.5"): Strike the perfect balance between depth and precision.
-
101.6mm (4.0"): Ideal for applications requiring an extended focal point.
Experience the difference with our anti-reflective coated Focus Lens, capable of handling power levels of up to 200W. At American Photonics, we take pride in our commitment to quality. All our lenses are meticulously crafted to meet the demands of high-power laser machines, ensuring you achieve the best results every time.
Select your preferred Focal Length and unlock the full potential of your Omtech Polar or Trotec Speedy 100 laser machine today! 🎯
#AmericanPhotonics #CO2LaserLens #LaserPrecision #LaserEngraving #LaserCutting #MadeInUSA #HighQualityLens #OmtechPolar #TrotecSpeedy100
Focal Length Tolerance: < 1%
Clear Aperture: >= 90% Diameter
Scratch/Dig: 40-20
