Focus Lens Diameter (Dia): 18mm; Edge Thickness (ET): 2mm For Co2 Laser 10.6um

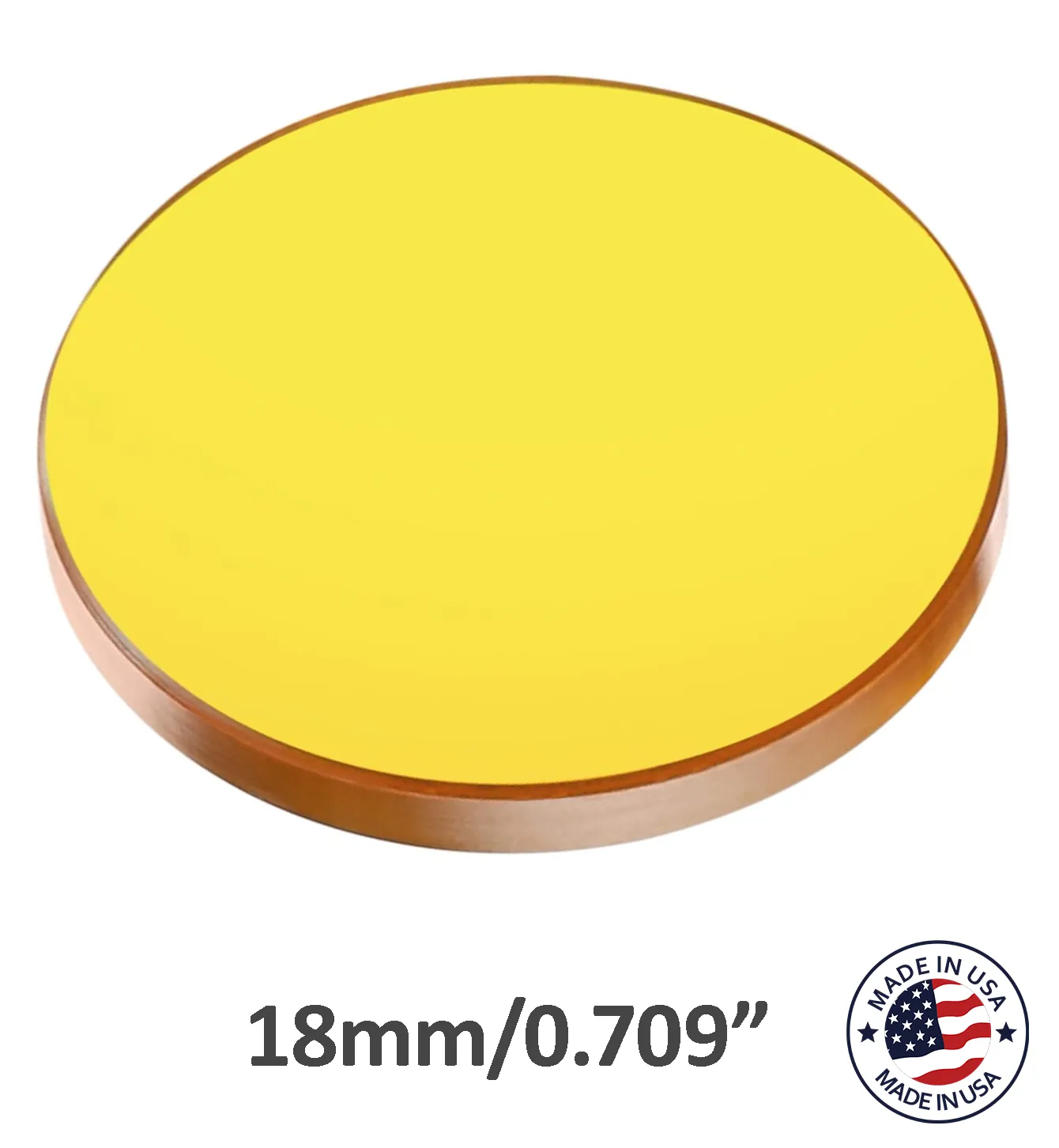

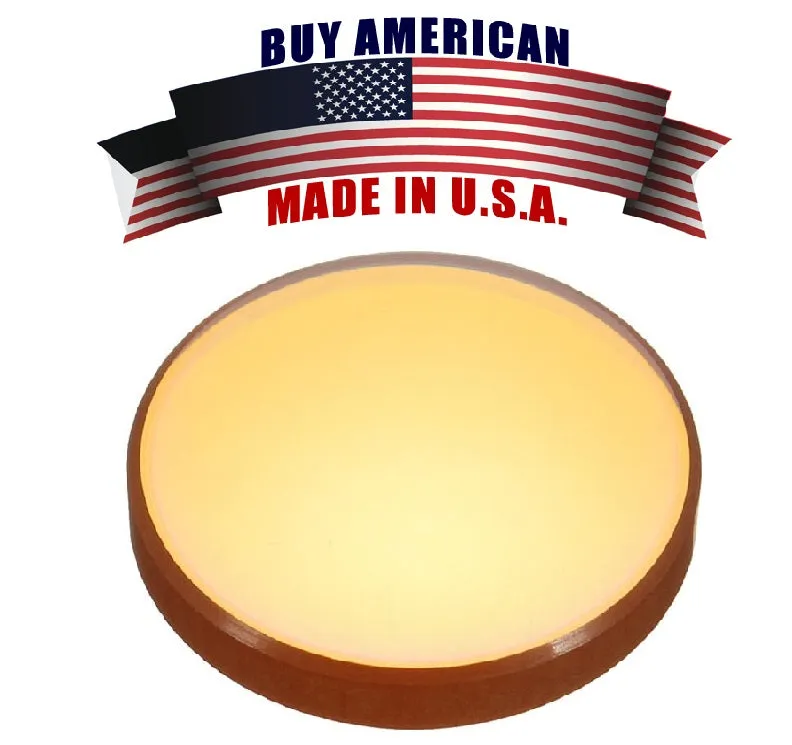

🔍 Laser Precision with American Photonics: ZnSe Focus Lens 18mm (.708") - Multiple Focal Lengths Available!

Discover the ultimate in laser precision with our ZnSe Focus Lens, proudly made in the USA by American Photonics. This high-quality lens, with an 18mm Diameter (.708"), is designed to elevate the performance of your CO2 laser machine. It offers multiple Focal Length (FL) options, allowing you to choose the perfect lens for your specific engraving and cutting needs. 🪄

Product Specifications:

• Type: Meniscus Laser Focal Lens
• Material: High-Quality ZnSe Laser Grade (made in the USA) 🇺🇸
• Coating: 10.6um (AR Both Side)
• Diameter Tolerance: 0/-0.13mm
• Center Thickness Tolerance: ± 0.1mm
• Clear Aperture: >= 90% Diameter
• Scratch/Dig: 40-20

APC PN#: LM-18-Z-50.8-ET2.0-DBAR

Select Your Ideal Focal Length (FL):

Choose from a range of Focal Lengths to match your specific engraving and cutting requirements:

• 38.1mm (1.5"): Achieve intricate details and precise engraving on various materials.

• 50.8mm (2.0"): Versatile for a wide range of engraving and cutting tasks. 🌟

• 63.5mm (2.5"): Strike the perfect balance between depth and precision.

• 101.6mm (4.0"): Ideal for applications requiring an extended focal point.

Experience the difference with our anti-reflective coated Focus Lens, capable of handling power levels of up to 200W. At American Photonics, we take quality seriously, and our lenses are designed to meet the demands of high-power laser machines. Elevate your laser projects to new heights of precision and clarity with American Photonics' ZnSe Focus Lens.

Select your preferred Focal Length and enhance the capabilities of your CO2 laser machine today! 🎯

Need help understanding your laser lens specs like Focal Length (FL), Diameter (Dia), or Edge Thickness (ET)? Our blog has you covered! Check it out here:  for quick and easy insights.
