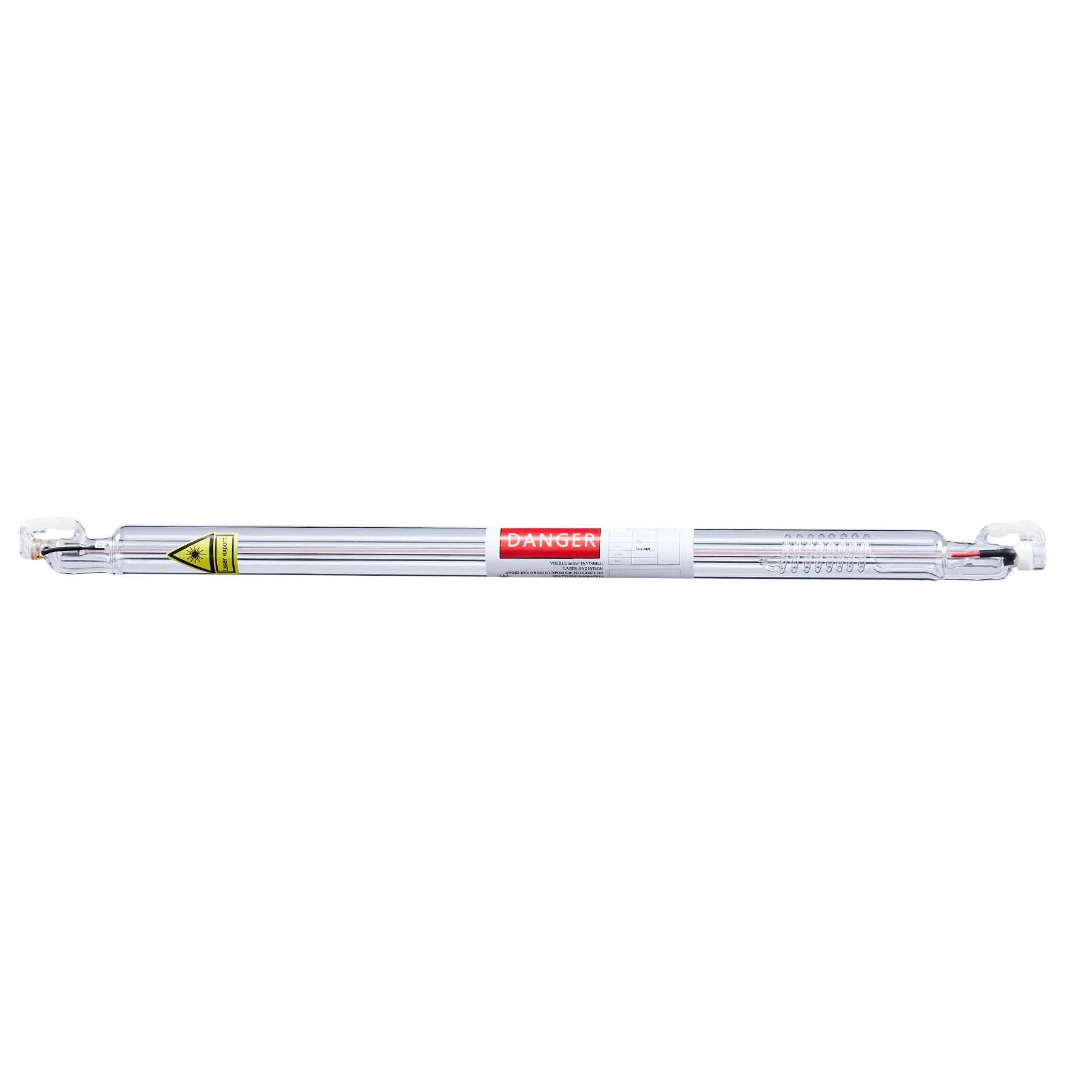

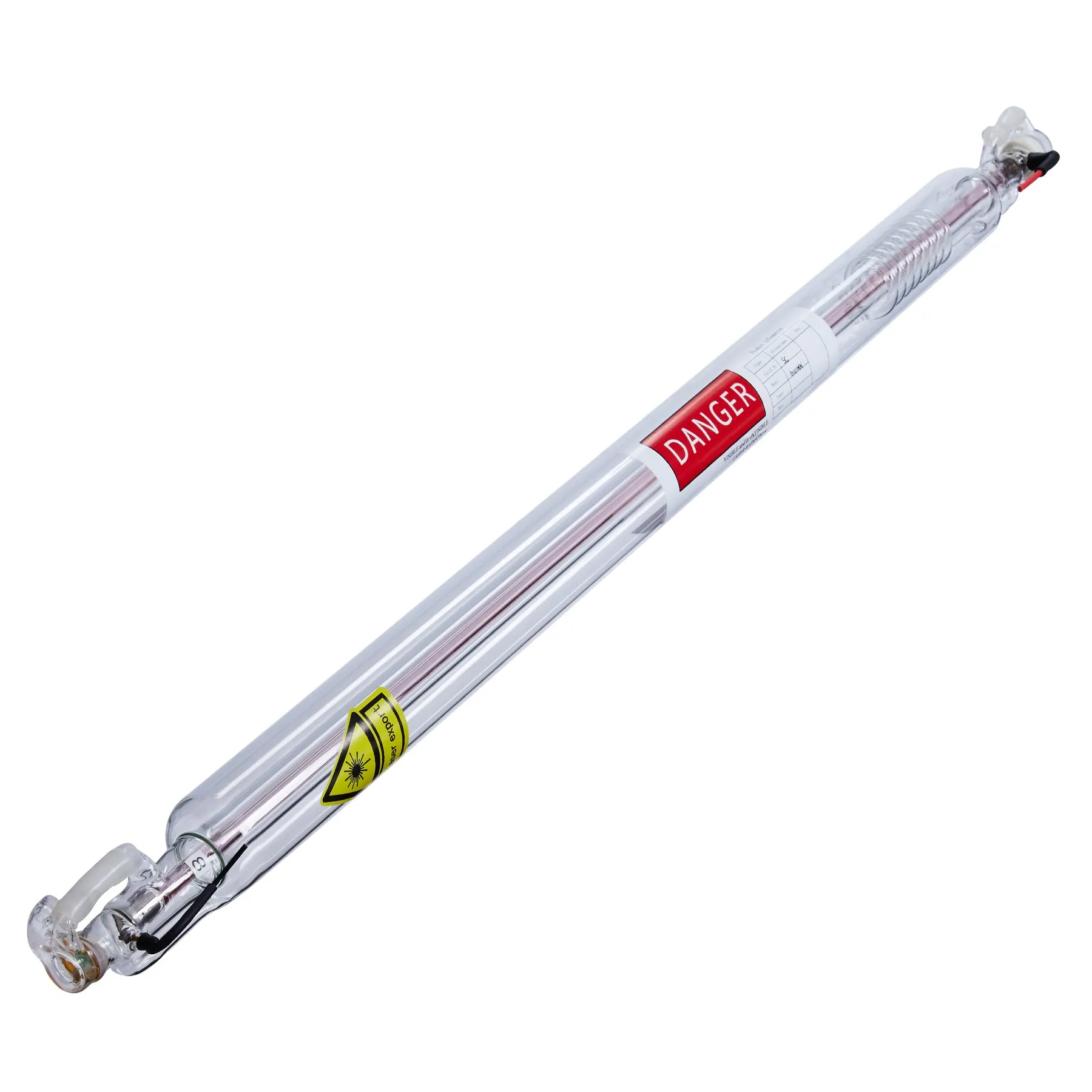

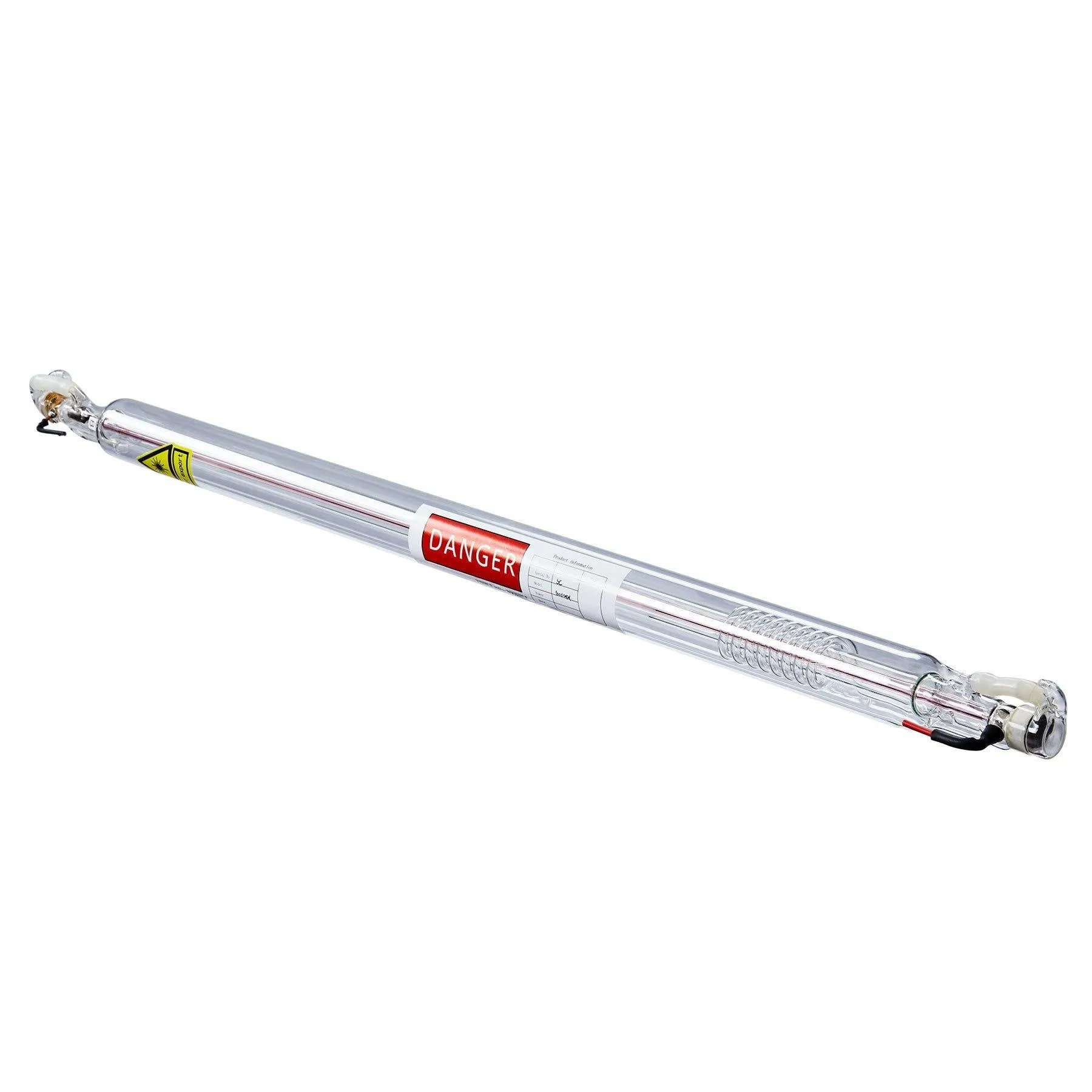

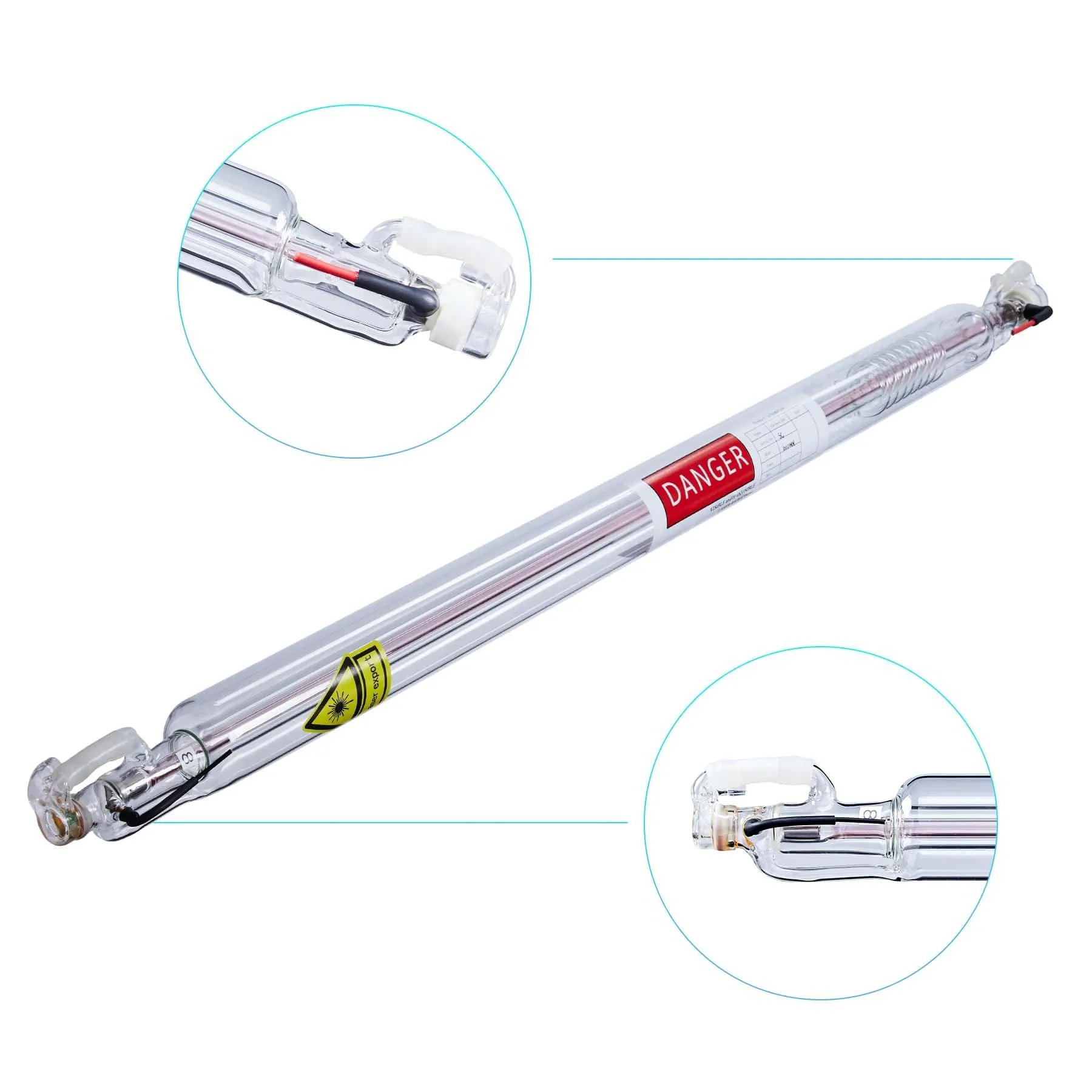

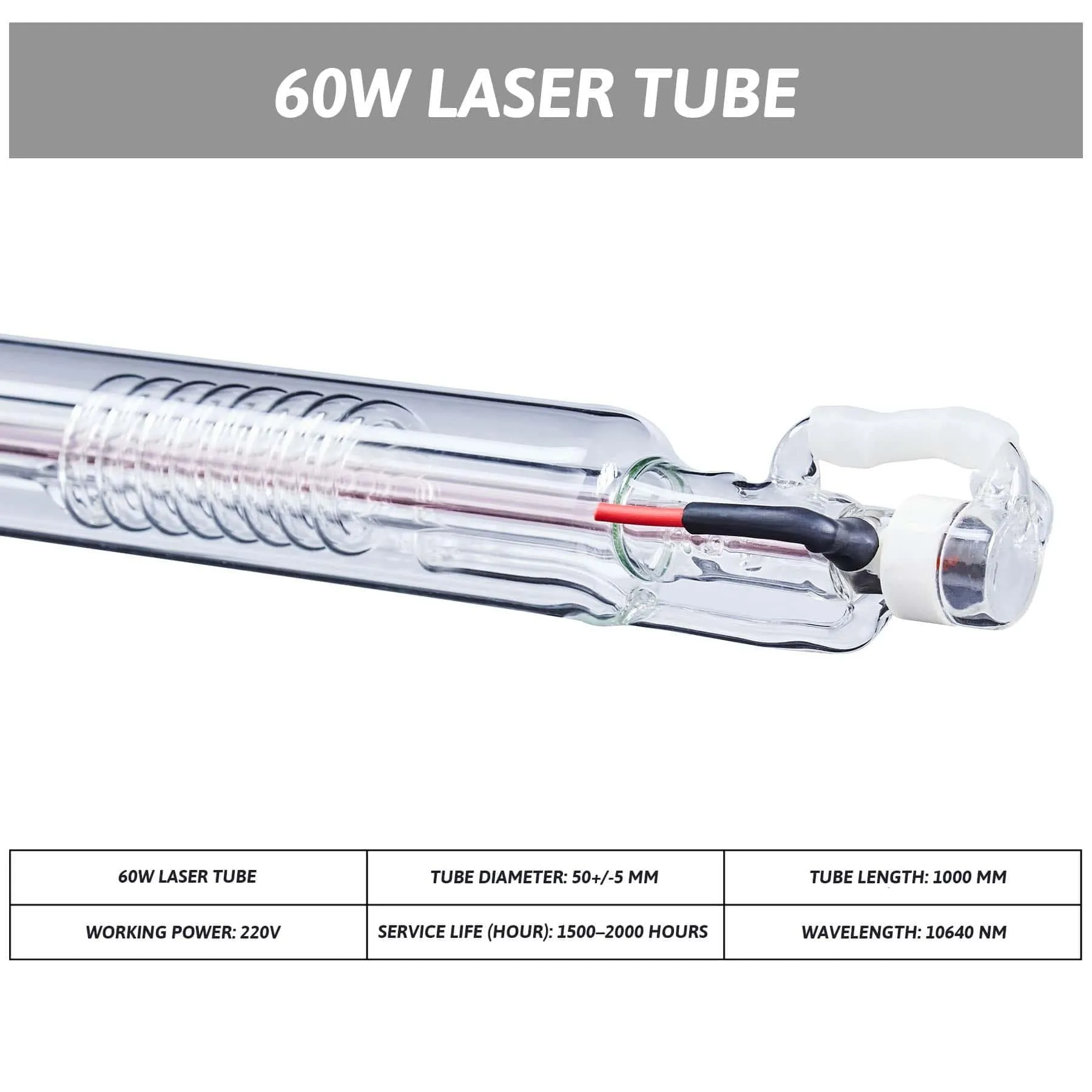

60W CO2 Laser Tube Description

Precision in your Engraving:

• Our CO2 Laser Tubes produce stable laser beams to make precise marks on a wide variety of materials.

Power:

• Maximum Power: 60W
• Beam Diameter: 2.5 mm
• Triggering Voltage: 22-24 KV
• Operating Voltage: 18 KV
• Optimal Operating Current: 15-18 mA
• Power Stability: ±5%
• Wavelength: 10,640 nm
• Cut up to 20 mm thick plywood and acrylic/plexiglass

Lifetime:

• 60W Hermetic CO2 Glass Tube with an estimated lifetime of up to 2,000 operation hours depending on power setting usage and water cooling performance
• PLEASE NOTE: Frequent use of high laser power settings will shorten the laser tube lifetime as follows:
• Low Power 10–40% = 1,700–2,000 Hours
• Moderate Power 40–70% = 1,300–1,500 Hours
• High Power 70–100% = 800–1,000 Hours

Additional Features:

• Product Length: 1000 mm (39.37”)
• Product Diameter: 55mm
• Net Weight: 1.7 kg (3.75 lb)
• Allowable Humidity: <85%

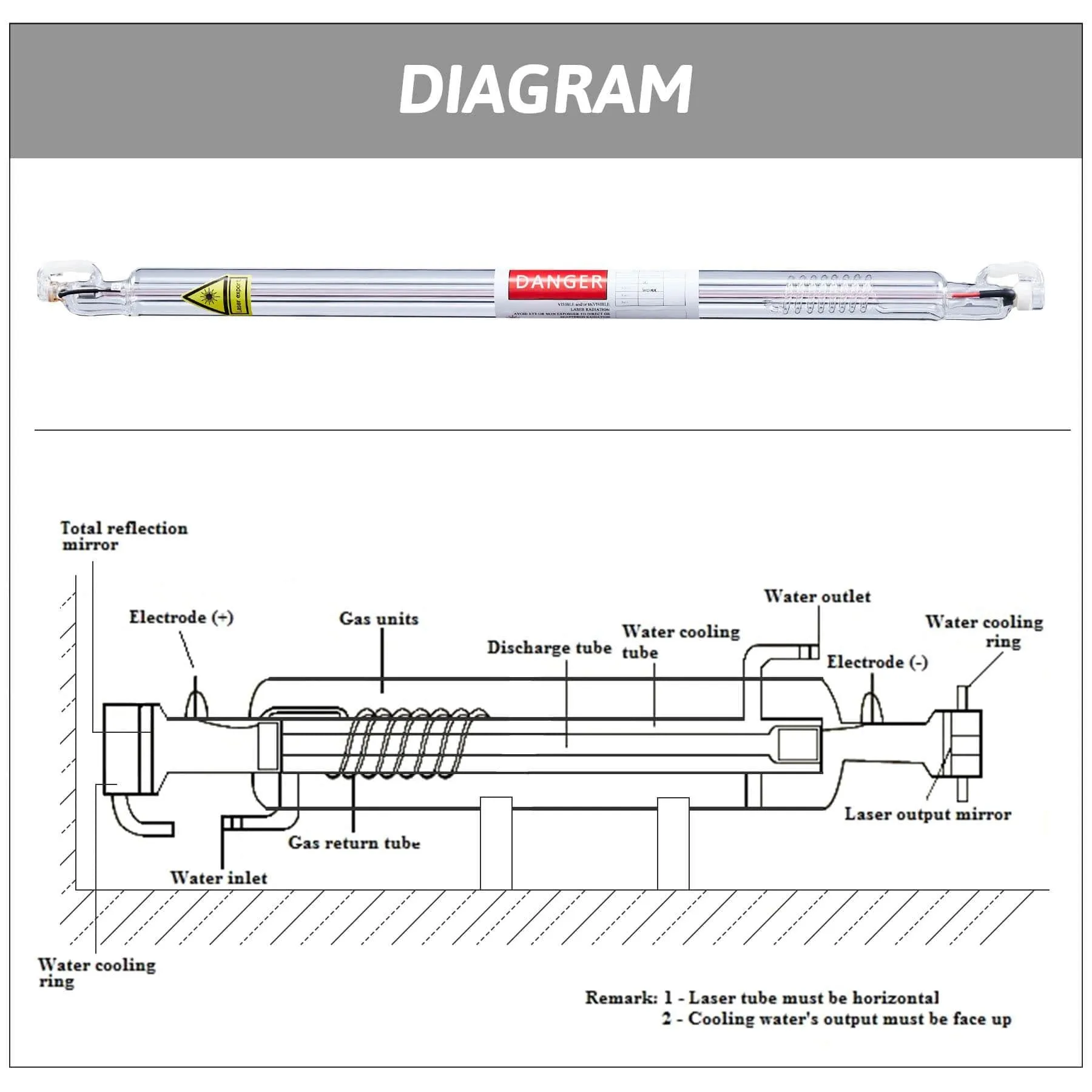

• Adjustable resonator

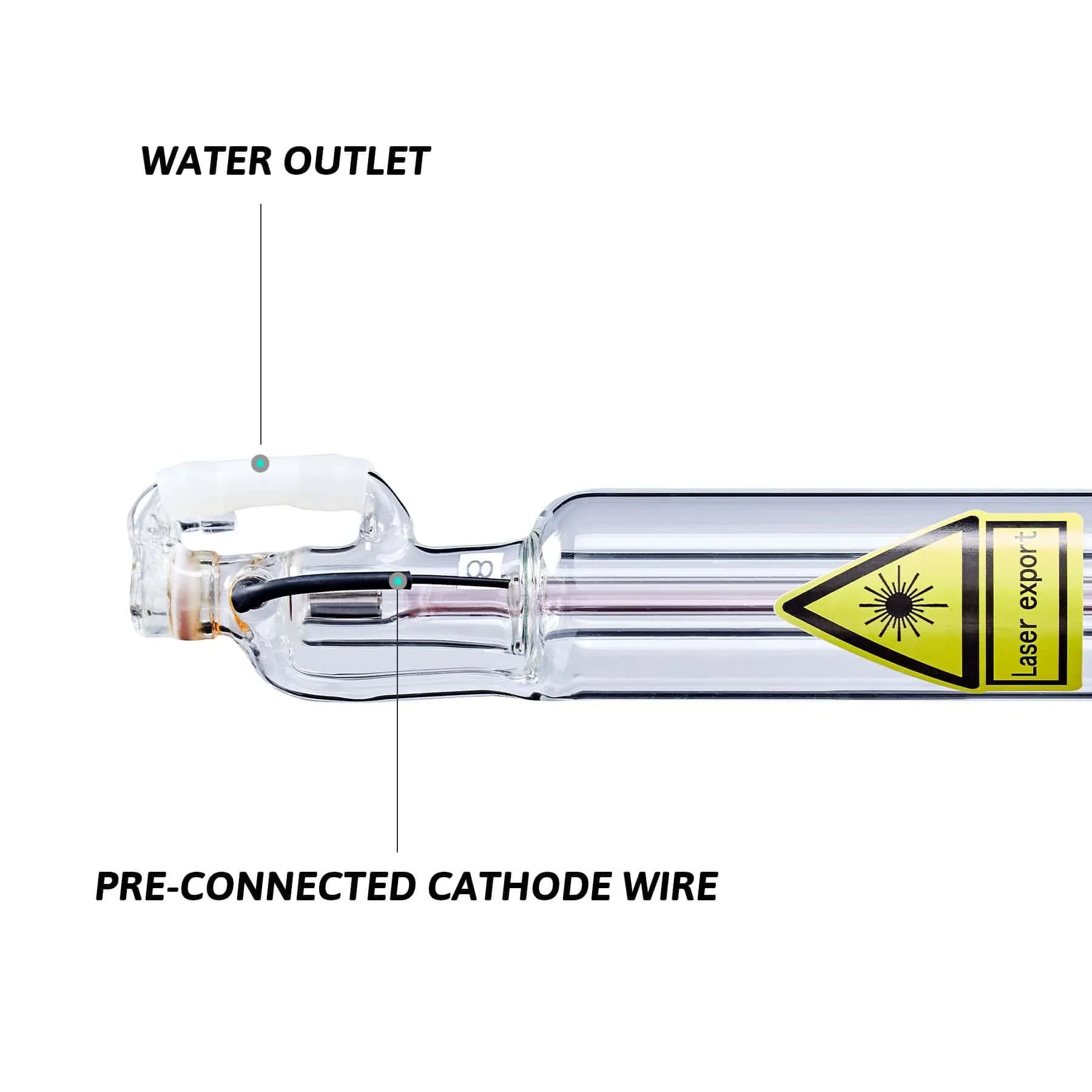

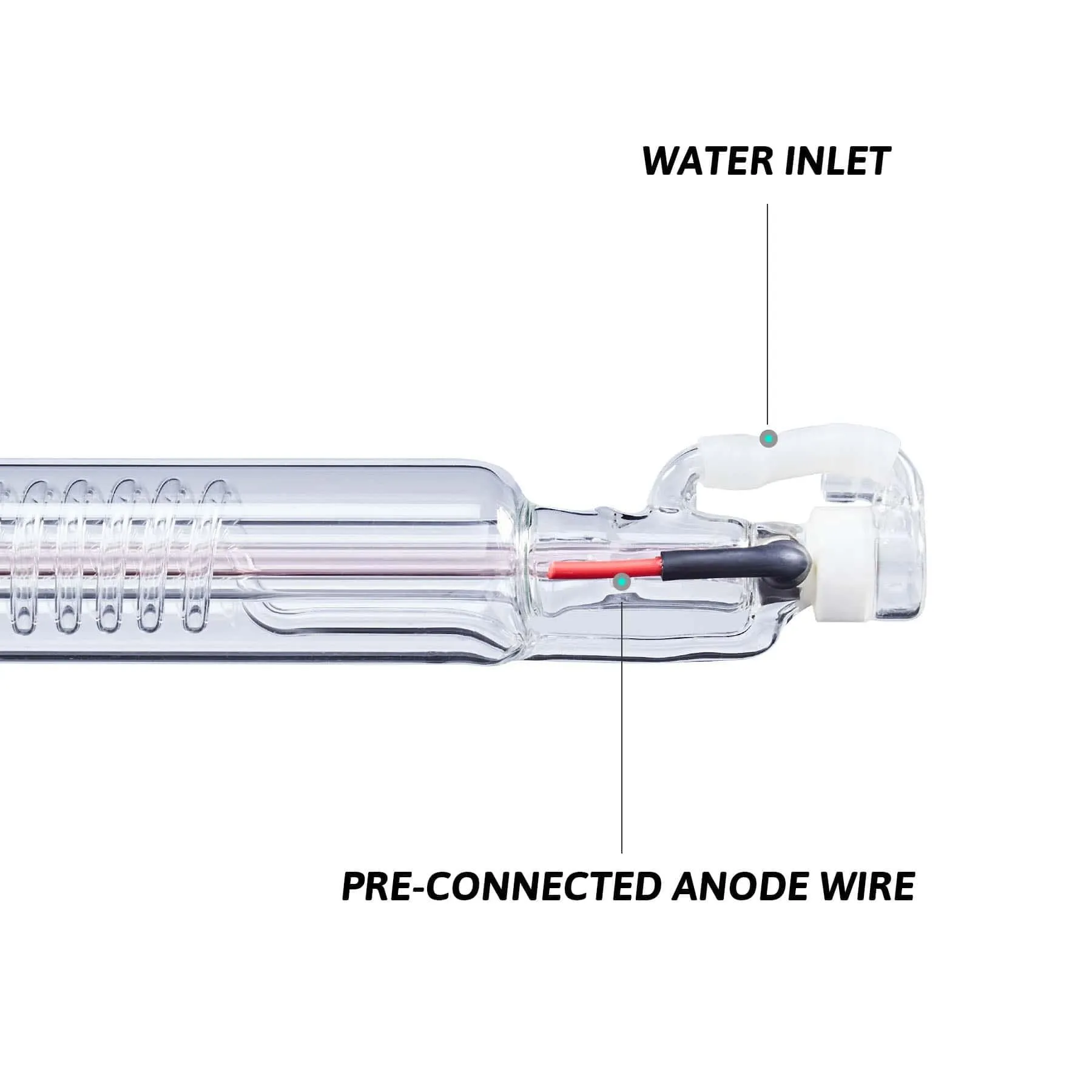

• The water outlet and inlet allow efficient flow of cooling water.

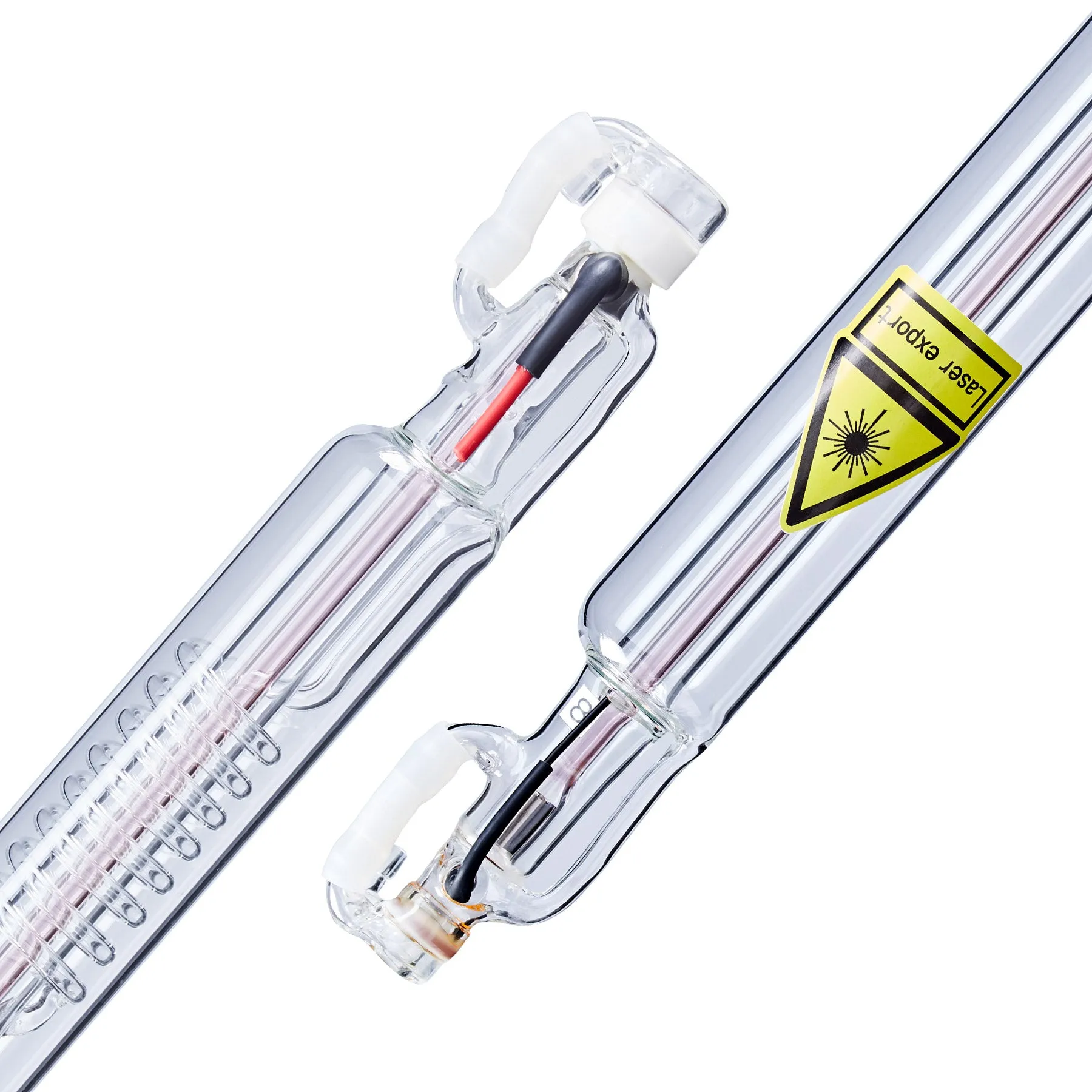

• Made out of borosilicate glass, copper, and plastic
• Optimum cooling water temperature between 15-19°C (60-70°F)

Package Includes:

• 1 x 60W Laser Tube

Warranty:

• No need to worry! We offer a 6-month warranty on all CO2 laser tubes 60W and below.

Certifications:

• FDA Compliant
• CE Certification
• ISO9001 Quality Certification
