About ATOMSTACK :
100% laser engraving machine manufacturer located in China, welcome to visit our factory whenever you like! It is important to know that our factory do not just sell "boxes", but we offer support and advice to get the best results with the laser engraver you choose. We are always available to provide the spare parts you need with your laser engraving machine .You could reply on us for the consistent quality and service!
About Tax:
we do not including any tax and duty!
About customs charging fee . nobody can control , every country customs has different Import and export tariff system.
About Maintenance:
All machines have 13 months warranty against manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you. If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.
🔥 Specifications:
Model number: ATOMSTACK A5 Pro
Engraving Area: within 410*400mm
Electric power: 40W
Laser output power: 5.5W
Wave Length: 445 ± 5nm
Engraving accuracy: 0.01mm
Focusing method: fixed focus laser, no need to focus
Input Voltage: AC100-240V, 50/60Hz
Output Voltage: DC12V, 5A
Machine net weight: 3.426kg
Package weight: 5.072kg
Machine size: 570*600*270mm
Packing size: 620*345*130mm
Carving materials: wood, bamboo, cardboard, plastic, leather, MDF, slate, lacquered metal, mirror stainless steel;
Cutting material: cardboard, non-woven fabric, veneer, acrylic, some thin plastic board, sponge, MDF, leather;
Eye protective cover: Protect the user's eyes and prevent pets from grabbing the laser spot.
Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / Win 10 system.
Input Format: NC, BMP, JPG, PNG, DXF, etc.
Data transmission method: USB connection.
Production Description:
Ultra-fine compression laser: the laser power is 5-5.5W, and the focusing range of the ultra-fine laser is reduced to 0.07mm. The high-density laser can easily cut 12 mm thick wood and black acrylic; it can directly engrave smooth stainless steel, ceramic and glass (black glass surface). The fire spot surface of the new laser is 50% smaller than that of other ordinary lasers and can take into account both precision engraving and high-energy cutting.

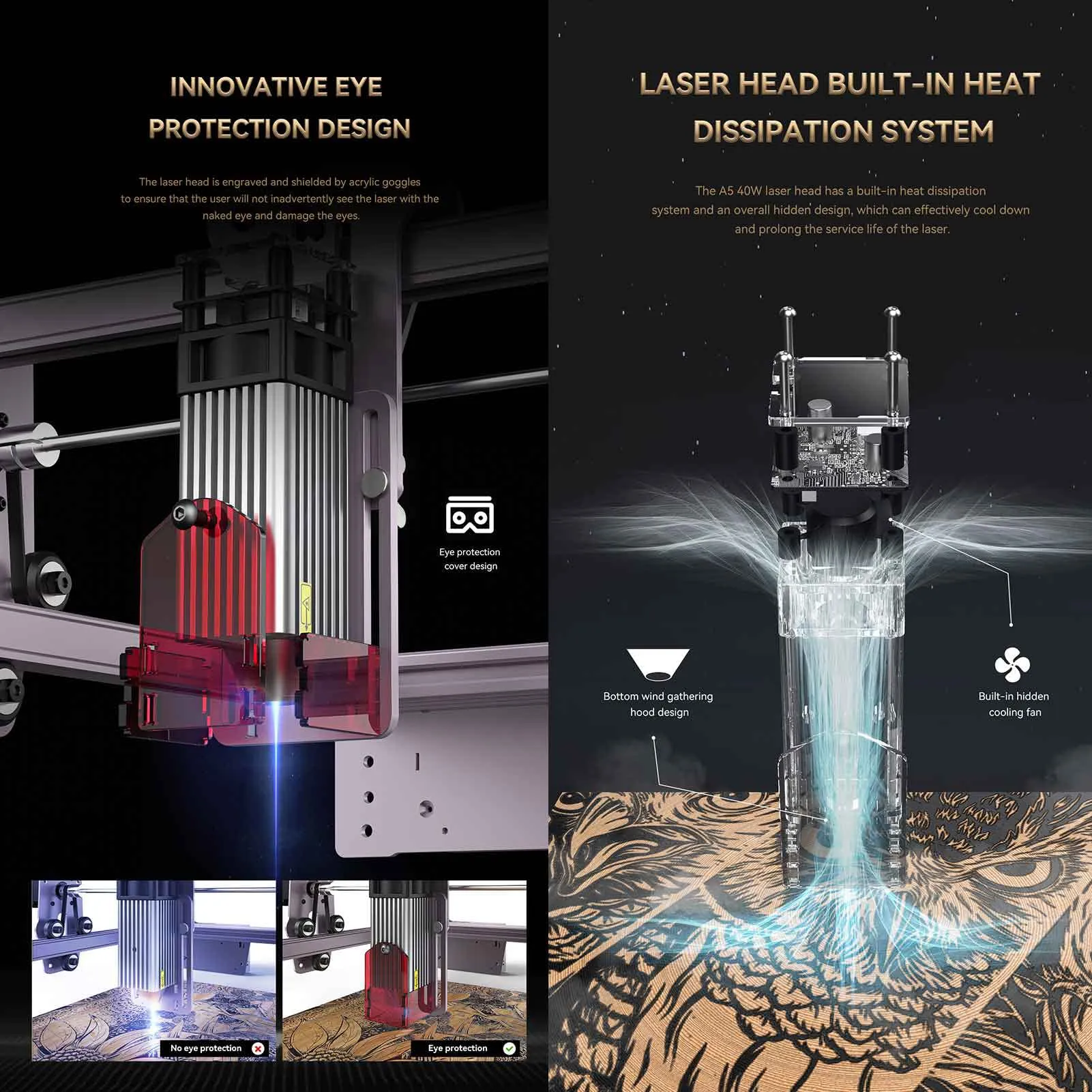

Brand new eye protection design: The laser protective cap plays a very good role in protecting your eyes and filters 97% of ultraviolet light. You and your fellow human beings can observe the laser engraving without glasses. Reduce the cost of your goggles and the inconvenience of wearing goggles.

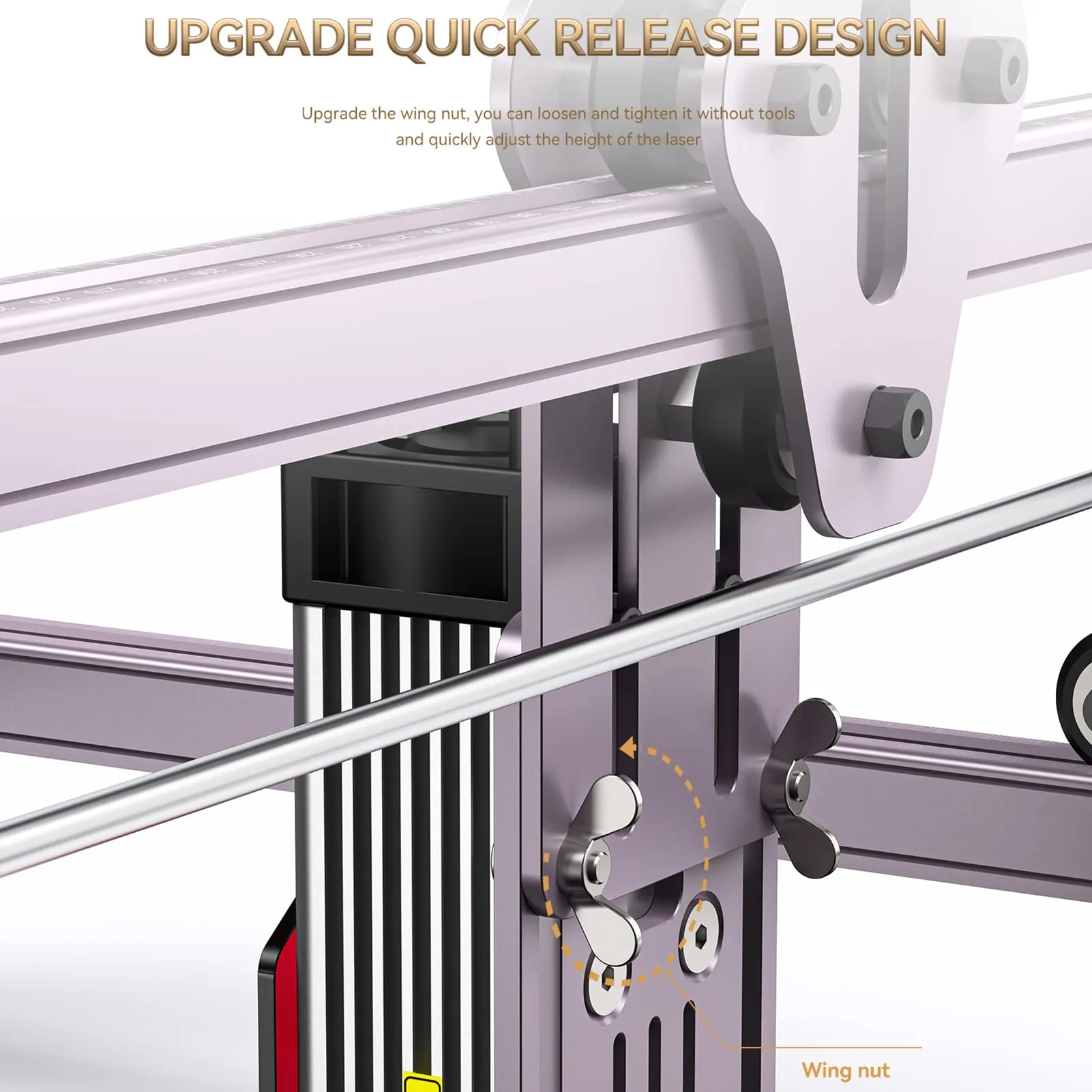

Robust and easy to install design design: The anodized aluminum alloy design makes the machine more robust and durable, while improving the accuracy of the engraving. The entire structure is designed for quick installation. The X axis and Y-axis contain a precision scale line, which allows you to easily perform a quick length measurement.

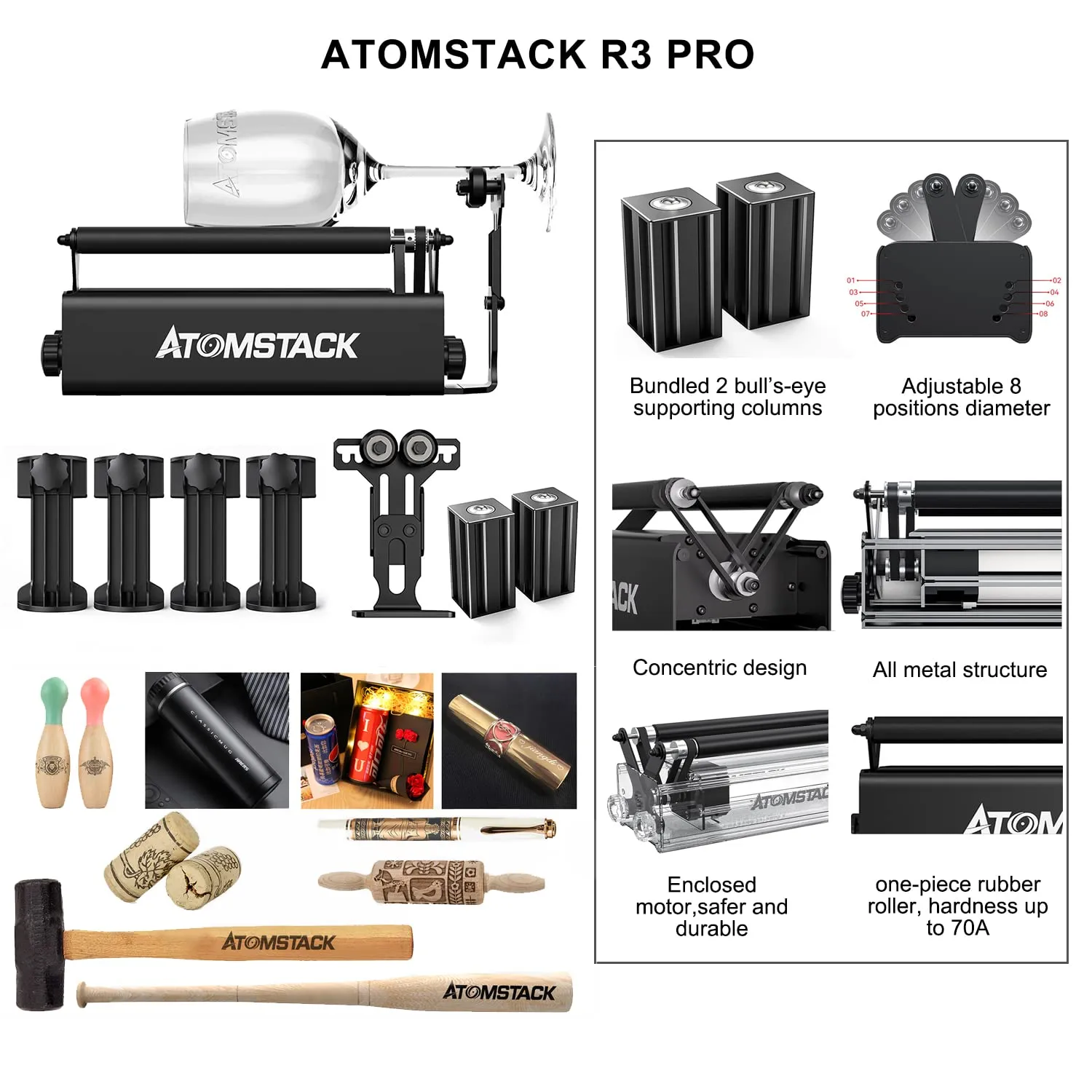

R3 Pro Laser Rotary Roller Set: the diameter is adjustable in 8 gears and the engraving diameter is only 4 mm. Previous design, barrier-free, the length of the engraving is not limited. Suitable for extended cylinders, small diameter cylinders, engraving super long plates, cutting ultra-long plates, cans, sculptures.
Wide application: The A5 Pro laser engraving machine ATOMSTACK A5 Pro can engrave almost any object to give creativity to your design. Contains wood, bamboo, cardboard, plastic, leather, printed circuit boards, aluminum oxide, non-reflective coatings and lacquered metal. It can cut wood, cardboard, fleece, veneer, acrylic, plastic sheets. The large engraving interval of 410 x 400 mm can meet your different engraving needs.
