About ATOMSTACK :
100% laser engraving machine manufacturer located in China, welcome to visit our factory whenever you like! It is important to know that our factory do not just sell "boxes", but we offer support and advice to get the best results with the laser engraver you choose. We are always available to provide the spare parts you need with your laser engraving machine .You could reply on us for the consistent quality and service!
About Tax:
we do not including any tax and duty!
About customs charging fee . nobody can control , every country customs has different Import and export tariff system.
About Maintenance:
All machines have 13 months warranty against manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you. If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.
SPECIFICATIONS:
Product Model: AtomStack A70 Pro X70 PRO
Device Size: 706*767*230mm
Engraving Size: 500*400mm
Working Principle: Engraving / Cutting
Engraving Materials: Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplated and painted metal, 304 mirror stainless steel, glass, ceramics, cotton, slate;
Cutting Materials: Thin steel plate, cardboard, non-woven fabric, wood, acrylic, more thin plastic sheets, sponge;
Input Power: 360W
Output Power: 70-77W, 35-39W
Maximum Speed: 400mm/s (24000mm/min)
Laser Wavelength: 455±5nm
Engraving Accuracy: 0.01mm
Repetition Accuracy: 0.1mm
Spot Size: 0.12*0.18mm (70W) / 0.08mm*0.12mm (35W)
Transmission Method: USB transmission
Focus Adjustment Method: Automatic focus manual focus
Screen Control: 4.3 inches
Connection Support: Type-C, mobile WiFi, touch screen
Support Systems: IOS, Android, Windows, Mac
Operating Software: LaserGRBL, LightBurn, AtomStack Studio
Air Flow Rate: 0-60 L/min infinitely adjustable
Power Supply: Input 100-240V AC, 50/60HZ, output 12V 5A
Quality Certification: CE, FCC, RoHS, FDA, PSE
Product Description :

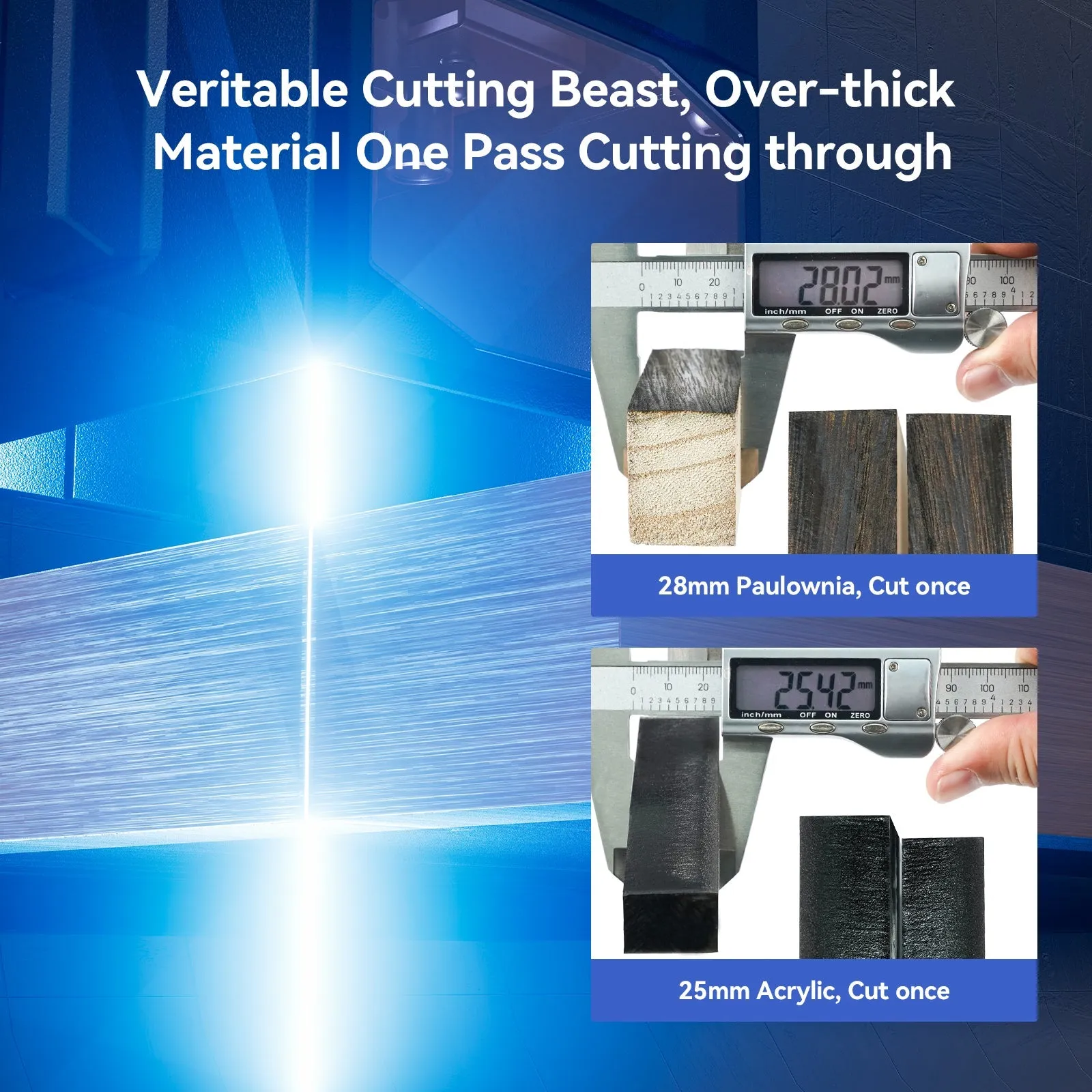

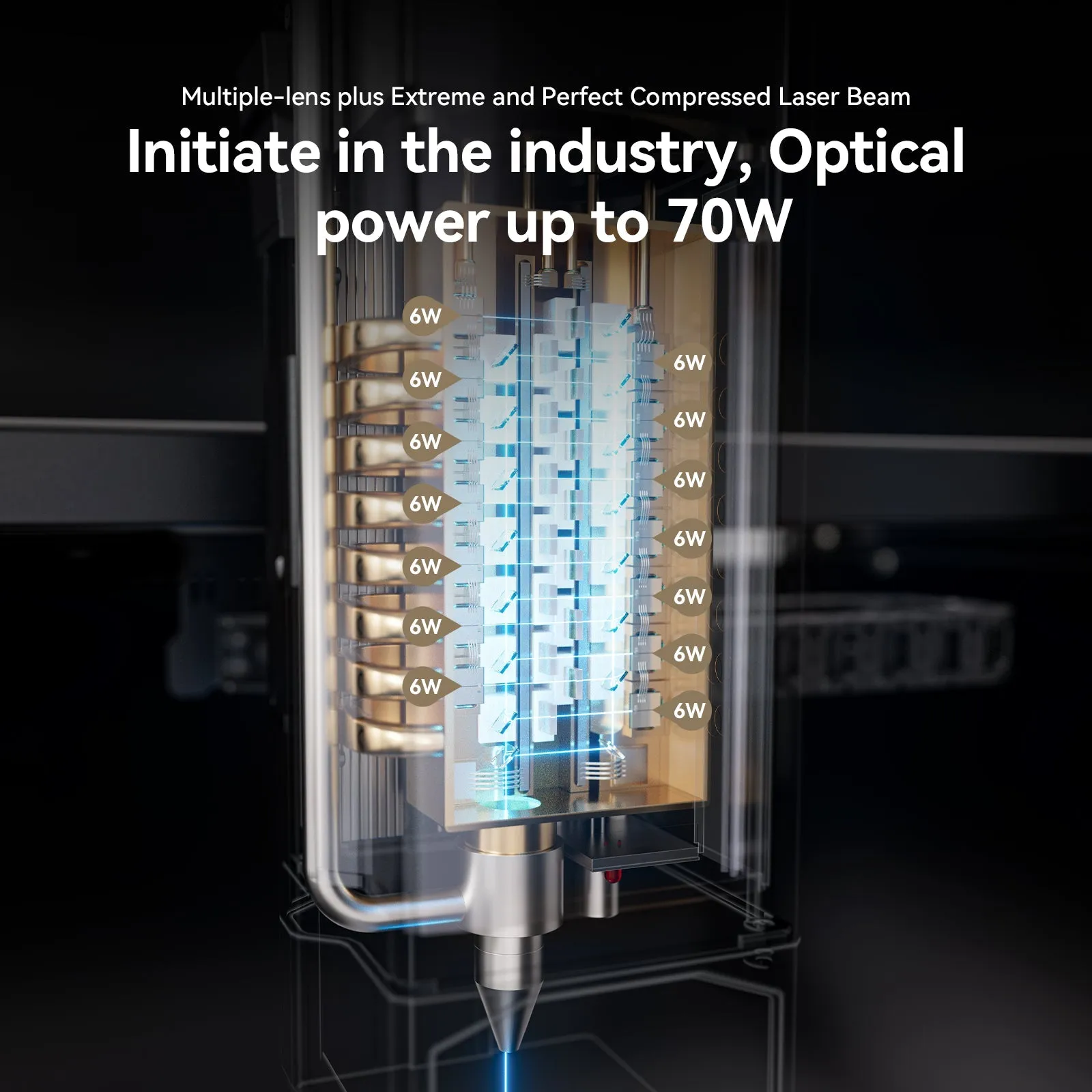

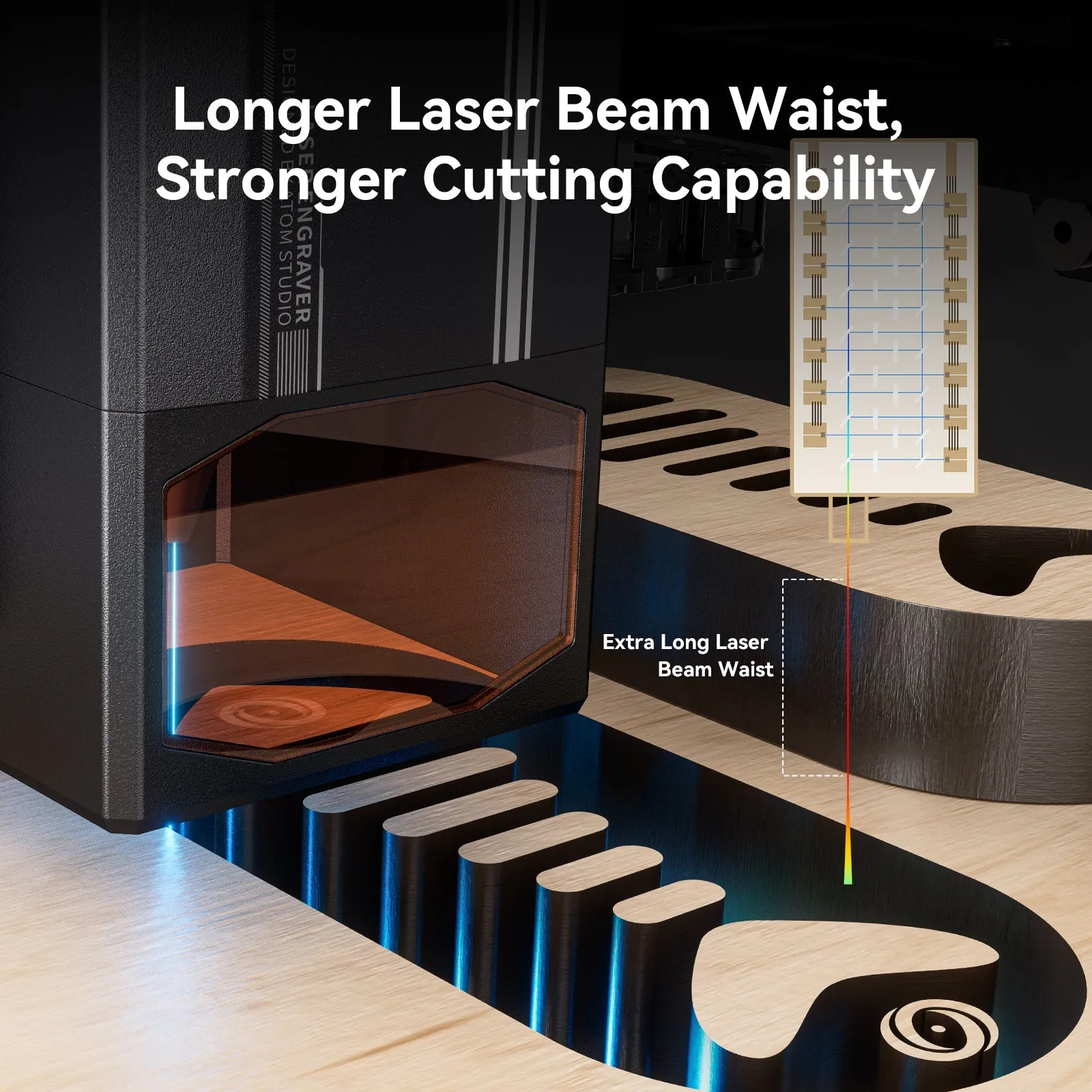

- [35W/70W laser power] ATOMSTACK A70 Pro laser engraving machine has a strong cutting power. Can cut 25mm acrylic, 12mm MDF board, 30mm pine wood board and 0.3mm stainless steel sheet. Switch between 35W and 70W laser power with one click.

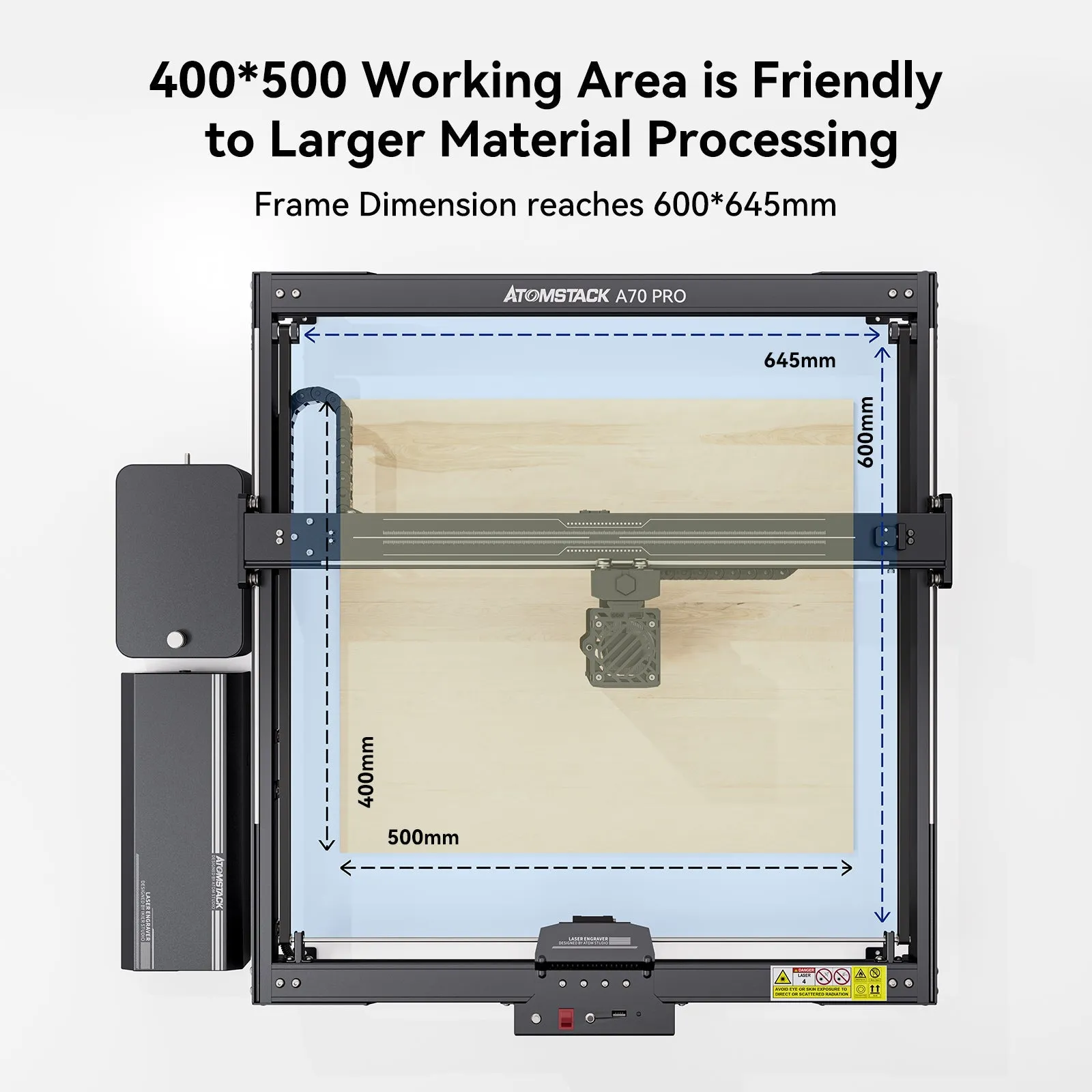

- Larger working area: ATOMSTACK A70 Pro laser engraver offers a generous working area of 400 x 500 mm. This extended engraving range offers users plenty of creative freedom and allows efficient work on various large-scale projects with wood, bamboo, cardboard, metals, ceramics and more.
- Air support with large flow and intelligent cooling system: the ATOMSTACK A70 Pro laser cutter has air support with a maximum of 60 L/min and ensures flawless cutting work. The surface of the cutting lines does not yellow, which extends the life of the laser. Opens the air support of the double layer ducting hood and automatically turns on the air support during cutting to achieve better heat dissipation and cutting effects.
- [0.01 mm accuracy and dual mode focus adjustment] A70 Pro laser engraver can maintain an accuracy of 0.01 mm with a high-speed operation of 400 mm/s. Supports manual and automatic focus adjustment and completes the focus setting within 8 seconds.

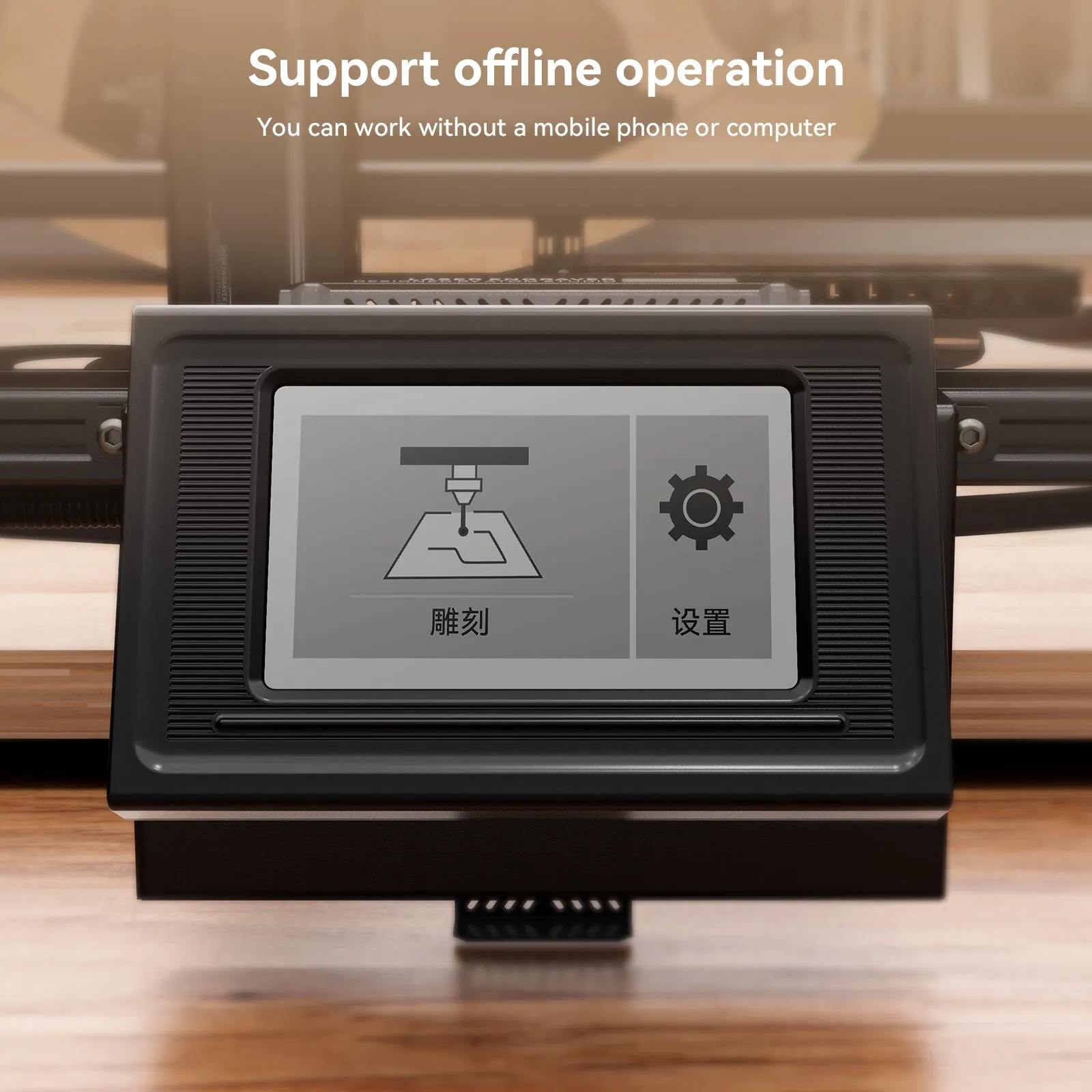

- Offline work: ATOMSTACK A70 Pro laser cutter has a smartboard and a second generation control screen and can work offline without a computer or phone. Automatic flame alarm and power-off resume function
Kindly Reminder that A70 pro , X70 pro all are same machine, just frame color is different , we will ship as available stock we have , thanks for your order !
