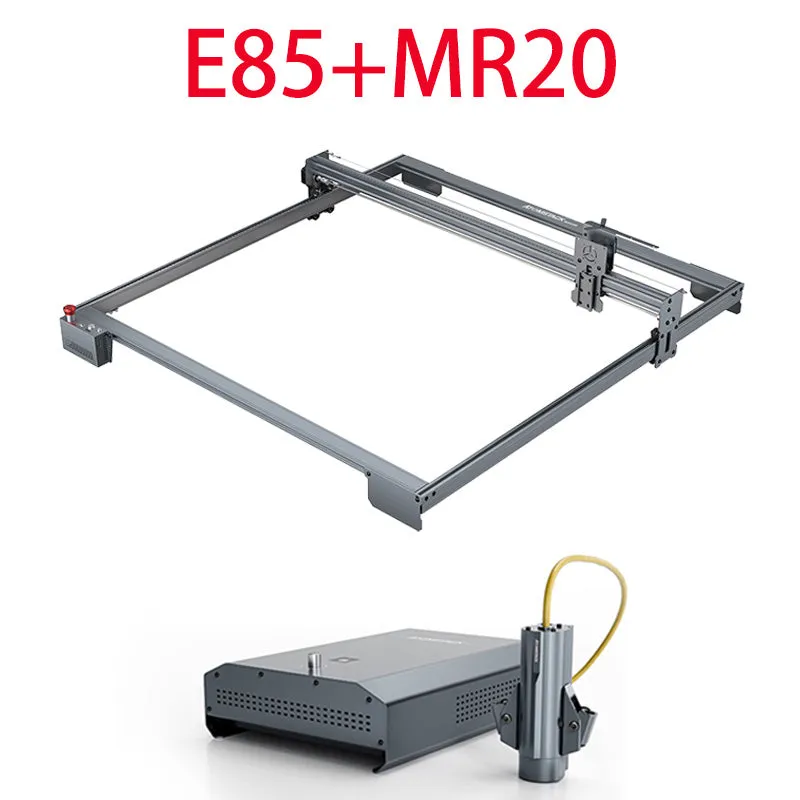

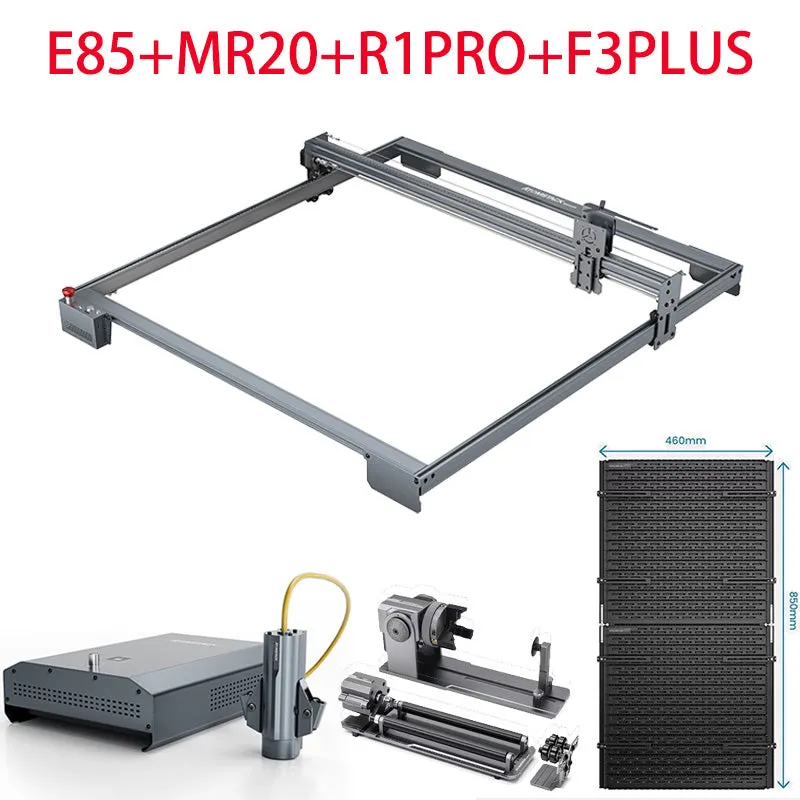

Name: ATOMSTACK MR20 20W Infrared Fiber Laser Module Engraver With E85 Metal Frame 850*800 Large Big Area Laser Engraving Cutting Marking Machine For Metal Plastic Acrylic Stone Rubber Leather Jewelry Rings Bracelets
SKU: 1096117

Product Details ＋

About ATOMSTACK :

100% laser engraving machine manufacturer located in China, welcome to visit our factory whenever you like! It is important to know that our factory do not just sell "boxes", but we offer support and advice to get the best results with the laser engraver you choose. We are always available to provide the spare parts you need with your laser engraving machine .You could reply on us for the consistent quality and service!

About Tax:
we do not including any tax and duty!
About customs charging fee . nobody can control , every country customs has different Import and export tariff system.

About Maintenance:
All machines have 13 months warranty against manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you. If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.

Production Parameters:

Product Model	E85 MR20
Engraving materials	PCB board, acrylic (non-transparent), aluminium oxide, plated and lacquered metal, 304mirror stainless steel, glass (non-transparent), ceramics, slate, leather;
Cutting material	thin stainless steel sheet, thin aluminium sheet; brass sheet;
Laser output optical power	20W

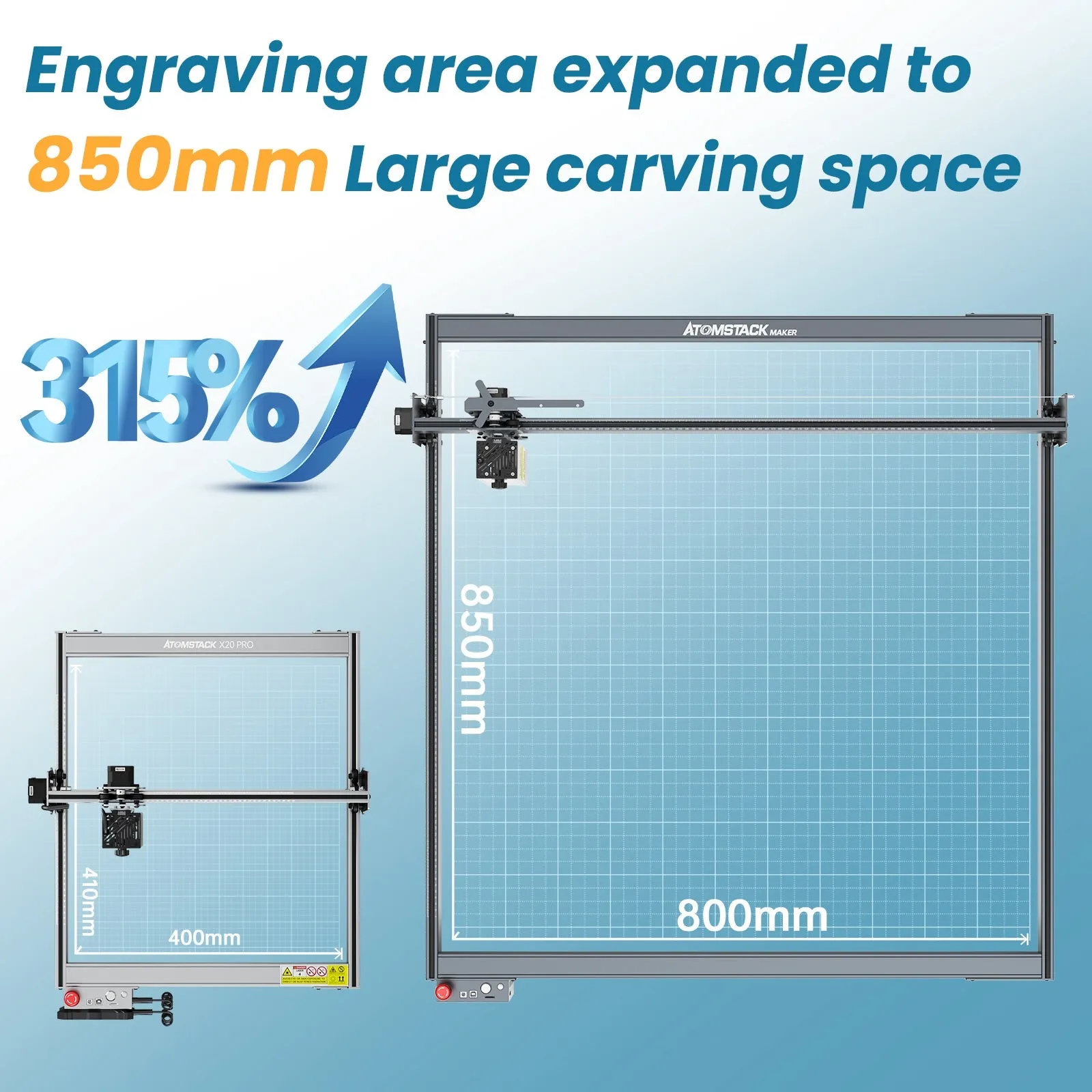

Working Area	850mm800mm/33.4631.5inch
Laser working power consumption	90W
Laser wavelength	1064nm
Spot size	0.03*0.06mm
Maximum pulse energy	0.7mj
Optical pulse width	80-110ns
Repetition frequency	30-60kHz
Peak power	7kW
Power supply	24V DC

Product Description:

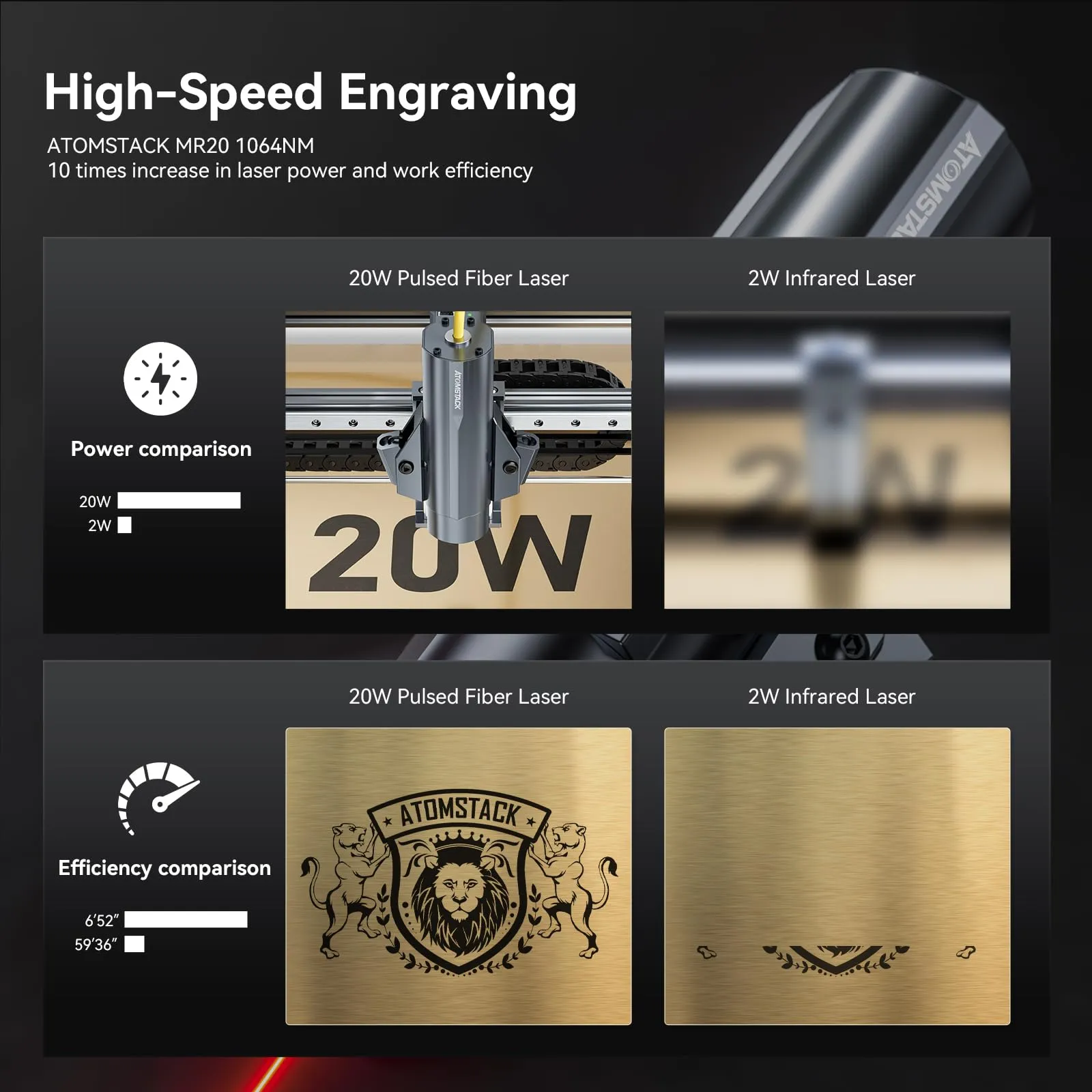

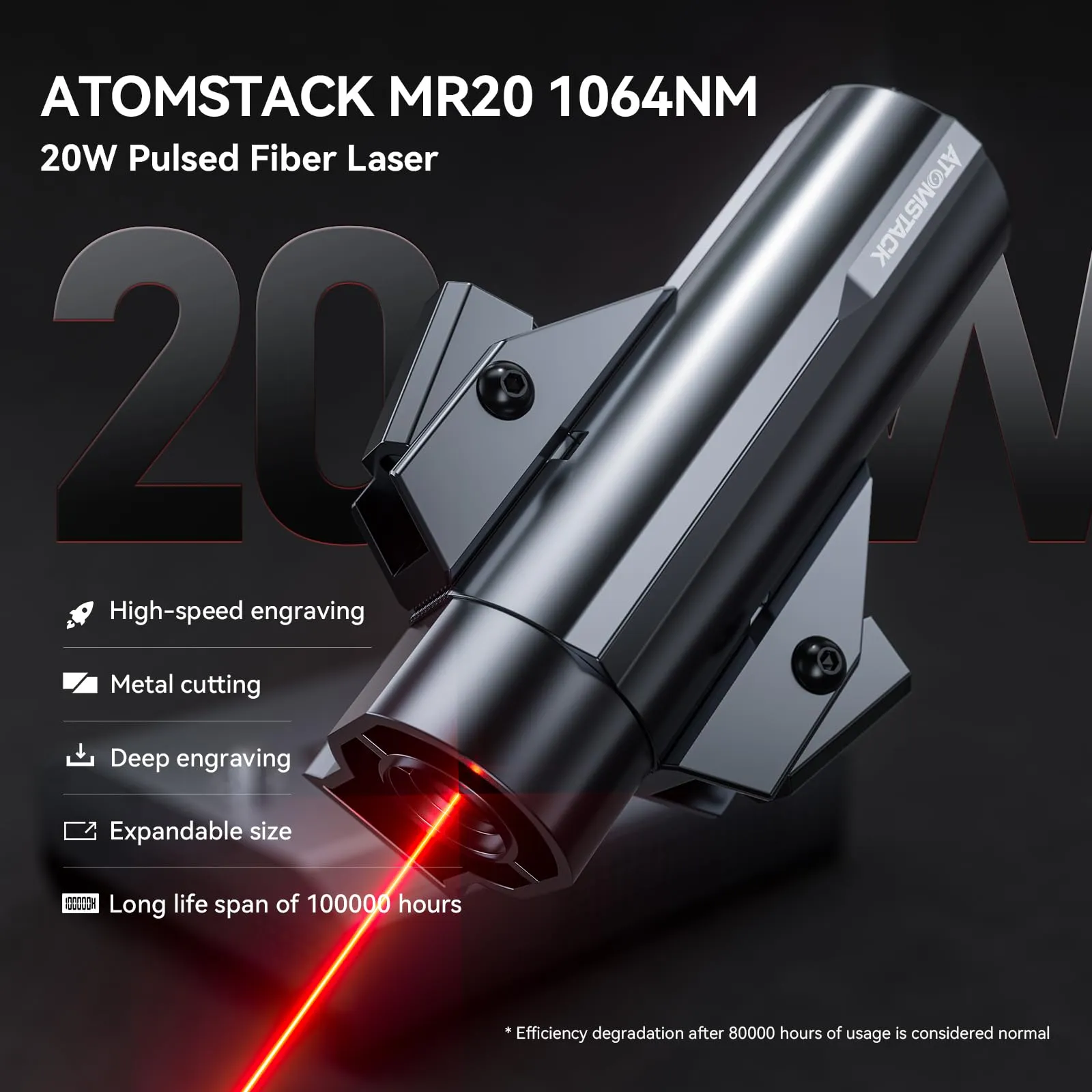

High performance and fibre line: The world's first pulse fibre infrared laser module with a wavelength of 1064 nm and an optical power of up to 20 W, which uses a Q switch main oscillator (photoelectric switch) and a high-performance fibre amplifier structure (MOPA). The energy transmission is via a fibre optic cable, which can greatly improve the efficiency of energy transmission and reduce energy transmission losses.

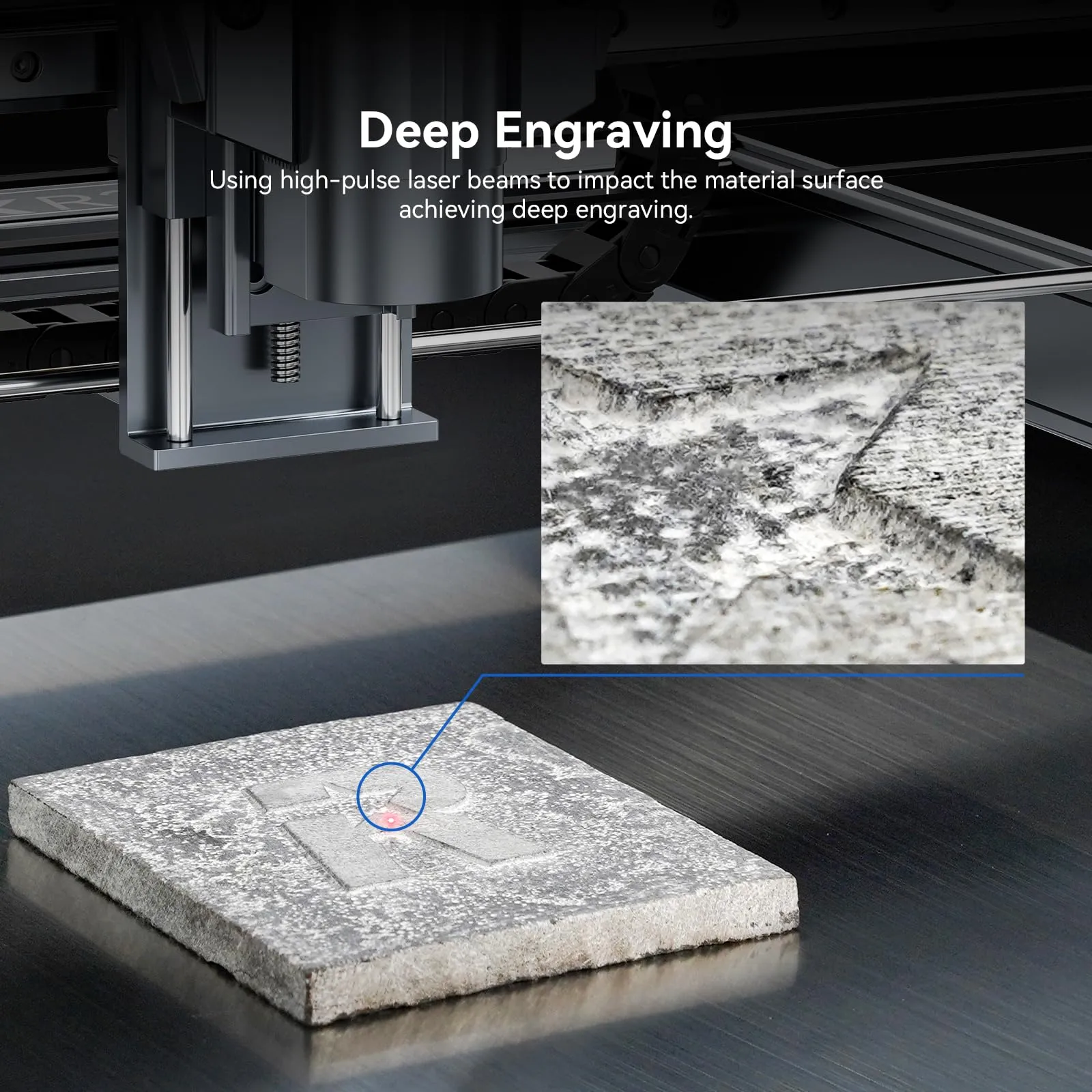

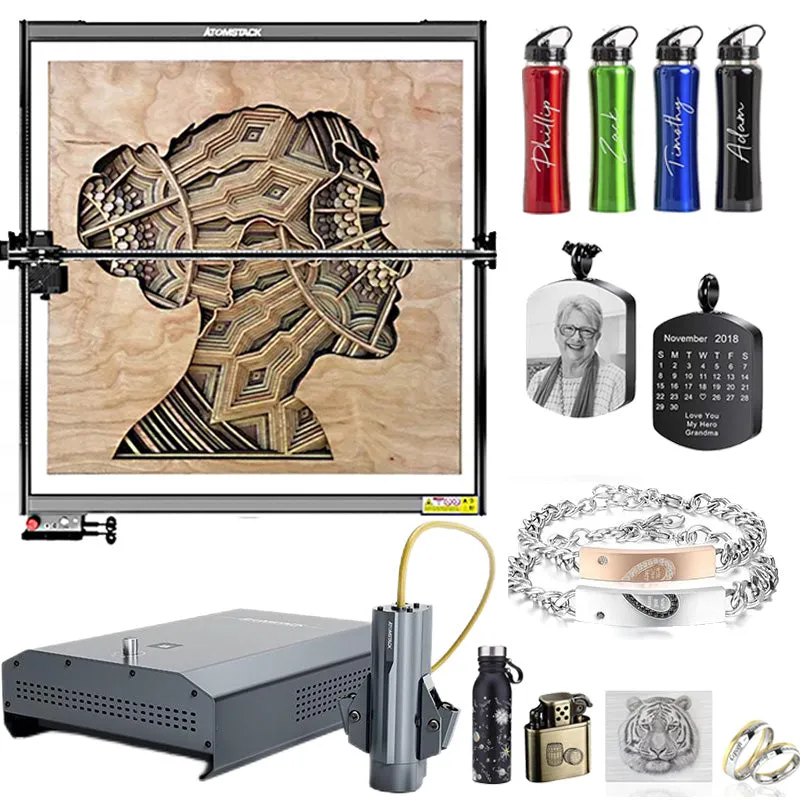

Applicable to multiple materials The MR20 laser module is suitable for high-speed and fine engraving on all common metals(copper, iron, aluminium, zinc, silver, etc.) and plastics. It can also be used for engraving on black acrylic, leather,ceramics and stones. Deep cutting: the 1064nm infrared laser is very suitable for deep engraving on clean stone slabs and shows relief effects

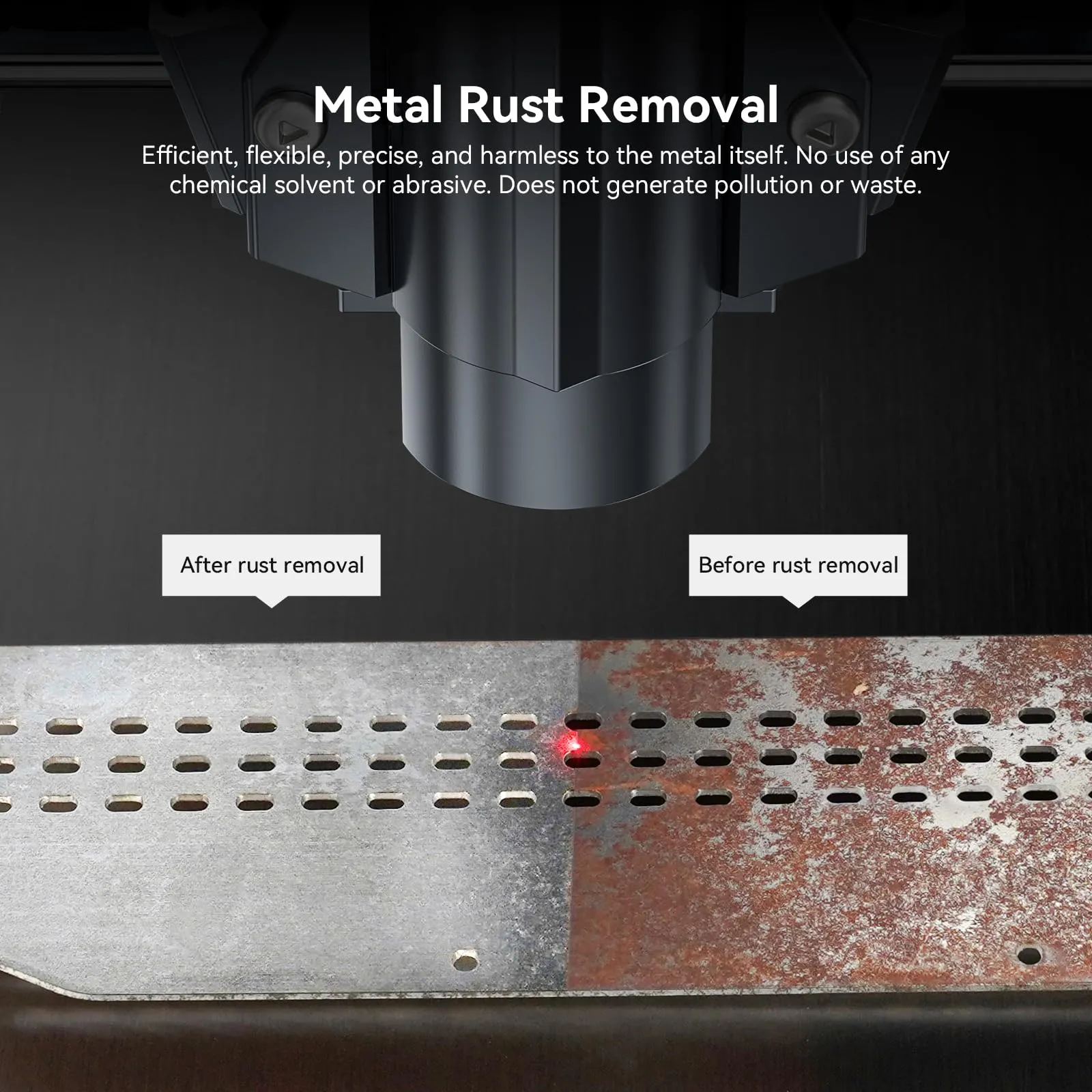

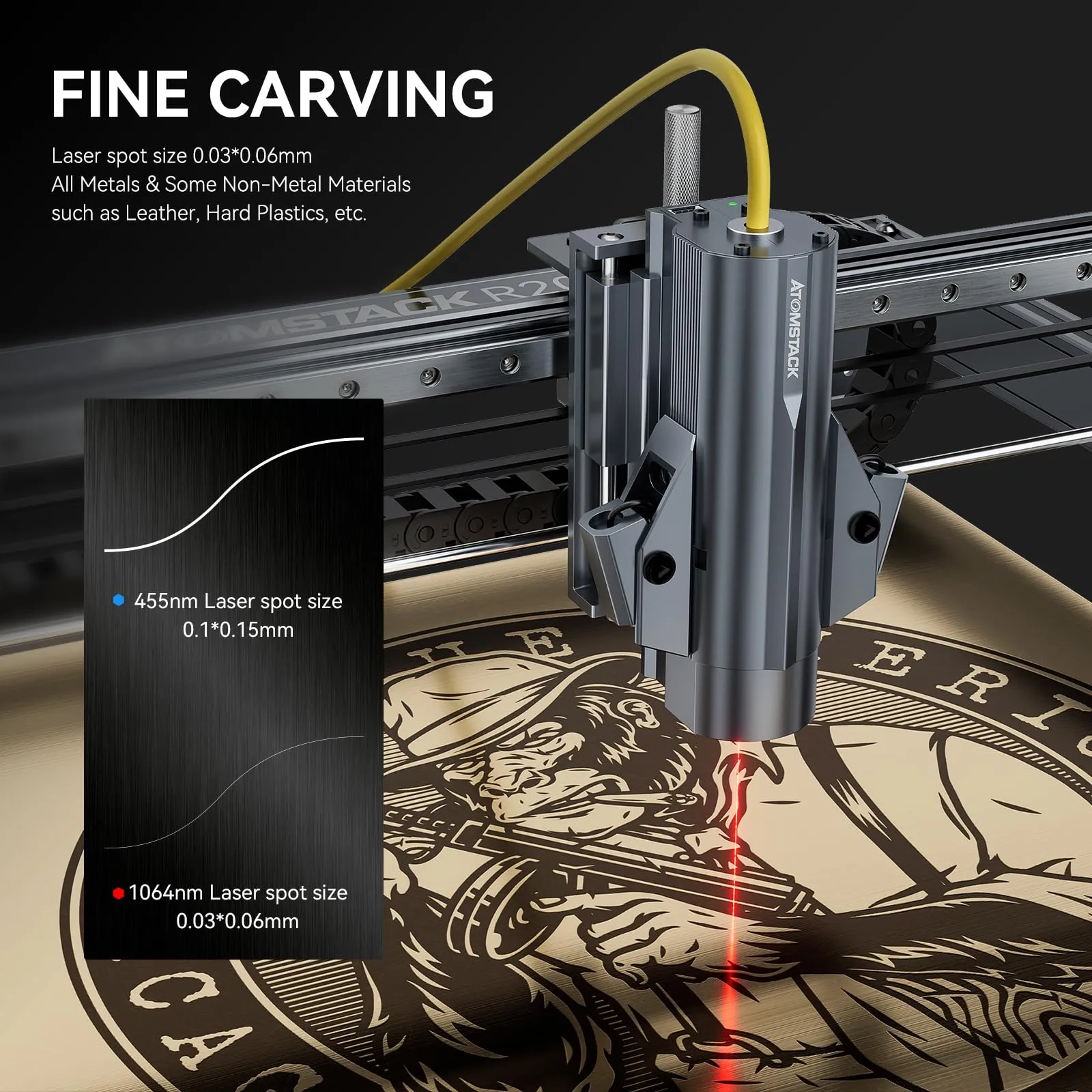

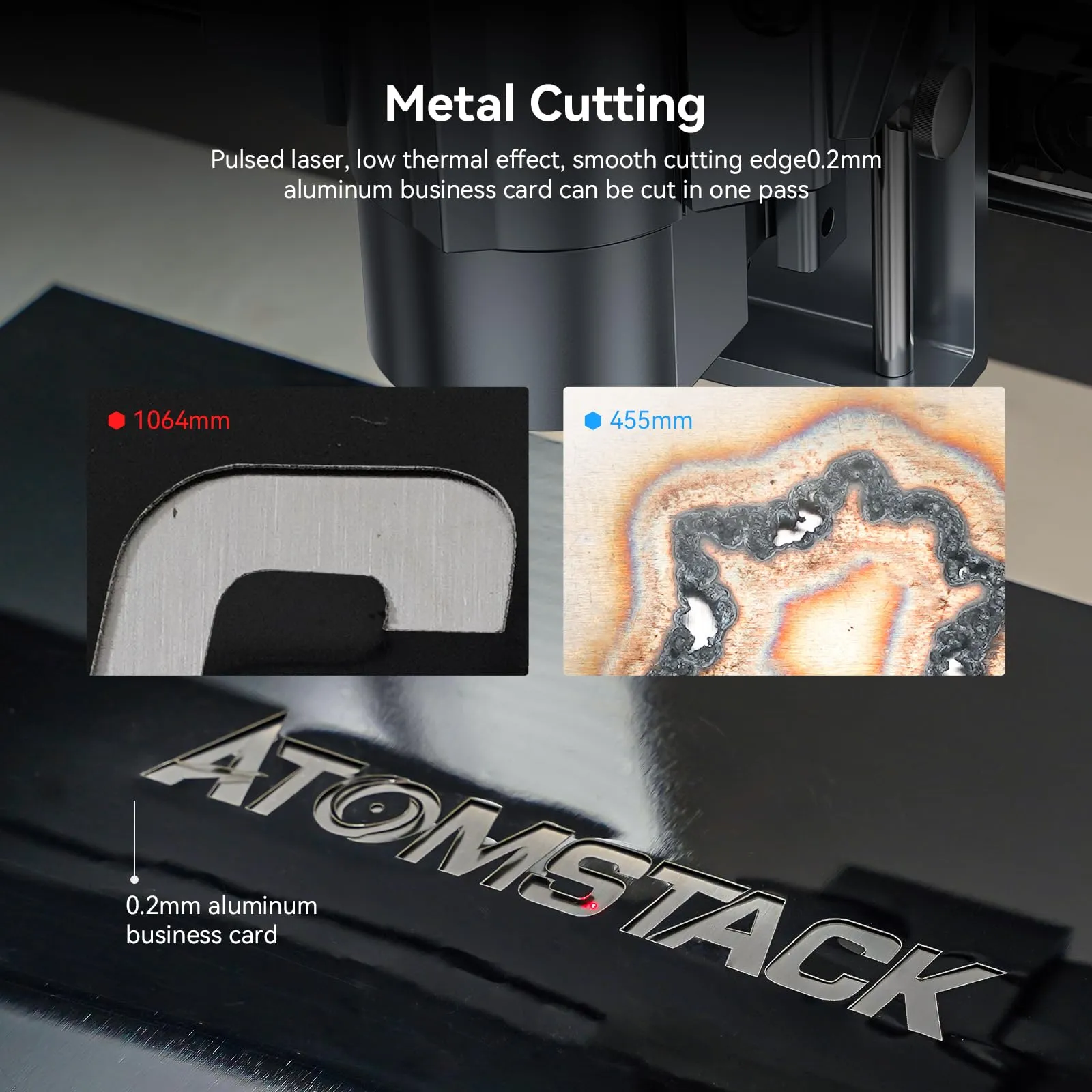

Metal cutting and laser rust removal: With a powerful power of 20 W and an ultra-fine light spot of 0.03 x 0.06, the MR20 fibre laser module can easily cut 0.2 mm thick aluminium business cards in one pass and can cut 0.5 mm thick brass sheets several times. The MR20 laser with a wavelength of 1064 nm is very suitable for removing rust on metal surfaces and can quickly remove metal by laser.

Adapted Lightburn control motherboard: For control by the Lightburn software, MR20 module has adapted a special control motherboard for the infrared laser module. It can adjust the laser power by exposure to light and adjust the pulse rate with the rotary knob, which greatly improves work ease.

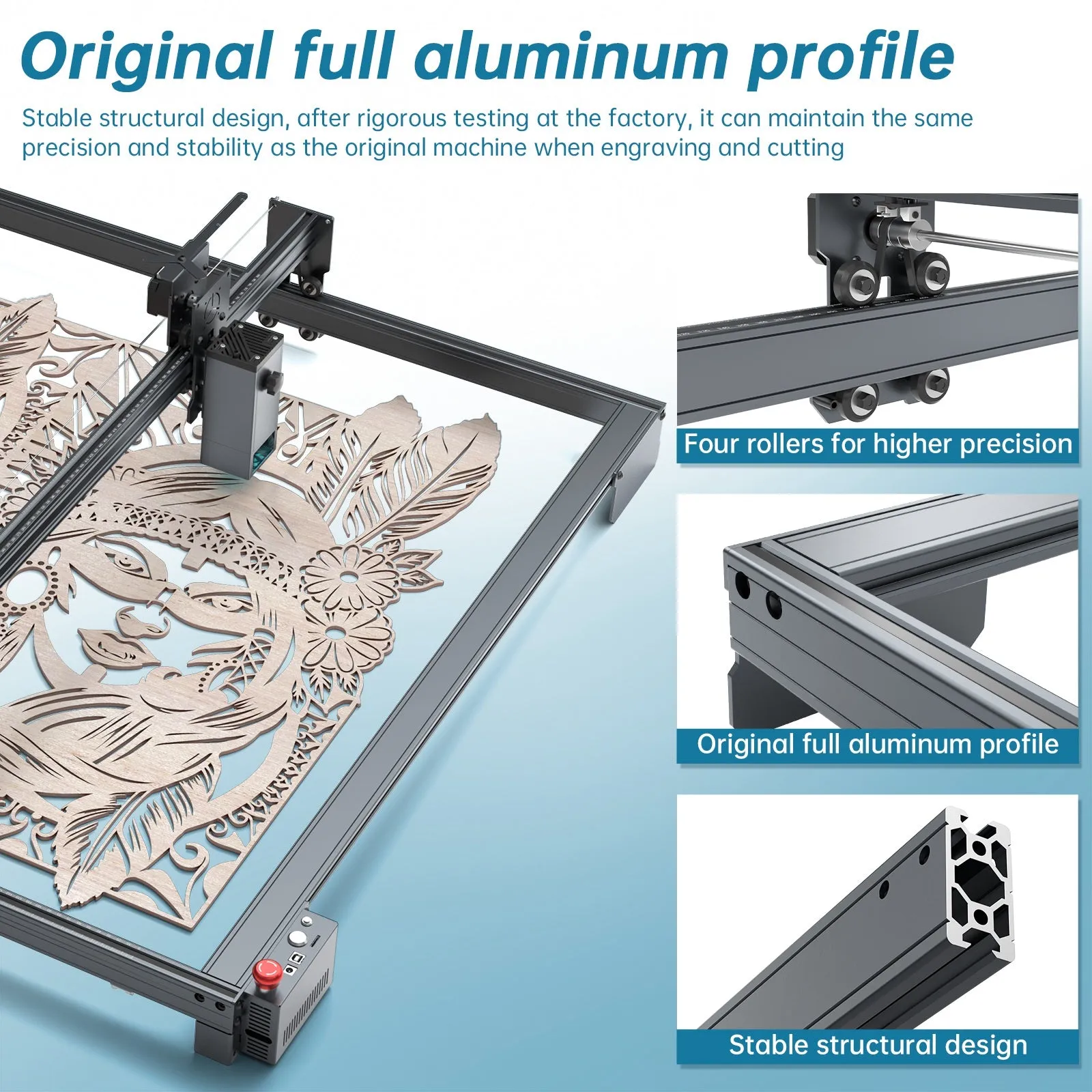

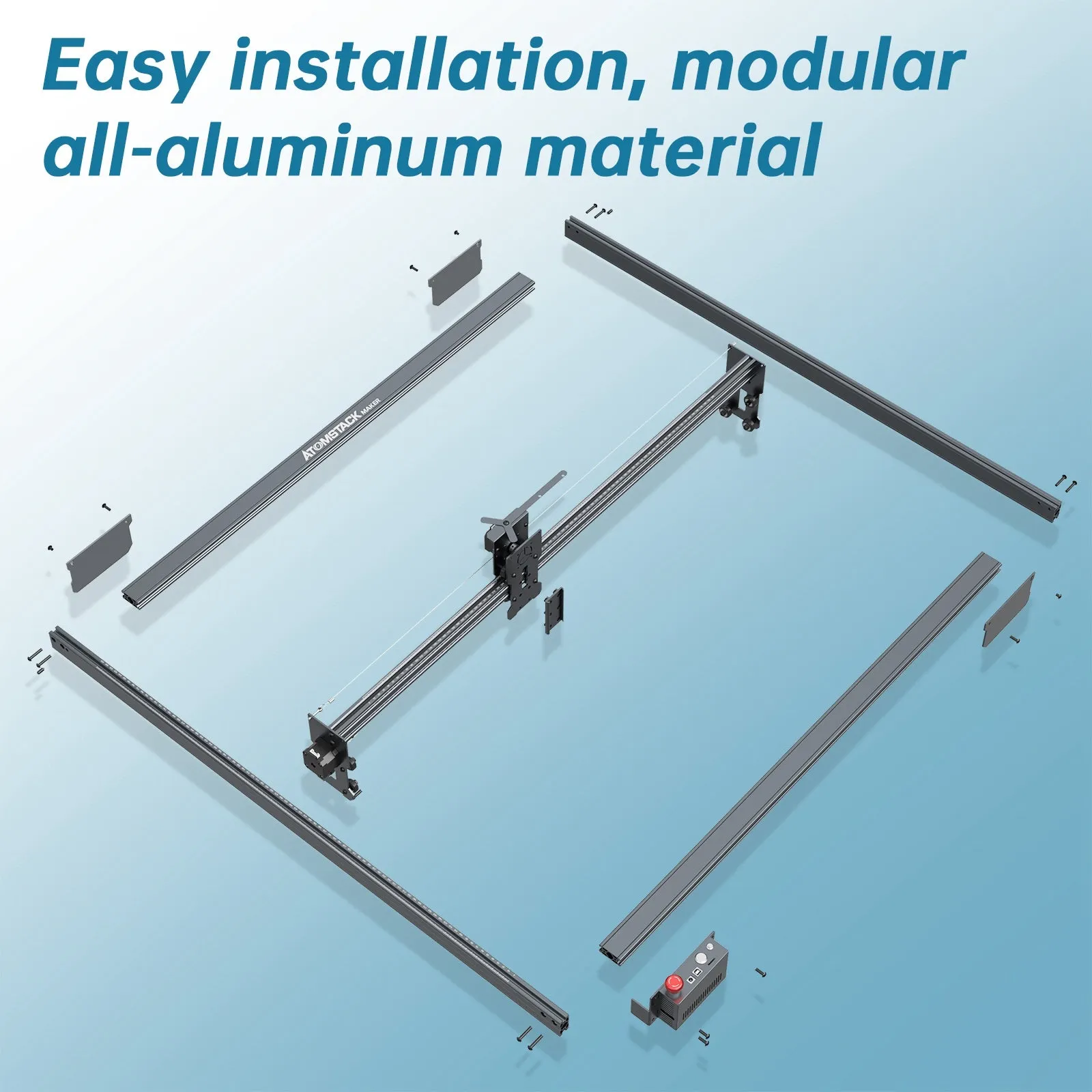

High adaptability: The MR20 module can be quickly installed and adapted to all ATOMSTACK laser engraving machine frames and can extend the working area to 850 x 800 mm
