Overview

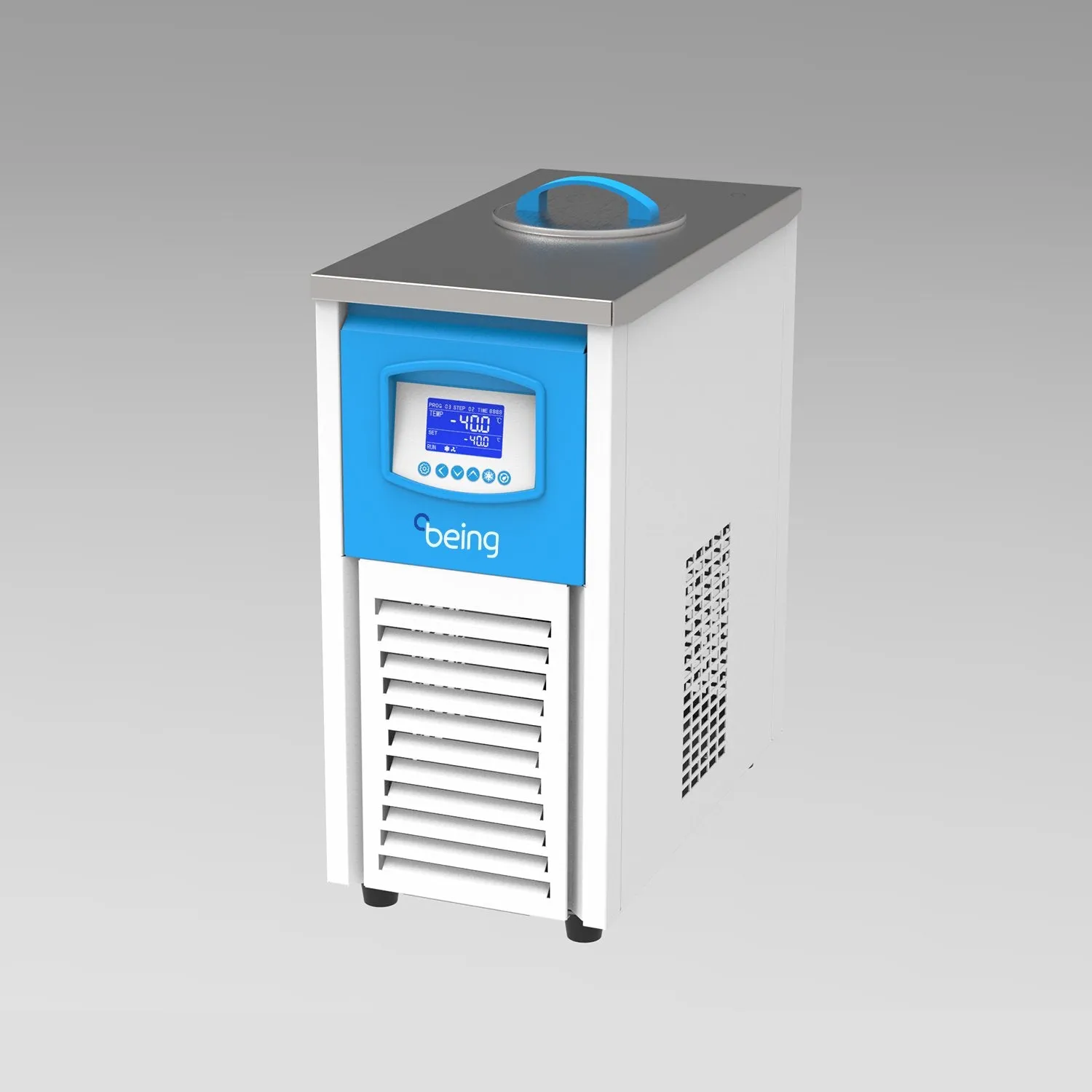

The BEING BRC Series cooling/heating recirculating chillers provide continuously
reliable and stable laboratory temperature control for a wide range of applications
like medical diagnostic equipment, rotary evaporators, vacuum systems, plasma
etching, laser etching, and jacketed reactors, to name a few.
Features:
- Designed so that test results are in line with international standards DIN 12880.
- PID temperature controller with LCD screen provides accurate and reliable temperature control.
- Automatic calibration function, be able to adapt to a variety of laboratory environments.
- Wide range of options to meet a variety of experimental needs.
- Temperature/Capacity/Liquid Flow/Pressure/Control Mode/Internal Circulation/External Circulation.
- Convenient design for easy maintenance
- Round curved inner angle is easy to clean.
- Inner chamber is made from corrosion-resistant mirror stainless steel.
- Preset On/Off function.
- Built-in power interruption protection function, automatic run after power interruption.
- Independent over-temperature protection meets DIN 12880 International standard requirements.
- Temperature deviation alarm.
- Over-current protection alarm.
Key Attributes
| Type | Chillers |
| Incubation | No |
| Refrigeration | Yes |
| Temp Range (°C) | ﹣20℃～20℃ |
| Capacity (L) | 3.5L |
| Circulation | External Only |
| Brand | Being |
| MaxFlow Rate (l/min) | 10 |
| Temp Stability (°C) | ±2°C |
| Timer | No |
| Alarms | Yes |
| Digital or Mechanical | Digital |
| Data connection | N/A |
| Tank Material | Stainless Steel |
| Sample Agitation | No |
| Media Racks Available | No |
| Warranty (years) | 2 |
| Weight (lb) | N/A |
| Width (in) | N/A |
| Depth (in) | N/A |
| Height (in) | N/A |
Manufacturer Specifications
|
Storage Tank (L) |
5 |
|
Liquid （L） |
3.5 |
|
Lowest Temp Without Load (℃) |
–20℃ |
|
Temperature Range (℃) |
–20℃ to 20℃ |
|
Temperature Stability (℃) |
±2℃ |
|
Cooling capacity（W）@20℃ |
580 |
|
Cooling capacity（W）@10℃ |
530 |
|
Cooling capacity（W）@0℃ |
470 |
|
Cooling capacity（W）@-10℃ |
300 |
|
Cooling capacity（W）@-20℃ |
100 |
|
Refrigerant |
R404A |
|
Whole unit power（W） |
550 |
|
Electrical Plug Type |
NEMA 5-15 |
|
Power Requirement |
115VAC / 60Hz |
|
Safety Features |
Delay, leakage, overcurrent, overvoltage |
|
Pump type |
DC Magnetic Drive Vortex |
|
Recirculating Pump Power（W） |
30 |
|
Pump Flow Rate（L/min） |
6 |
|
Max. Pump Head（m） |
9 |
|
Pump Max. Pressure (psi) |
13 (90KPa) |
|
Inlet/Outlet Tube OD（mm） |
Ø10 (DN15) |
|
Inlet/Outlet Fitting Type |
Push-to-connect |
|
Feet / Caster |
Feet |
|
Noise (dB) |
≤45 |
|
Net Weight（kg） |
32 |
|
Liquid tank Dimension（mm） |
240 x 150 x 150 |
|
Exterior Dimension（mm）(Excluding casters) |
230 x 450 x 511 |
|
Supported Rotavaps（Capacity x Units） |
2L x 1 |
|
SKU Number |
BRC15103U |
FAQ
The specifications show the lowest temperature without load for the BRC-03A Recirculating Chiller is -20°C, but also says it has 200 W cooling capacity at that temperature? Can it hold -20°C with a load on it?
Being states that under their testing the BRC-03A chiller is 60% efficient at -20°C, so it would be able to maintain -20°C with a load of no more than 120 W. -20°C will be the lowest temperature with or without load, as it is the lowest setpoint temperature for the chiller.
How is the power specification for the whole chiller lower than the maximum cooling capacity?
This specification is given as a normal operating power consumption. The actual power consumption will vary based on usage and may be significantly higher in demanding applications.
