Overview

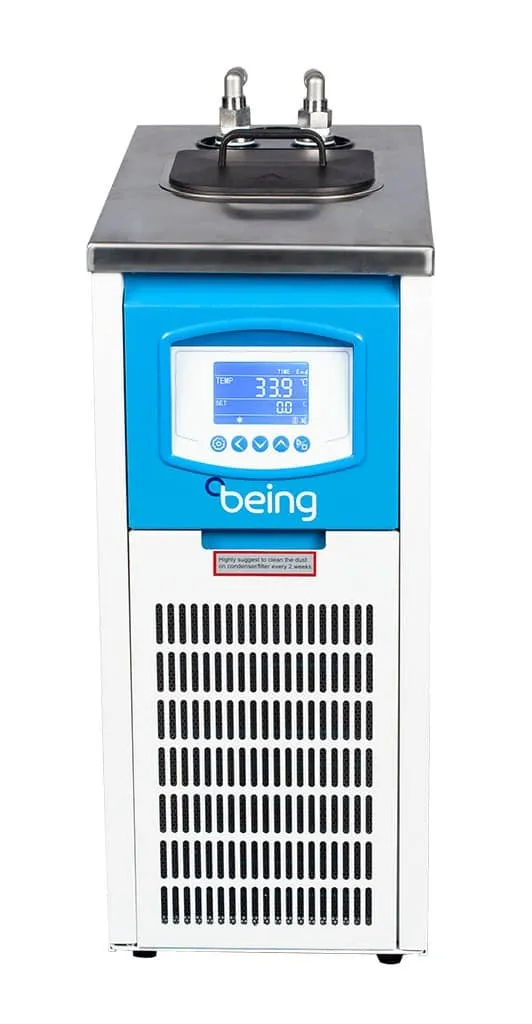

The BEING BRC Series cooling/heating recirculating chillers provide continuously
reliable and stable laboratory temperature control for a wide range of applications
like medical diagnostic equipment, rotary evaporators, vacuum systems, plasma
etching, laser etching, and jacketed reactors, to name a few.
Features:
- Designed so that test results are in line with international standards DIN 12880.
- PID temperature controller with LCD screen provides accurate and reliable temperature control.
- Automatic calibration function, be able to adapt to a variety of laboratory environments.
- Wide range of options to meet a variety of experimental needs.
- Temperature/Capacity/Liquid Flow/Pressure/Control Mode/Internal Circulation/External Circulation.
- Convenient design for easy maintenance
- Round curved inner angle is easy to clean.
- Inner chamber is made from corrosion-resistant mirror stainless steel.
- Preset On/Off function.
- Built-in power interruption protection function, automatic run after power interruption.
- Independent over-temperature protection meets DIN 12880 International standard requirements.
- Temperature deviation alarm.
- Over-current protection alarm.
Key Attributes
| Type | Chillers |
| Incubation | No |
| Refrigeration | Yes |
| Temp Range (°C) | ﹣20℃～20℃ |
| Capacity (L) | 5.2L |
| Circulation | External Only |
| Brand | Being |
| MaxFlow Rate (l/min) | 6 |
| Temp Stability (°C) | ±2°C |
| Timer | No |
| Alarms | Yes |
| Digital or Mechanical | Digital |
| Data connection | N/A |
| Tank Material | Stainless Steel |
| Sample Agitation | No |
| Media Racks Available | No |
| Warranty (years) | 2 |
| Weight (lb) | N/A |
| Width (in) | N/A |
| Depth (in) | N/A |
| Height (in) | N/A |
Manufacturer Specifications
|
Storage Tank (L) |
8 |
|
Liquid （L） |
5.2 |
|
Lowest Temp Without Load (℃) |
–20℃ |
|
Temperature Range (℃) |
–20℃ to 20℃ |
|
Temperature Stability (℃) |
±2℃ |
|
Cooling capacity（W）@20℃ |
900 |
|
Cooling capacity（W）@10℃ |
800 |
|
Cooling capacity（W）@0℃ |
730 |
|
Cooling capacity（W）@–10℃ |
570 |
|
Cooling capacity（W）@–20℃ |
250 |
|
Refrigerant |
R404A |
|
Whole unit power（W） |
600 |
|
Electrical Plug Type |
NEMA 5-15 |
|
Power Requirement |
115VAC / 60Hz |
|
Safety Features |
Delay, leakage, overcurrent, overvoltage (Put in all models) ( |
|
Pump type |
DC Magnetic Drive Vortex |
|
Recirculating Pump Power（W） |
30 |
|
Pump Flow Rate（L/min） |
6 |
|
Max. Pump Head（m） |
9 |
|
Pump Max. Pressure (psi) |
13 (90KPa) |
|
Inlet/Outlet Tube OD（mm） |
Ø10 (DN15) |
|
Inlet/Outlet Fitting Type |
Push-to-connect |
|
Feet / Caster |
Locking Casters |
|
Noise (dB) |
≤45 |
|
Net Weight（kg） |
41 |
|
Liquid tank Dimension（mm） |
240 x 200 x 170 |
|
Exterior Dimension（mm）(Excluding casters) |
315 x 455 x 624 |
|
Supported Rotavaps（Capacity x Units） |
5L x 1 |
|
SKU Number |
BRC15105U |
