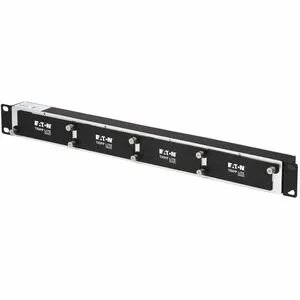

The Eaton Tripp Lite Series Enclosure Mini Panel for 4 Copper/Fiber Cassettes is an essential component for any modern data center or telecom environment. With its sleek and efficient design, this 1U mini panel offers the perfect solution for managing your connectivity needs, allowing you to maximize your rack space while supporting various types of copper and fiber connections. This product is ideal for small and medium enterprises looking for reliable and efficient data management solutions.

• High-Density Capability: The enclosure can accommodate up to four Tripp Lite N484-Series cassettes, allowing you to support an impressive 48 ports within a compact 1U space. This feature is perfect for maximizing your rack installation and ensuring that your network can handle increased demands.
• Versatile Compatibility: This mini panel is designed to house a variety of cassette types, including RJ45, SFP , LC duplex, and MTP/MPO fiber. Its adaptability makes it a perfect fit for different network setups, making it easier to integrate into your existing infrastructure.
• Passive Operation: As a fully passive enclosure, the N484-01U-MINI adds no heat or cooling load to your rack environment. This characteristic enhances energy efficiency and reduces the strain on your HVAC systems, translating into lower operational costs.
• Space-Saving Design: The compact design of this mini panel includes no protruding front door or rear cable management, allowing for better organization and easier access to your equipment. This ensures that your rack is not only neat but also functional, improving overall efficiency.
• Lifetime Limited Warranty: The Eaton Tripp Lite Series Enclosure Mini Panel is backed by a dependable Lifetime Limited Warranty. This guarantee ensures that your investment is secure and offers you peace of mind knowing that you are covered for years to come.

Technical Details of the Product

• Product Type: Mini Panel Enclosure
• Height: 1U
• Mounting Standard: EIA-standard 19-inch rack
• Supported Cassettes: RJ45, SFP , LC duplex, MTP/MPO fiber
• Maximum Ports: 48 within 1U chassis
• Weight: Lightweight, designed for easy installation
• Material: Heavy-duty steel for durability

How to Install

Installing the Eaton Tripp Lite Series Enclosure Mini Panel is a straightforward process. Follow these simple steps to ensure a successful installation:

1. Begin by identifying the location in your EIA-standard 19-inch rack where you wish to mount the enclosure.
2. Use the provided mounting screws to secure the mini panel to the rack rails firmly.
3. Once mounted, insert your selected copper and/or fiber cassettes into the panel, ensuring they are securely locked in place.
4. Connect the necessary cables to the cassettes, organizing them for optimal airflow and accessibility.
5. Finally, double-check all connections to ensure no cable stresses exist before securing your rack doors.

Frequently Asked Questions

• What types of cassettes can be used with the N484-01U-MINI? The enclosure supports RJ45, SFP , LC duplex, and MTP/MPO fiber cassettes from the Tripp Lite N484-Series.
• Can I use this mini panel in a high-density environment? Yes, the N484-01U-MINI is specifically designed for high-density telecom and data center environments.
• Does this enclosure require additional cooling? No, since it is a fully passive enclosure, it adds no heat or cooling load to your rack.
• Is there a warranty on this product? Yes, the Eaton Tripp Lite Series Enclosure Mini Panel is covered by a Lifetime Limited Warranty.
• How many ports can I connect in total? You can connect up to 48 ports within the 1U chassis using four compatible cassettes.
