Features:

Control Central Heating and/or Cooling Systems, Fan Coil Systems, Radiators and Convectors
Depending on the Model Selected, the Actuator Can be Controlled by Either a Low or Line Voltage SPST or SPDT Controller Such as a Room Thermostat
Use with Two-Way or Three-Way Valves
Minimal Actuator Power Consumption
Quick-Connect or One Meter Cable Electrical Connections Available
Quick and Easy Replacement of Moving Parts
Actuator Head Installation Does Not Require Draining the System
Use 2-Position Actuators with 1000 Series 2 Way and 6000 Series 3-Way Vc Valve Bodies Only
All Vc Series Actuator-Valve Combinations Provide 60 PSI Close-Off

Specifications:

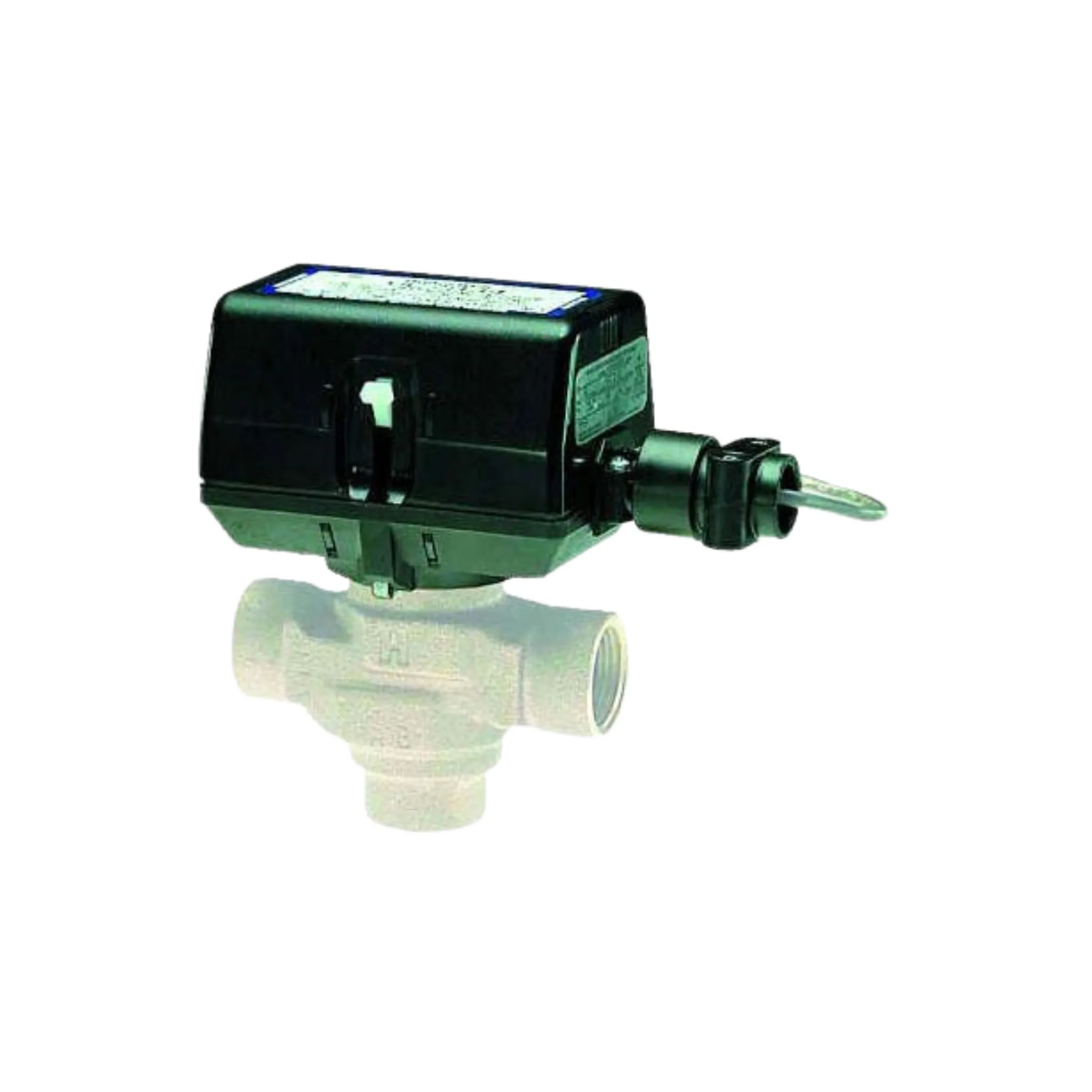

Manufacturer: Honeywell
Manufacturer Part Number: VC8714ZZ11
Product Type: Valve Actuator
Operation Type: Lever
Voltage Rating: 24 VAC
Maximum AC Voltage: 24 V
Frequency Rating: 60 Hz
Power Rating: 6 VA (Driving)
Enclosure: IP40
Supply Connection Size: 5 Ft. Color Coded Plenum Cable
Body Material: Plastic
Operating Temperature: 32 to 150 Degrees F
Differential Pressure Rating: 60 PSID
Timing: 6 Second
Dimensions: 4.7" x 6" x 3.45"
Weight: 1.03 lb.
Includes: Flexible Conduit Adapter, Auxiliary Switch
