SKU: USB-0705-U2

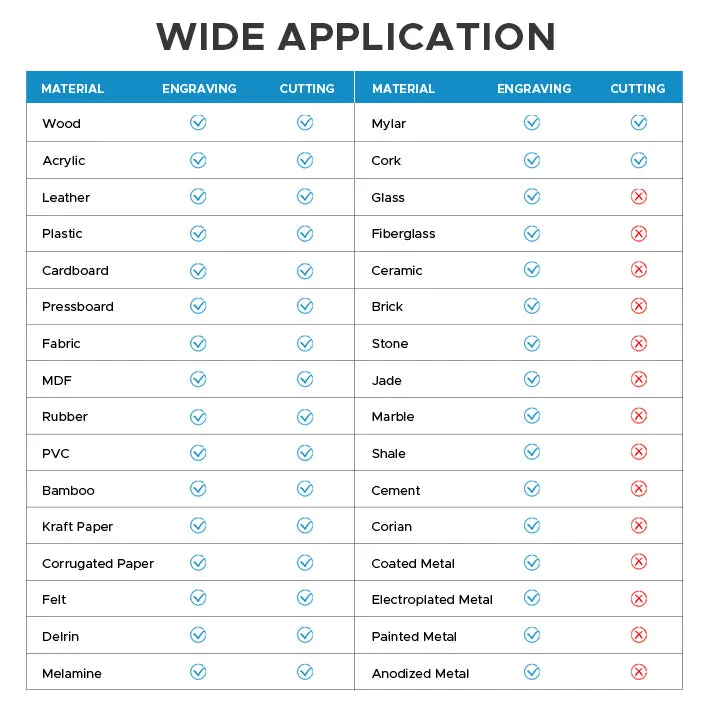

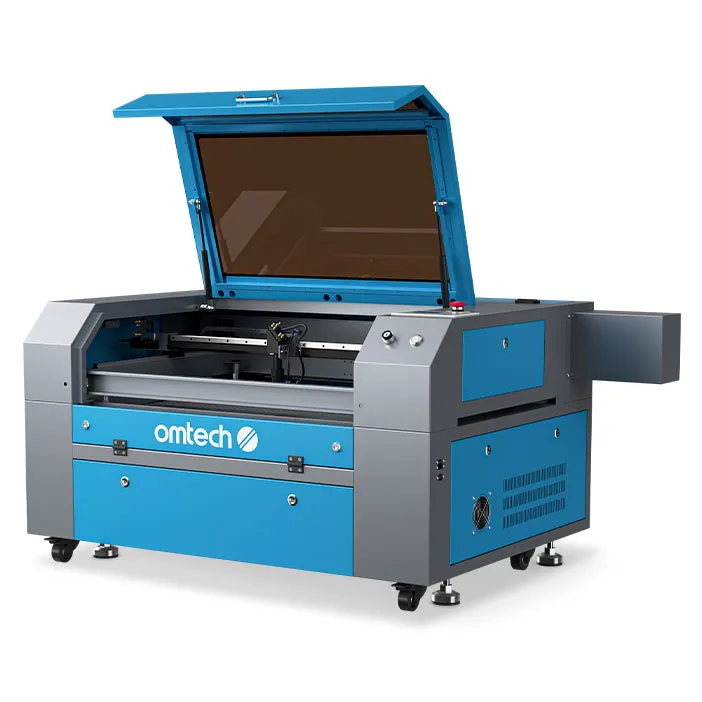

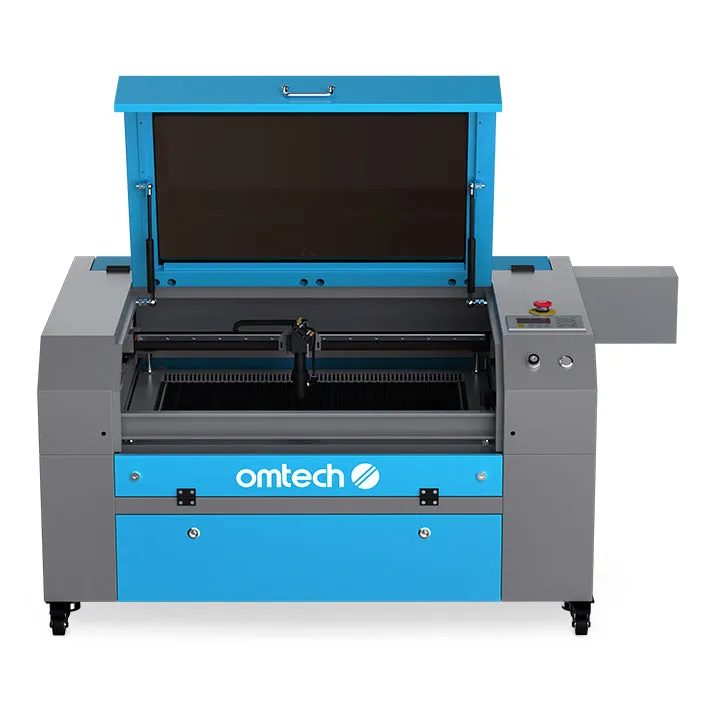

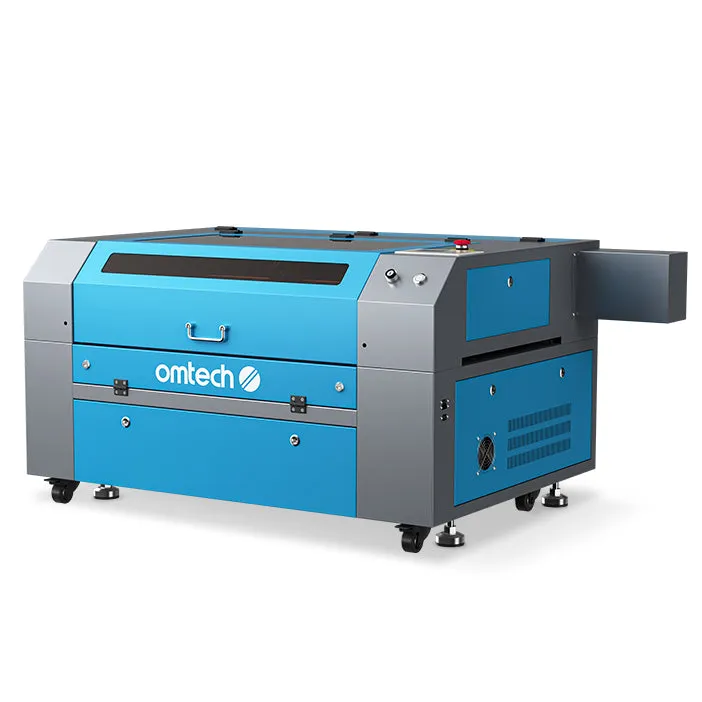

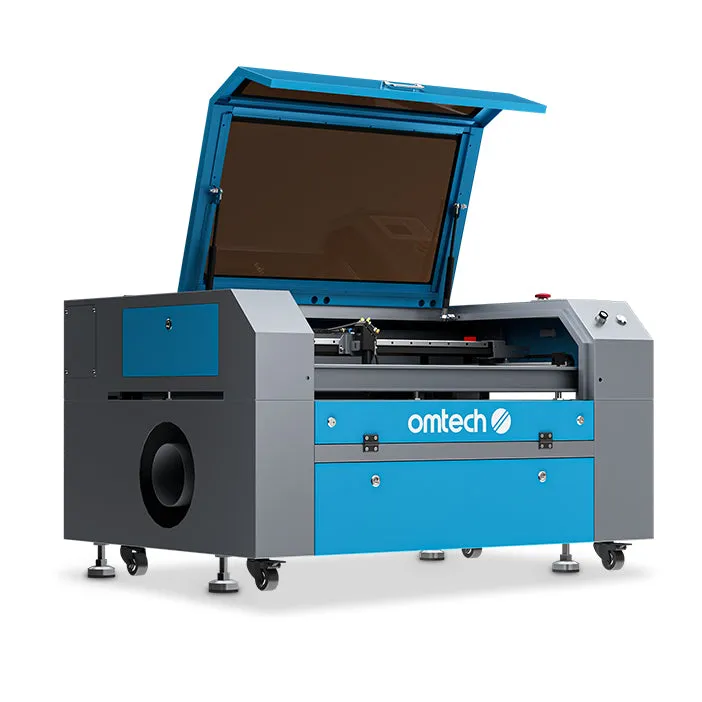

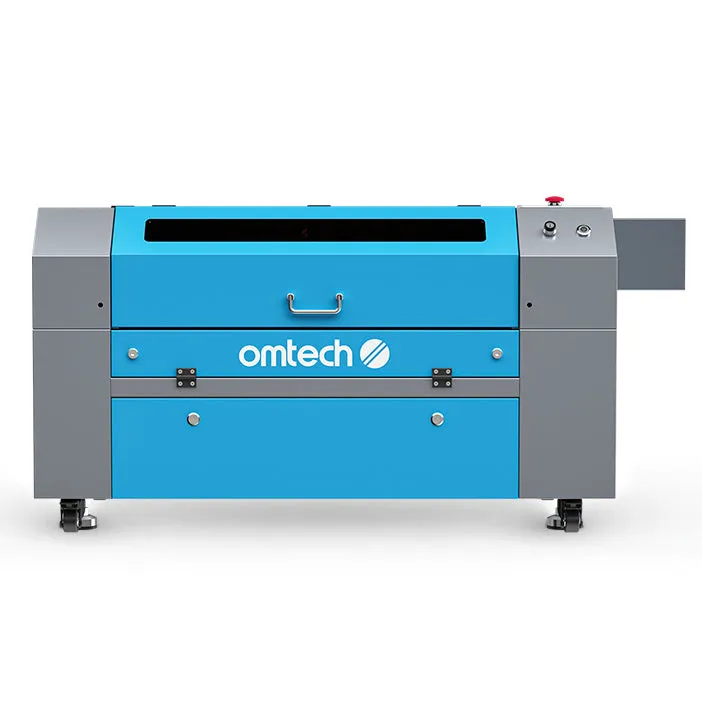

This 80W CO2 laser engraver continues to uphold our high standards with its dual 20x28 inch workbeds, long-lasting laser tube, efficient exhaust system, and front, back, and side pass through doors that allow large pieces to be worked on. It provides precise engraving on a variety of nonmetallic materials including wood, glass, acrylic, leather, fabric, cardboard, and more at speeds up to 23.6 ips, creating stunning personalized designs for home decoration, event celebrations, and business production. Safe as can be, this laser engraver and cutter can lock its control panel via password and the included keys; automatically cuts off the laser beam if the protective cover is opened; and provides an installed air assist to blow debris clear of the laser as it is created. When your work is done, just unlock the casters and wheel it anywhere you want for easy storage and quick transport.
With OMTech's precision engineering, quality materials & assembly, and good name, you can do no better for all your marking, engraving, and cutting projects at home or in your workshop.

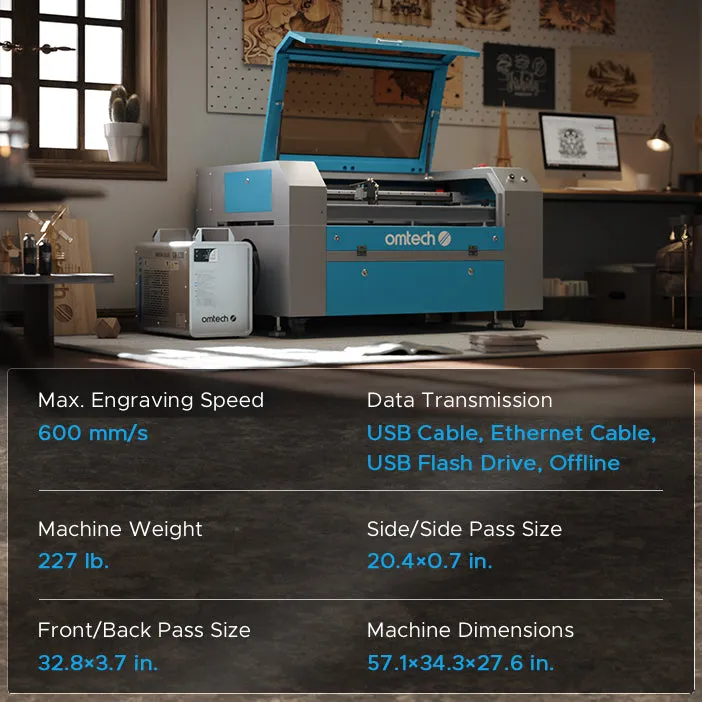

Specifications
Color: Blue, Gray
Dimensions: 57.1 x 34.3 x 27.6 in. (145x87x70 cm)
Engraving Area: 20 x 28 in. (500x700 mm)
Front & Back Pass-Through Size: 32.8 x 3.7 in. (835x95 mm)
Side to Side Pass-Through Size: 20.5 x 0.8 in. (520x20 mm)
Rated Power: 80W
Est. Service Life: 12,000 hr.
Max. Engraving Speed: 23.6 ips (600 mm/s)

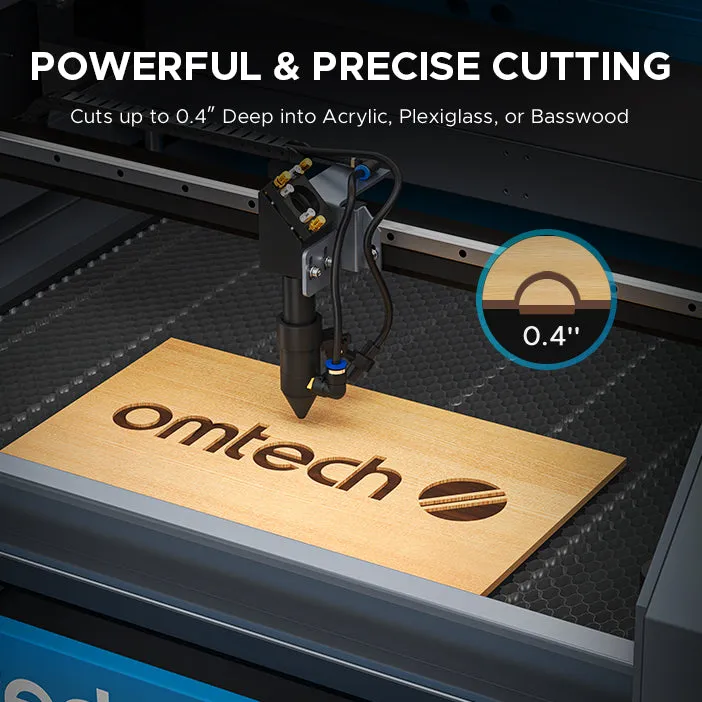

Max. Engraving Depth: 0.4 in. (10 mm)
Laser Tube Length: 49.2 in. (1250 mm)
Laser Tube Diameter: 2.4 in. (60 mm)
Compatible Operating Systems: Windows 2000, XP, Vista, 7, 8, 10

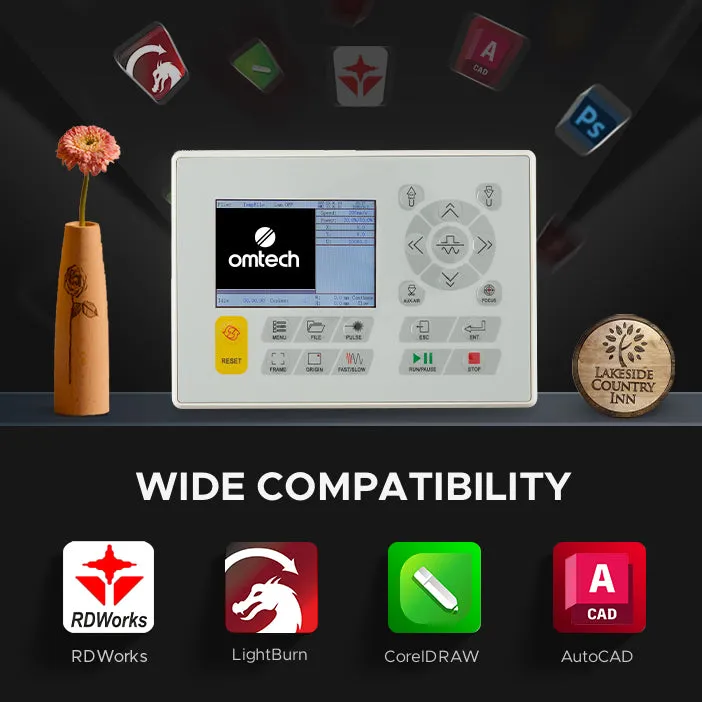

Bundled Software: RDWorks

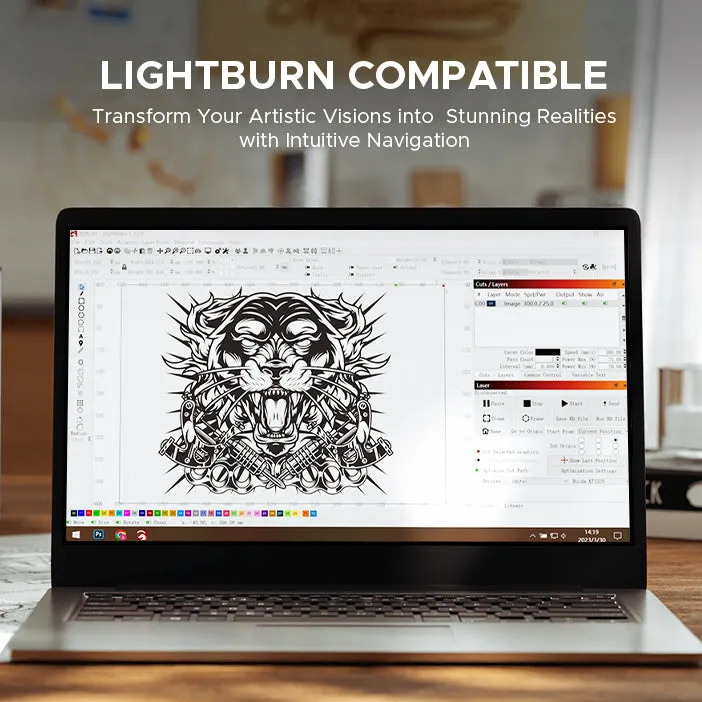

Compatible Software (not incl.): LightBurn, CorelDRAW, AutoCAD
Supported Image Formats: .ai, .bmp, .dxf, .gif, .hpgl, .jpeg, .pdf, .plt, .png, .rd, .svg, .tiff, .tga
Data Transmission: USB Cable, Ethernet Cable, USB Flash Drive, Offline
Certification: CE, FDA
Net Weight: 227.1 lb. (103 kg)
Warranty: 2 Years (1 Year for Parts)
Package List
1x 80W CO2 Laser Engraver
1x Power Cord
1x USB Flash Drive
1x USB Cable
1x Ethernet Cable
1x Double-Sided Tape
1x Wrench Set
1x Tube of Silicone Insulation
1x Ceramic Resistor
1x Exhaust Pipe
1x Pipe Clamp
1x Water Pump
2x Water Pipes
1x Wire Set
6x Keys
1x User Manual
FEATURES
- Design, Engrave, & Impress: OMTech's 80W CO2 laser engraver engraves as deep as 4" on various nonmetallic materials such as wood, glass, acrylic, leather, and more. With speeds up to 23.6 ips, it transforms your artistic visions into realities that draw wows and aahs.

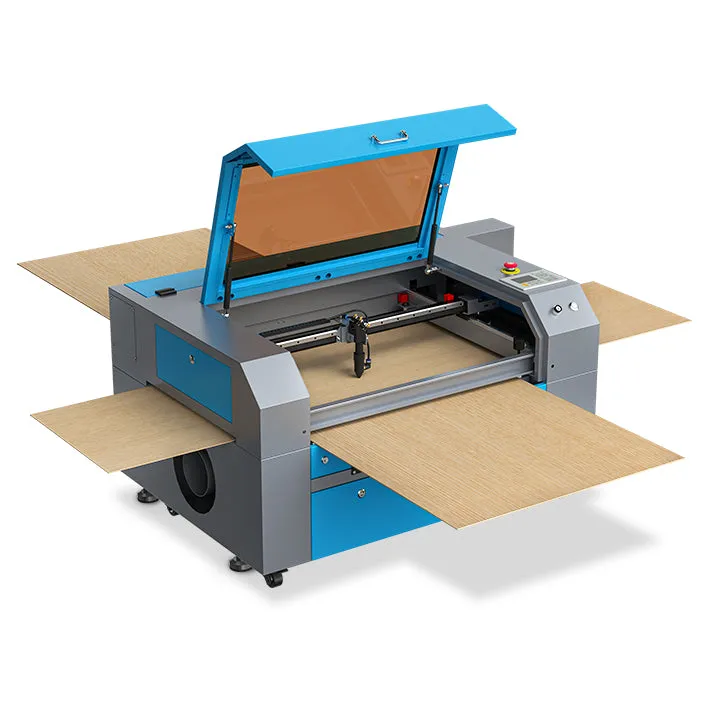

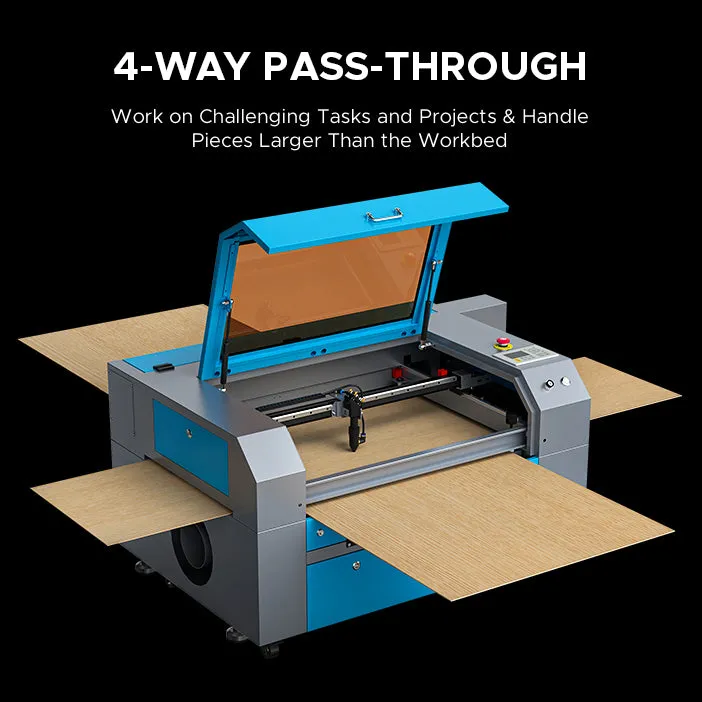

- Handle Large Items with Ease: The honeycomb and aluminum blade beds feature a 20"x28" work area to fit most projects. The four-way pass-through doors make it a breeze to accommodate larger and longer items.
- Dive into Work with Confidence: The high-performance Yongli H2 tube delivers 80W of power for up to 8000 hours of usage and extends its lifespan when consistently used at lower settings.

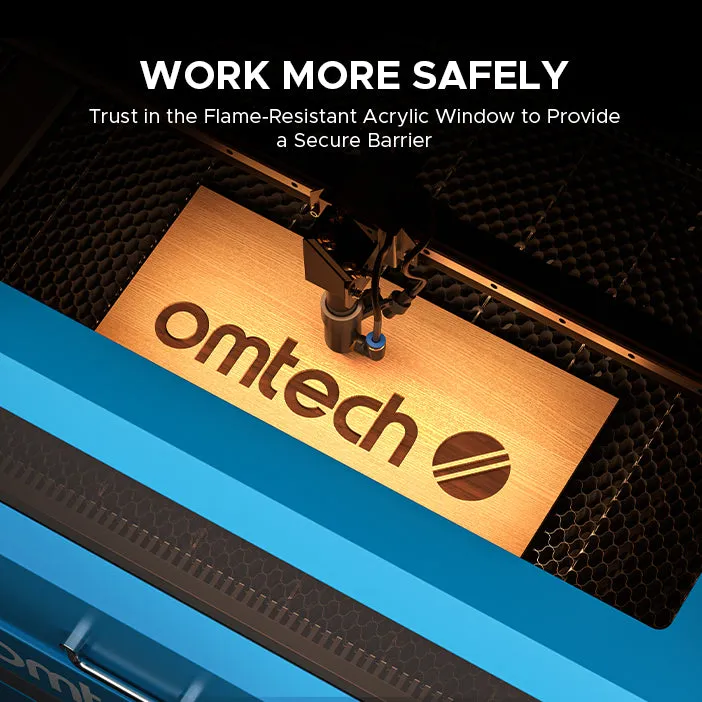

- Enhanced Safety Features: The widened viewing window is made from flame retardant material to ensure lasting safe use, while the cover interlock automatically cuts the laser beam if the window is opened.

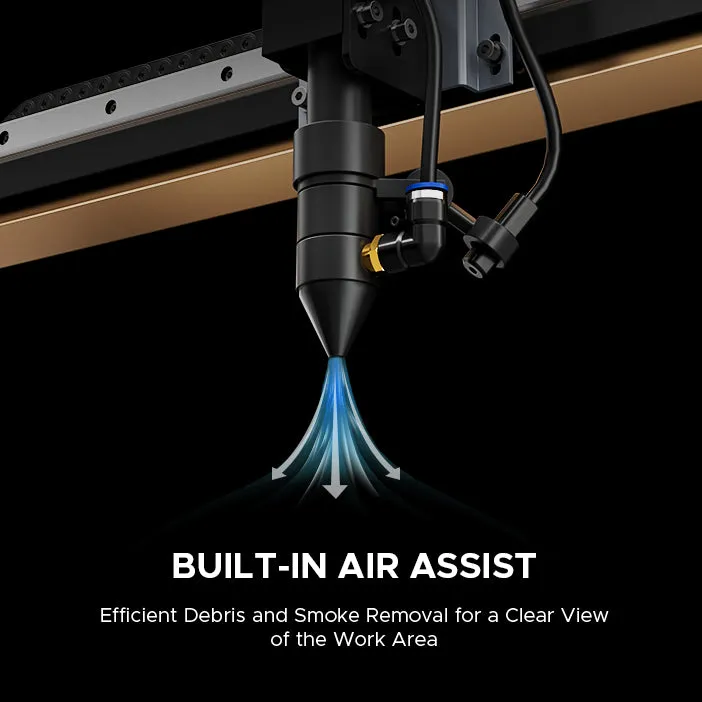

- Experience Clean Laser Engraving: The built-in air assist efficiently removes smoke and dust to protect your laser lenses and reflective mirrors.
- Enjoy US-Based Support & Service: OMTech is dedicated to providing quality engraving available to all, from garage artists to backyard businesses and professional workshops; order your own engraver today and enjoy fast US-based shipping, a strong 2 year general warranty (1 year for tube & power supply), and ever helpful customer service and tech support.
