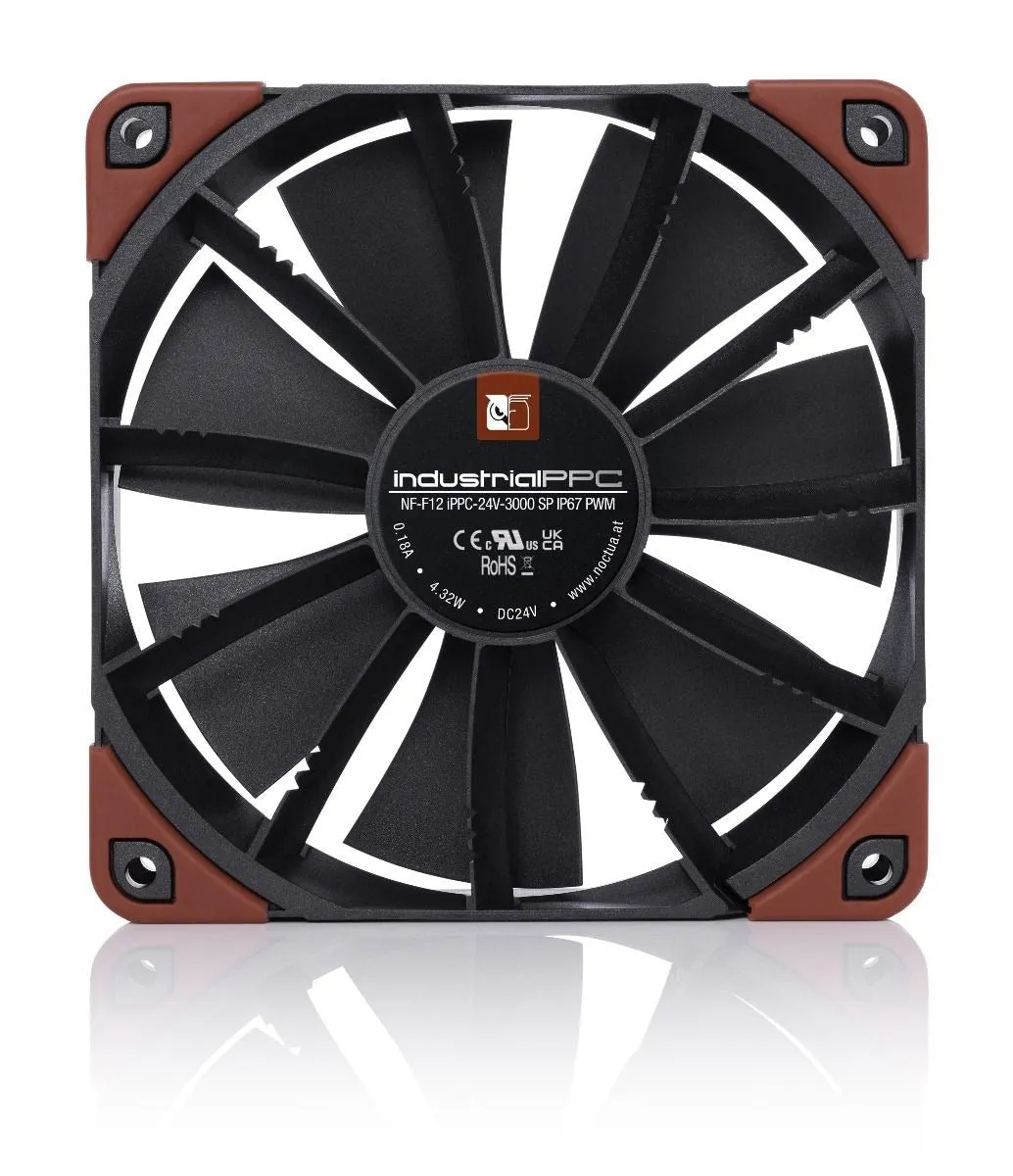

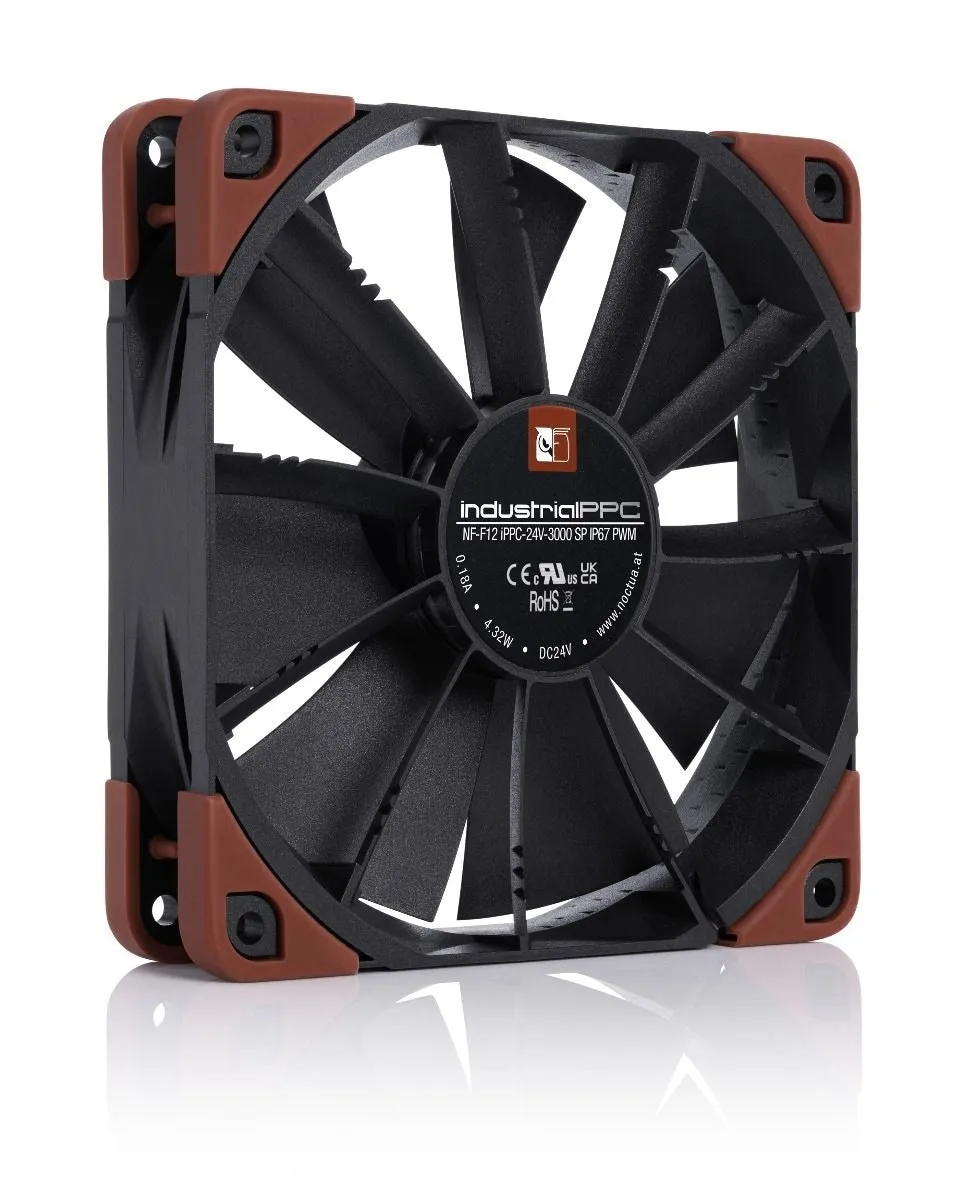

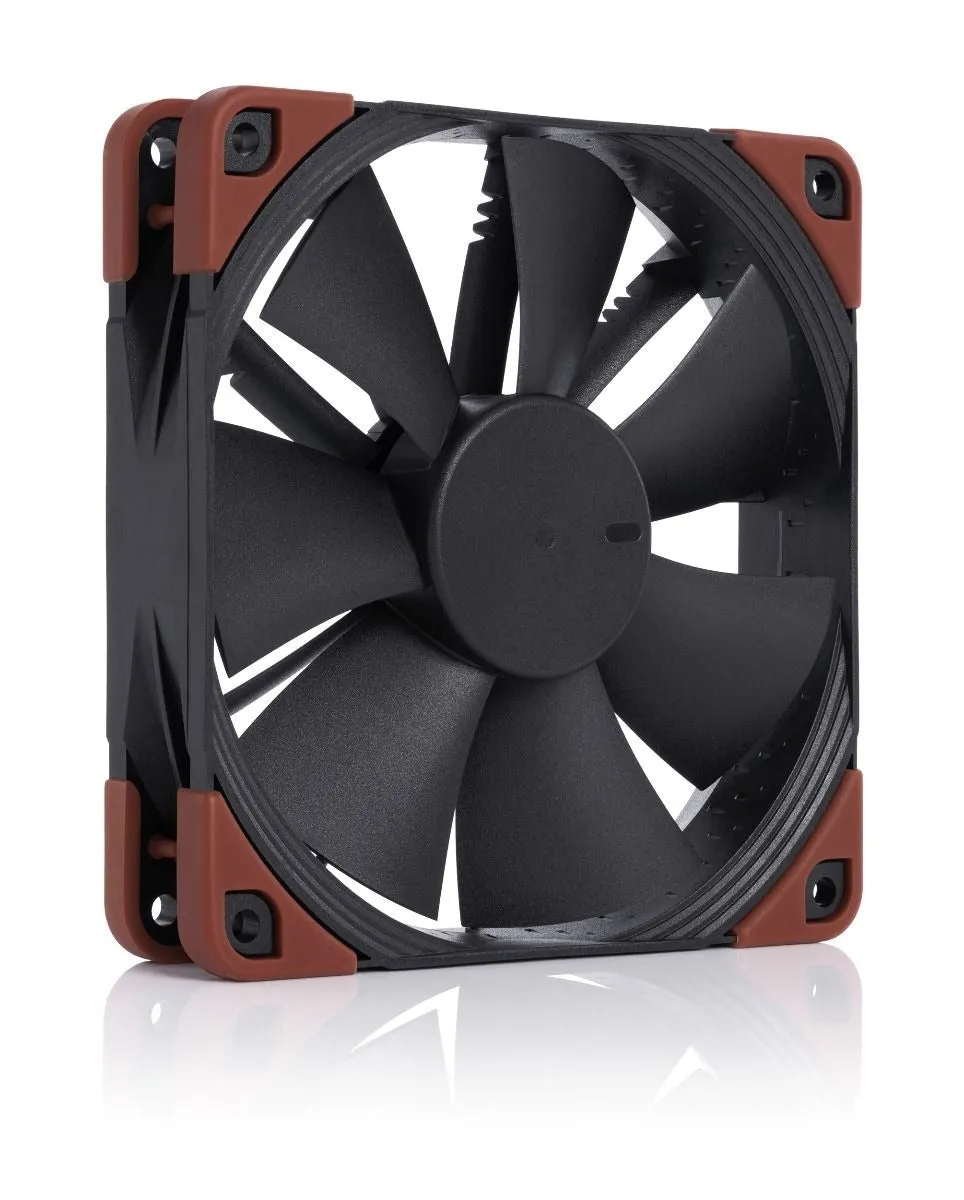

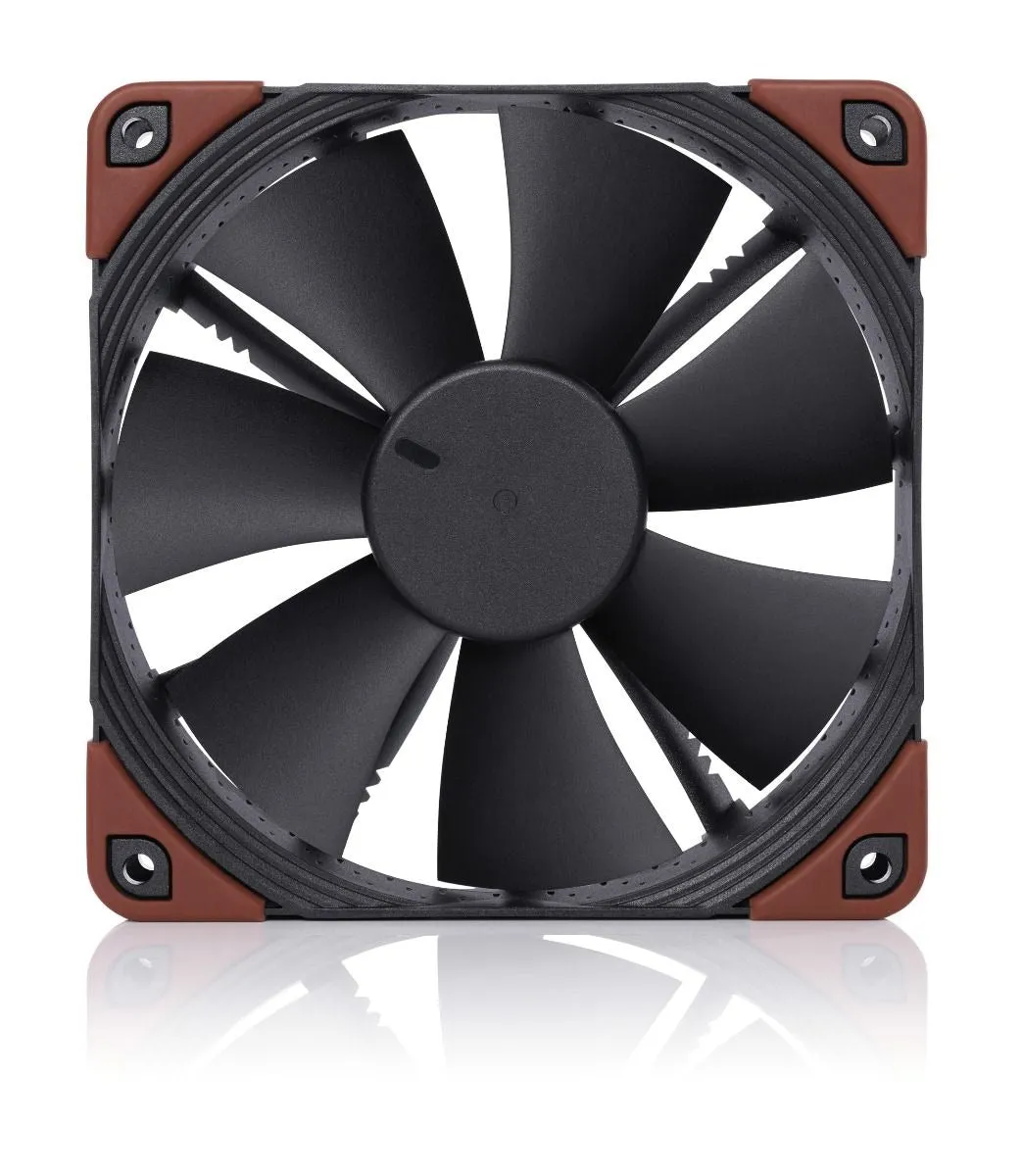

Noctua NF-F12 iPPC SP 24V 3000RPM PWM IP67 120mm Fan

840556075479

The Noctua NF-F12 iPPC SP 24V 3000RPM PWM IP67 120mm fan is a high-performance cooling fan designed for industrial applications. It features a PWM (pulse width modulation) control for speed regulation, operates at a maximum speed of 3000 RPM and is rated for 24V DC power. The fan is also IP67 rated, meaning it is dust and water resistant, making it suitable for use in harsh environments. The 120mm size makes it a suitable choice for cooling larger components or systems.

PRODUCT SPECIFICATIONS:

• Dimensions: 120x120x25 mm
• Mounting Hole Spacing: 105x105 mm
• Connector & Pin-configuration: 4-pin PWM
• Cable length: 40cm
• Bearing: SSO2
• Blade Geometry: Heptaperf™
• Frame Technology: FocusedFlow™
• Material: Fibre-glass Reinforced Polyamide
• Ingress Protection: IP67
• Motor Type: Single-phase
• Rotational Speed ( /- 10%): 3000 RPM
• Min. rotational speed @ 20% PWM ( /-20%): 750 RPM
• Rotational Speed @ 12V ( /- 10%): 1600 RPM
• Airflow:  186.7 m³/h
• Acoustical Noise: 43.5 dB(A)
• Static Pressure: 7.63 mm H₂O
• Input Power (Max.): 4.32 W
• Input Current (Max.): 0.18 A
• Operating Voltage: 24 VDC
• Voltage PWM Signal: 5 VDC
• MTTF >: 150,000 Hours

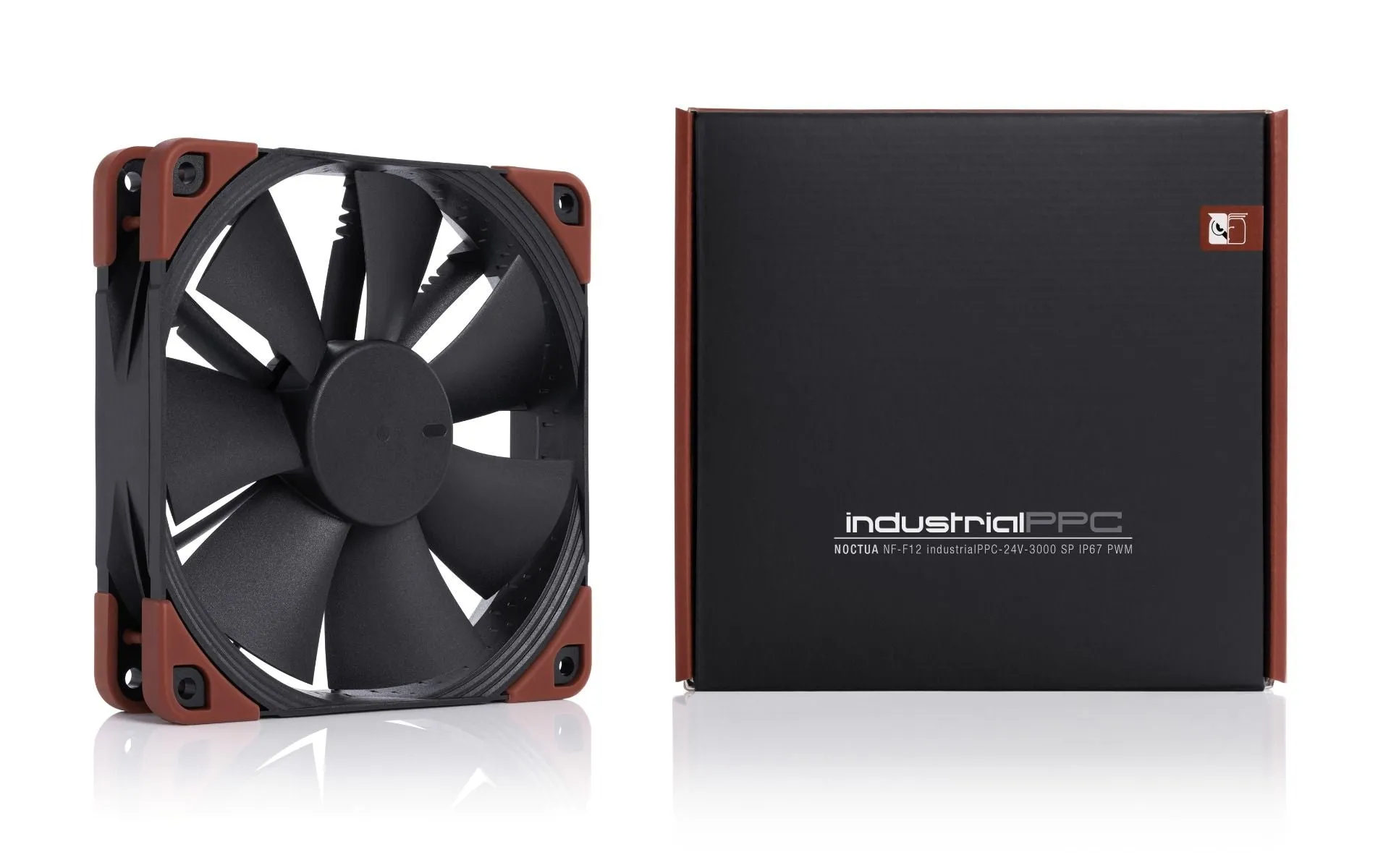

• Scope of Delivery: Fan, 4 Fan Screws

• Warranty: 6 years
