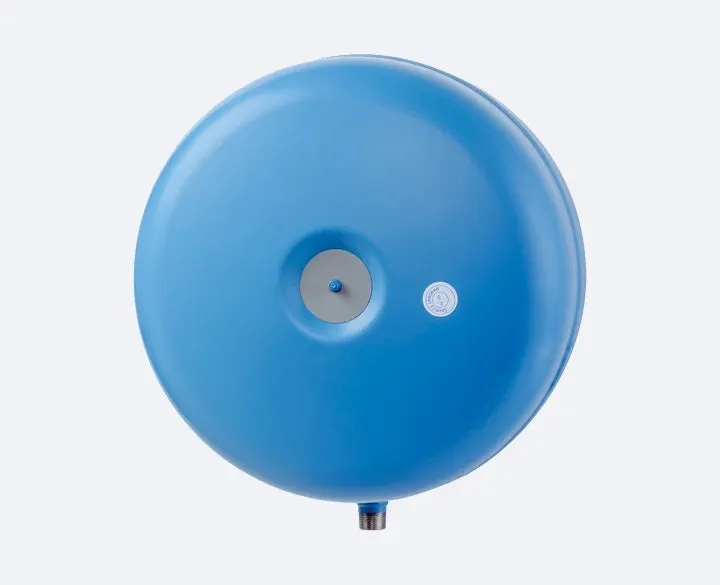

The Statico range features pressure expansion vessels with fixed gas charge for heating, solar and cooling water systems. A brilliantly simple design, robust construction and operation without auxiliary power make them among the most sought-after pressure maintenance devices in the lower performance range.
Technical Description
Applications:
Heating, solar and chilled water systems.
Media:
Non-aggressive and non-toxic system media.
Addition of antifreeze agent up to 50%.
Pressure:
Min. admissible pressure, PSmin: 0 bar
Max. admissible pressure, PS: see Articles
Temperature:
Max. admissible bag temperature, TB: 70°C
Min. admissible bag temperature, TBmin: 5°C
For PED purposes:
Max. admissible temperature, TS: 120°C
Min. admissible temperature, TSmin: -10°C
Material:
Steel. Color beryllium.
Lock shield valve DLV: Brass
Airproof butyl bag according to EN 13831 and Pneumatex internal standard.
Transportation and storage:
In frostless, dry places.
Standard:
Constructed according to PED 2014/68/EU.
Warranty:
5-year warranty for the vessel.
