Financing is not available for pre-owned units

Condition:

Functional: This machine has been previously owned, returned to the Anaheim headquarters, and repaired and tested by OMTech Specialists. The device may have some signs of cosmetic wear and/or structural damage, but is fully operational and functions 100% as intended.

Good: This machine has been previously used, returned to the Anaheim headquarters, and repaired and tested by OMTech Specialists. The device may have some cosmetic wear and/or signs of use but is fully operational and functions 100% as intended.

Great: This machine has been previously used, returned to the Anaheim headquarters, and repaired and tested by OMTech Specialists. The device has minimal signs of use but is fully operational and functions 100% as intended.

PLEASE NOTE: The images shown in this listing do not fully represent the cosmetic condition of the machine.

OMTech Certified:

This machine has undergone a thorough QA inspection by an OMTech Specialist, and each component has been repaired and tested for full operational performance.

Photo Guide:

View condition examples of previous Pre-Owned models:

Safe Shipping:

This unit is carefully secured to a reinforced pallet and protected with several layers of bubble wrap for a dependable delivery.

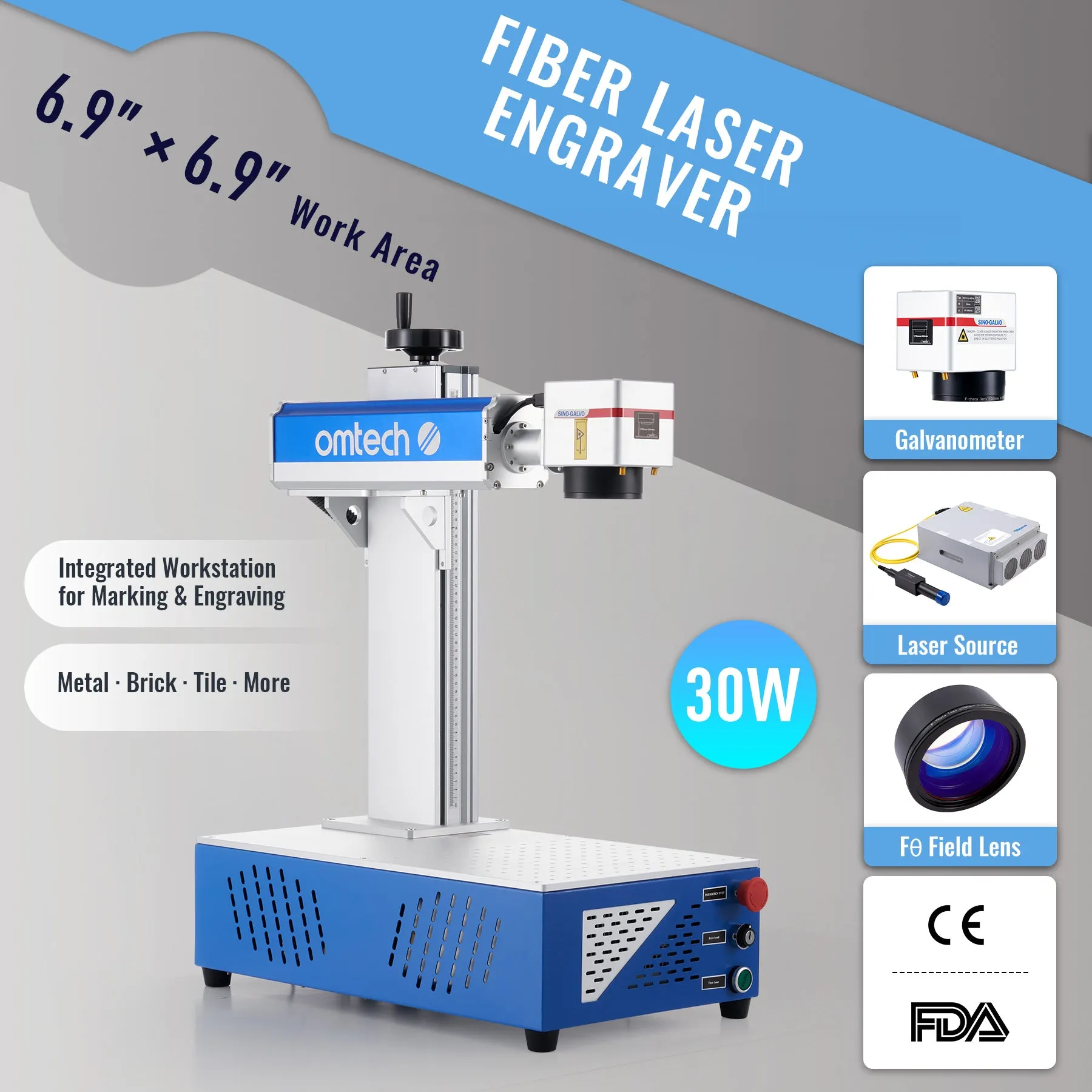

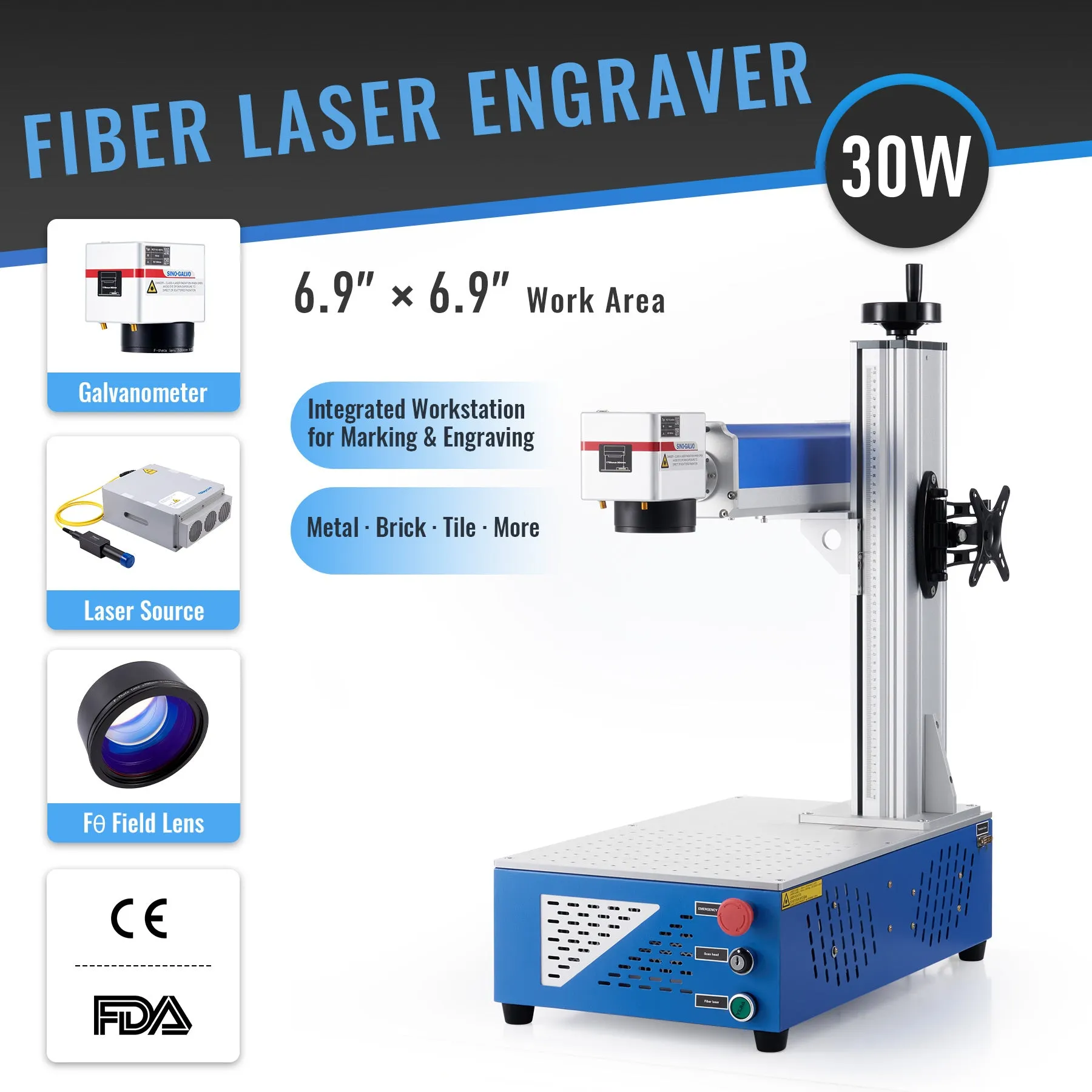

SPECS:

• Laser Source: Raycus
• Galvanometer Source: Galvo-Tech
• Output Power: 30W
• Laser Wavelength: 1064 nm
• Laser Frequency: 30-60 kHz
• Engraving Area: 6.9 x 6.9 in. (175x175 mm)
• Max. Marking Speed: 275.6 ips (7000 mm/sec.)
• Max. Marking Depth: 0.003 in. (0.08 mm) on a single pass
• Positioning Accuracy: ±0.000004 in. (±0.1 μm)
• Est. Laser Service Life (MTTF): 100,000 hr.
• Operating Software: EzCad2 for Windows XP, 7, 8, or 10 (32/64 bit)
• Supported Image Formats: .ai, .bmp, .dx, .dxf, .gif, .jpg, .plt, .png, .tga, .tif
• Package Dimensions: 29.5 x 17.5 x 22.4 in. (75x44.5x57 cm)
• Machine Weight: 72.8 lb. (33 kg)
• Certification: CE, FDA

Cutting Edge Features:

• 30W SOLID-STATE LASER: This 30W fiber laser marking machine from OMTech will allow you to bring your ideas to life with greater speed and precision than ever before, etching precious and base metals with perfect clarity; ideal for applications with tight tolerances, the laser source is also incredibly durable with an average service life over 100,000 hours
• PRECISION OPTICS: This laser metal marking machine's high-speed galvanometric system gives you extreme stability for quick scanning, engraving, and turnaround; make your mark on gemstones, silicon, steel, aluminum, brass, and more as the compact Fθ field lens uses its air-spaced design and protective & anti-reflective coatings to provide throughput with less than 1% distortion
• 175x175mm WORKBED: This fiber laser cutter provides a 9x6.9 inch (17.5x17.5 cm) bed with a built-in workspace grid and external laser locator for fast and exact calibration and focusing; one pair of protective eyewear comes included to safely handle the open design; and grid dots facilitate the positioning bars that can be used to hold your material in just the right spot every time as your laser works at speeds up to 275.6 ips (7000 mm/s)
• EASY OPERATION: This laser cutting and engraving tool comes bundled with EzCad2 software compatible with 32 and 64-bit editions of Windows 7, 8, and 10 and a wide range of image formats (see below); the included footpad trigger keeps batch work humming along, while the emergency button stands by so nothing goes awry; and when you need to engrave rings, bracelets, or other curved surfaces, your rotary axis attachment (not incl.) can be easily connected using the plug-and-play 4-pin connection port.

Package Includes:

• 1 x Fiber Laser Engraver

• 2 x Positioning Bars
• 8 x Attaching Bolts
• 1 x Tape Measure
• 1 x USB Flash Drive with Software
• 1 x Protective Eyewear
• 1 x Foot Switch
• 1 x Power Cord
• 1 x Hex Wrench Set
• 1 x Tool Box
• 1 x Monitor Mount
• 1 x Ground Wire
• 1 x USB Cable
• 1 x Height Lock
• 1 x Instruction Manual

OMTech Certified Warranty:

• Great: 1-year parts warranty on pre-owned fiber laser machines
• Good: 6-month parts warranty on pre-owned fiber laser machines
• Functional: 3-month parts warranty on pre-owned fiber laser machines

Certifications:

• FDA Compliant
• CE Certification
• ISO9001 Quality Certification
• One 45-minute Virtual Tech Support appointment with OMTech Specialists in Anaheim, California

OMTech's 30W fiber laser engraver is your ultimate resource for engraving words, logos, pictures, barcodes, and more on metal (including personalized gold and silver jewelry!) and other materials with quick turnaround and perfect accuracy. Our device's state-of-the-art air-cooled fiber laser avoids the tetchiness, fragility, and water-based mess of CO2 laser tubes. Instead, it provides solid-state efficiency, quality, stability, and durability for its entire service life of 100,000 hours. The Sino-Galvo galvanometric system and compact Fθ field lens ensure quick work with less than 1% distortion from your design. The built-in red dot locators allow you to precisely adjust the height of the laser arm to quickly find the exact focus for various materials. With the optional rotary axis, you are able to mark on curved surfaces. The machine is controlled by its included copy of EzCad2, compatible with Windows 7, 8, and 10. For all your projects marking and cutting metal, rubber, leather, and more, you can do no better. This product ships with abundant insulation and padding to ensure it arrives at your door like it just came off the factory floor. NOTE that this device has an open worktable. It comes with one pair of protective eyewear but anyone else in the room with the device should also have their own laser glasses to avoid any possibility of injury from its beam.

Get the most out of your laser engraving equipment with OMTech!

Compatible Materials:

• Acrylic
• Hard Plastics
• Brick
• Granite
• Marble
• Tile
• Aluminum
• Gold
• Silver
• Stainless Steel
• Brass
• Titanium
• Tungsten

*Contact us with questions on specific materials not listed, we can process a sample for confirmation. Some PVC-based acrylics can create toxic fumes when lasered.
