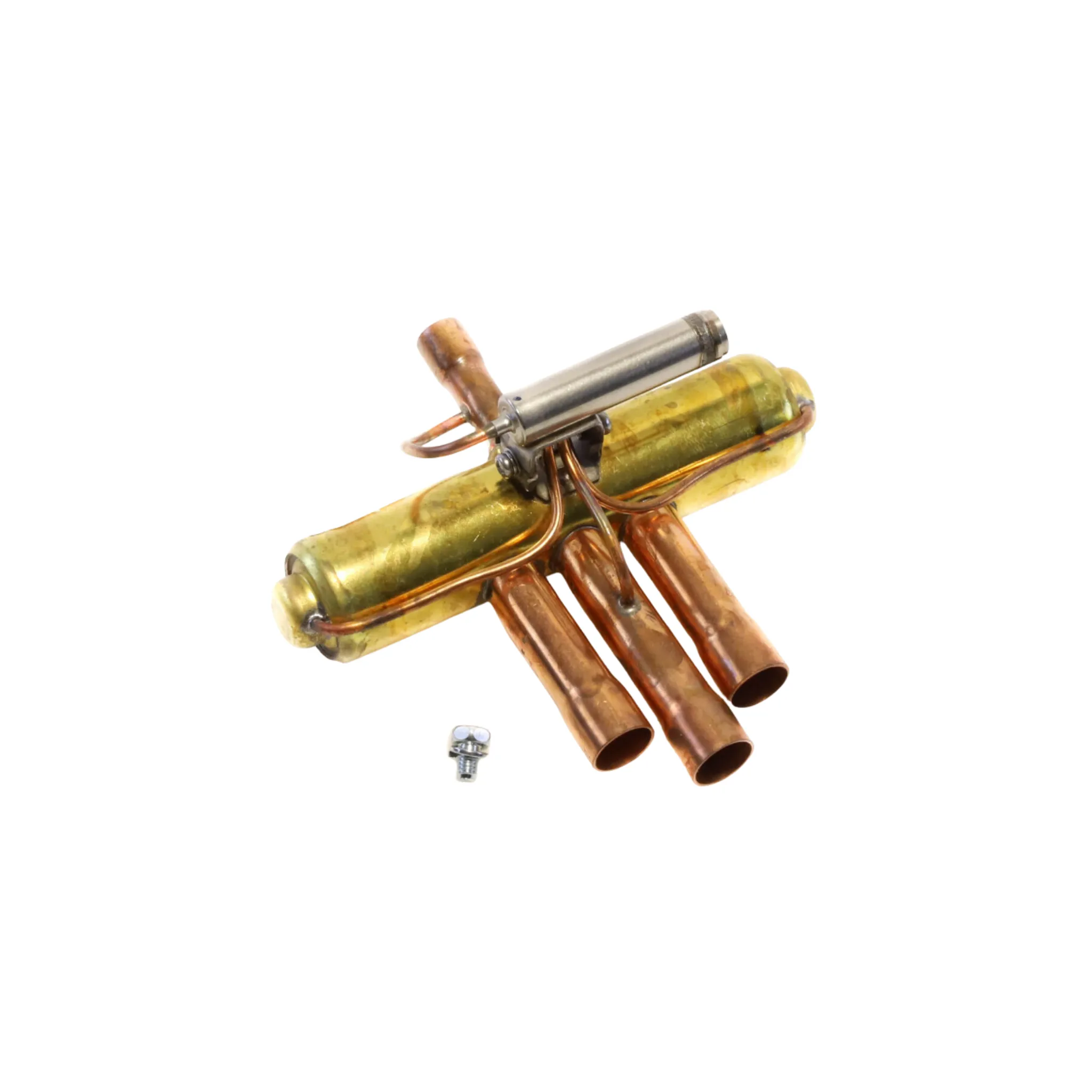

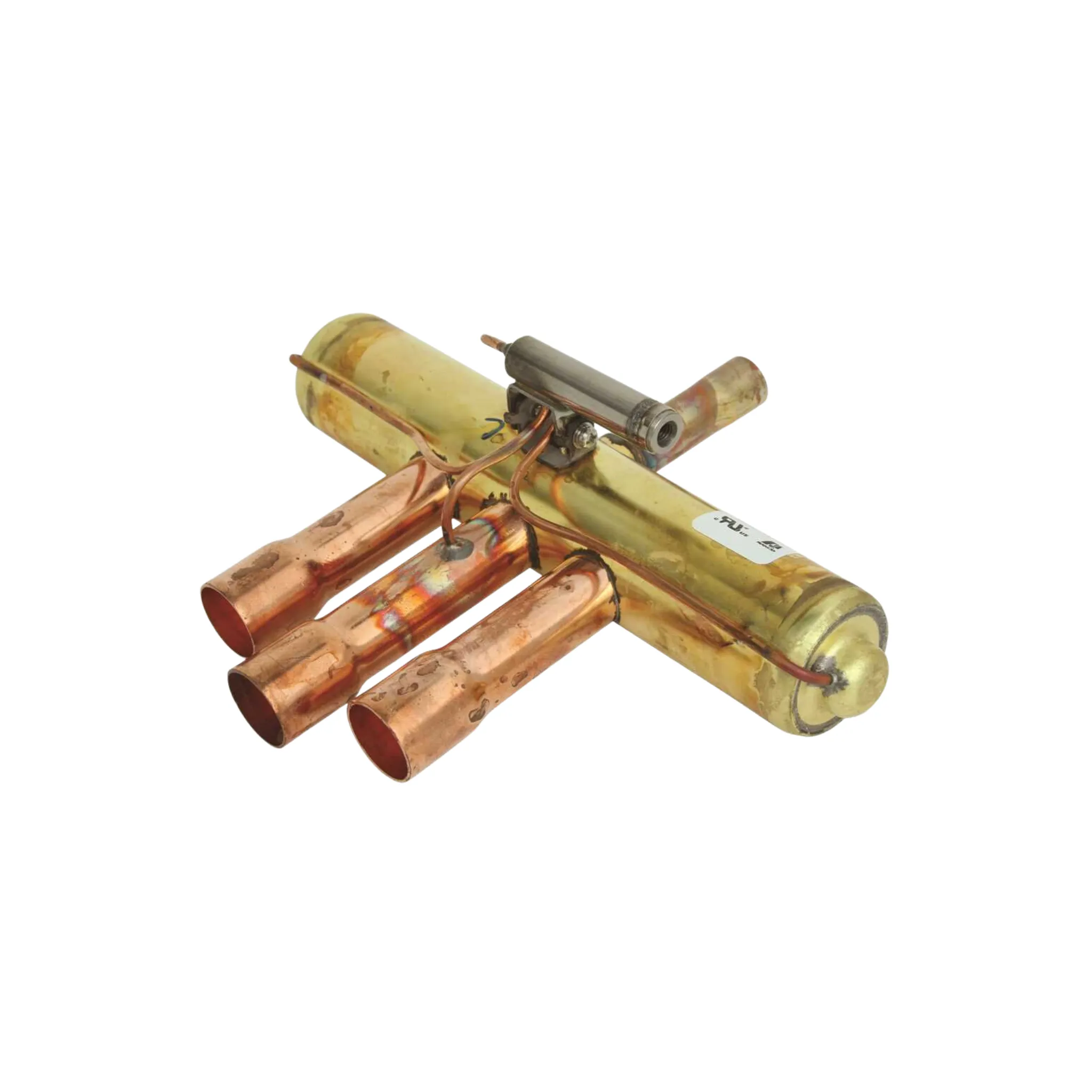

The V12-4220T0-270 is a 4-way reversing valve that has a 1-1/8" discharge and 1-3/8" suction tube connection sizes. It has a 0 to 690 psi operating pressure with up to 12-ton capacity. UL-recognized, RoHS compliant, ISO and CQC certified.
The reversing valve is ideal for heat pumps, de-icing circuits, and hydronic heating such as window type, unitary, & split systems. The unit is used to reverse the flow of refrigerant and provide heating or cooling into the heat pump system.
The V12-4220T0-270 is easy to install with a hermetically sealed brass design made of durable material. The LDK-110000-070 24V red, LDK-310000-070 120V black, LDK-410000-070 208-240V green, and LDK-510000-070 277V blue solenoid coil accessories are also available.

Specifications:

Manufacturer: Ranco
Manufacturer Part Number: V12-4220T0-270
Product Type: Reversing Valves
Tube Size Suction: 1 3/8"
Tube Size High Pressure: 1 1/8"
Temperature Range: -40 to 158 Degrees F
Dimensions: 8.75" x 11.25" x 3.4"
Weight: 11.0 lb.
