Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | XQ-1494 |
| Connection Type | Plug |
| Insulation Color | Green/White |
| Insulation Material | Fiberglass |
| Jacket Color | Green |
| Jacket Material | Stainless Steel |
| Length, Wire | 9.84 ft (3m) |
| Maximum Operating Temperature | 662 F (350 C) |
| Minimum Operating Temperature | -76 F (-60 C) |
| Shop By | Factory Choice |
| Thermocouple Type | Type K |
| UPC Code | 5056279027700 |
| Wire Size | 7/0.2 (0.219mm2) |
Overview

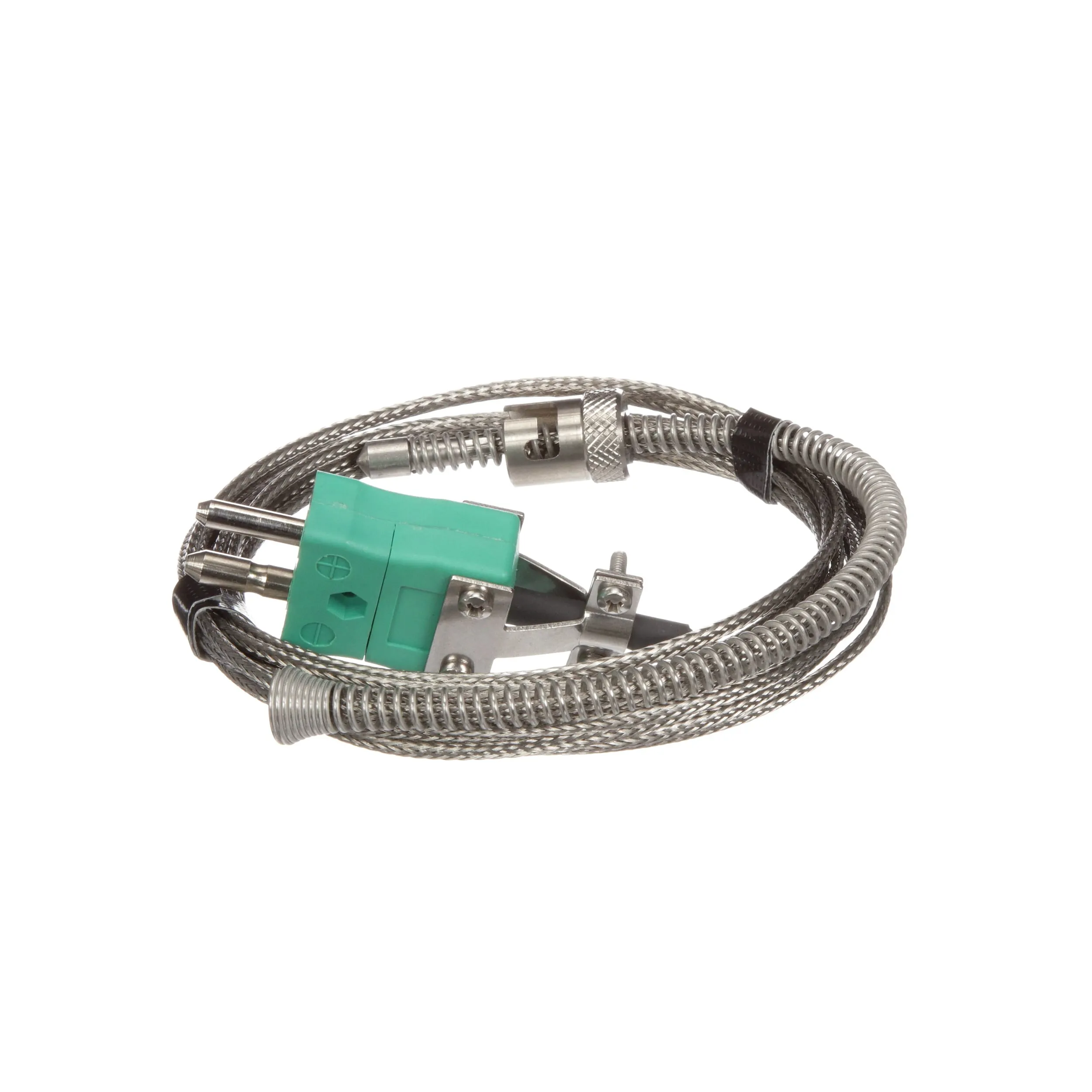

Type K or J Adjustable Bayonet Thermocouples
Thermocouple with adjustable insertion depth
6.0 mm diameter tip
170 mm spring with adjustable fixing cap (11.5 mm I.D. single slot)
Glassfibre insulated lead with stainless steel overbraid, 7/0.2mm
Rated 350°C
Fitted with cable clamps and standard thermocouple plug
Good temperature resistance but not suitable where fluids are present
Tolerance Class 2 to IEC-584
Insulation rating -60°C to 350°C (short periods up to 400°C)
Colour code (cores & jacket) to IEC-584-3
Type J or K available
