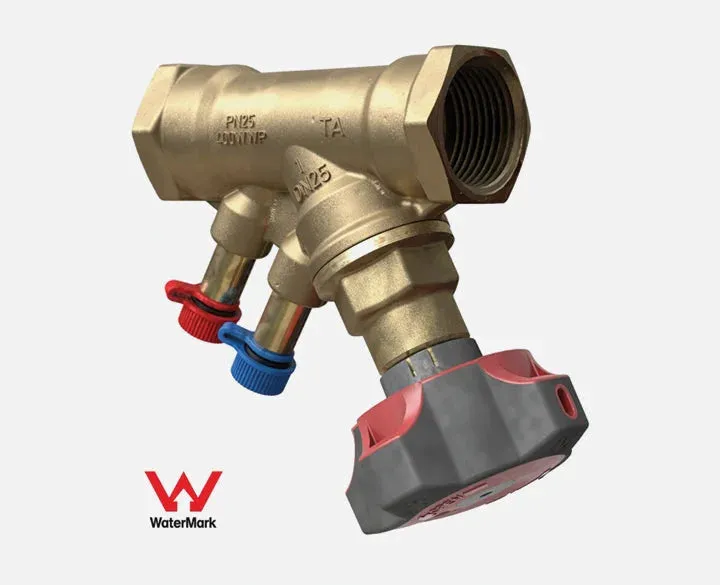

The STAD balancing valve delivers accurate hydronic performance in an impressive range of applications. Ideally suited for use on the secondary side in heating and cooling systems, and tap water systems.
High accuracy for all settings
Ensure accurate balancing and flow reading.
Handwheel
Equipped with a digital read-out, the handwheel ensures accurate and straightforward balancing. Positive shut-off function for easy maintenance.
Self-sealing measuring points
For simple, accurate balancing.
AMETAL®
Dezincification resistant alloy that guarantees a longer valve lifetime and lowers the risk of leakage.
Technical description
Application:
- Heating and cooling systems
- Tap water systems
Functions:
- Balancing
- Pre-setting
- Measuring
- Shut-off
- Draining (depending on valve type)
Dimensions:
DN 10-50
Pressure class:
PN 25
Temperature:
- Max. working temperature: 120°C
- (intermittent 150°C)
- For higher temperatures (max. 150°C), see STAD-C.
- Min. working temperature: -20°C
Media:
Water or neutral fluids, water-glycol mixtures (0-57%).
Material:
- Valve body and bonnet: AMETAL®
- Sealing (body/bonnet): EPDM O-ring
- Valve plug: AMETAL®
- Seat seal: EPDM O-ring
- Spindle: AMETAL®
- Slip washer: PTFE
- Spindle seal: EPDM O-ring
- Spring: Stainless steel
- Handwheel: Polyamide and TPE
- Measuring points: AMETAL®
- Sealings: EPDM
- Caps: Polyamide and TPE
- Draining: AMETAL®
- Sealing: EPDM
- Gaskets: Fiber-based aramid
AMETAL® is the dezincification resistant alloy of IMI Hydronic Engineering.
Marking:
Body: IMI, TA, PN 25/400 WWP, DN and inch size. DN 50 also CE.
Handwheel: TA, STAD* and DN.
Connection:
- Female thread according to ISO 228. Thread length according to ISO 7/1.
Approvals:
52 158-0xx: WaterMark, IAPMO R&T OCEANA
