Product Details
＋
The TB6600 stepper motor driver is designed to control two-phase and four-phase stepper motors, providing efficient performance with high-quality chips and multiple protection features. It supports a wide range of motors and offers adjustable current levels, multiple micro-stepping options, and robust power protection, making it ideal for CNC machines, 3D printers, and robotics applications.
Features:
Adjustable Current Levels: Customized current settings to suit various motor and application needs.Power Protection: Anti-reverse connection protection prevents damage due to incorrect wiring.
High-Speed Operation: The 6N137 optical coupler ensures no steps are lost at high speeds.
Easy Setup: Printed instructions on the board for hassle-free configuration.
Heat Dissipation: Thick, the dense-tooth heat sink for efficient cooling.
Applications:
CNC Machines: Precise control for multi-axis CNC systems.3D Printers: Smooth motor control for accurate layer-by-layer printing.
Robotics: Efficient and reliable motor control for robotic movements.
Industrial Automation: Stepper motor control for automated manufacturing systems.
Engraving Machines: Ensures fine control for detailed engraving work.
Technical Details
- Working Voltage: DC 10V-35V (Recommended: DC 24V switching power supply)
- Maximum Output Current: 3A
- Optical Coupler: 6N137 high-speed optical coupler
- Chip Protection: Toshiba chips with low-voltage, overheating, and over-current shutdown
- Motor Compatibility: Two-phase, four-phase, four-wire, six-wire motors (up to 42 and 57 step motors, 4A max)
- Subdivision: Full step, half step, 1/4, 1/8, 1/16, 1/32 (Maximum 32 microstepping)
- Automatic Half-Flow: Reduces power when a motor is idle for energy efficiency
Physical Attribute
- Weight (gm): 154
Package Includes

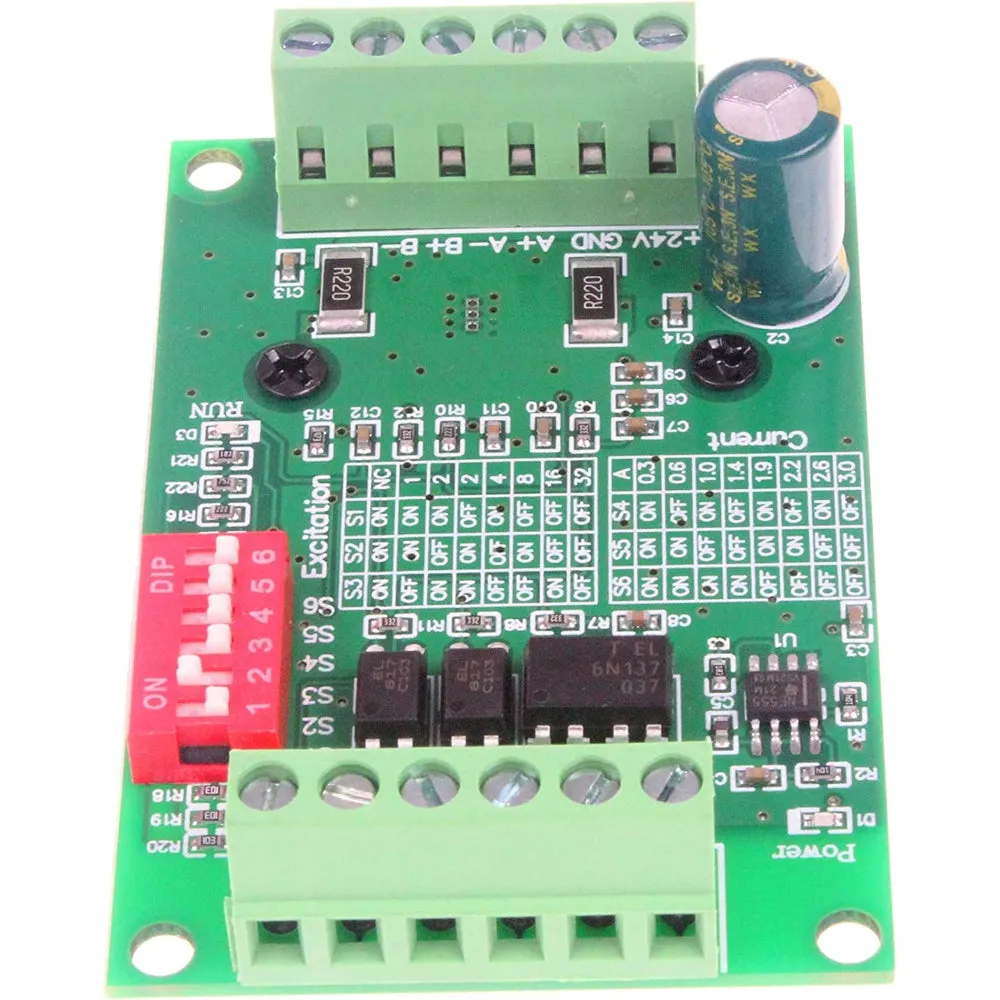

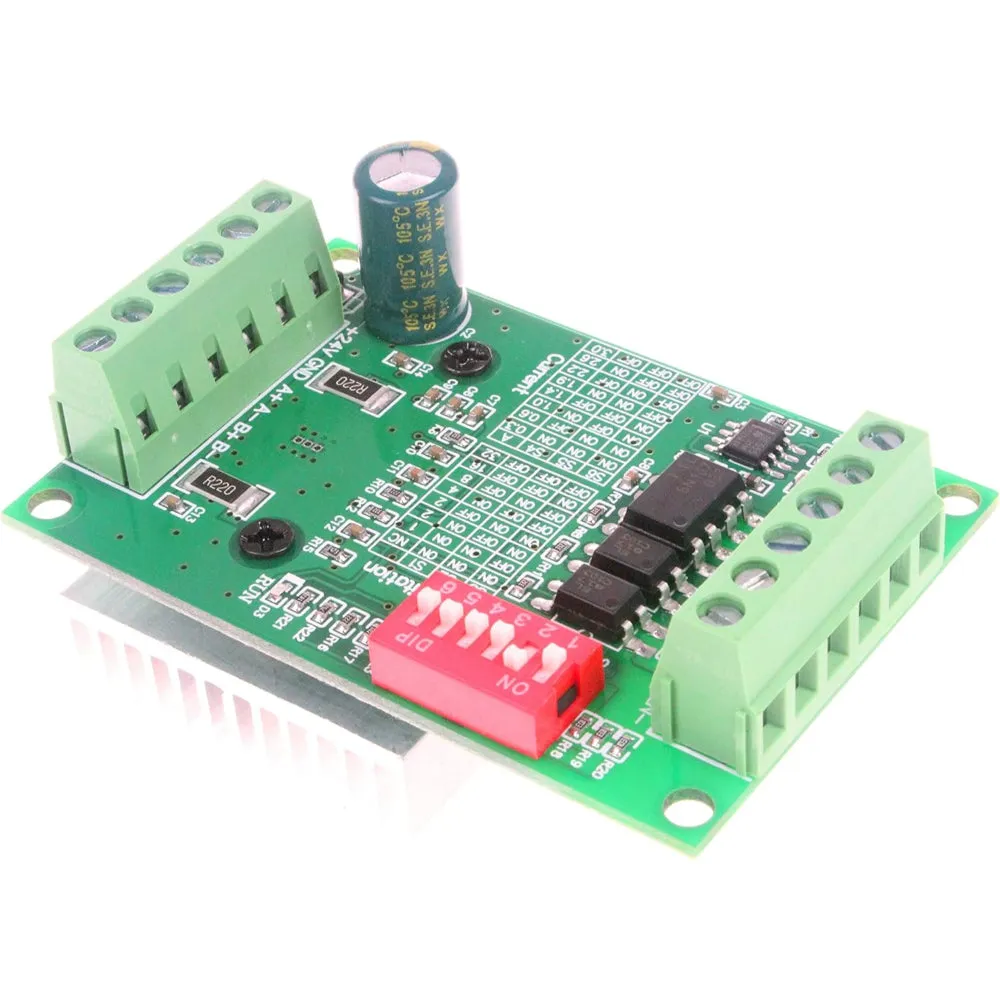

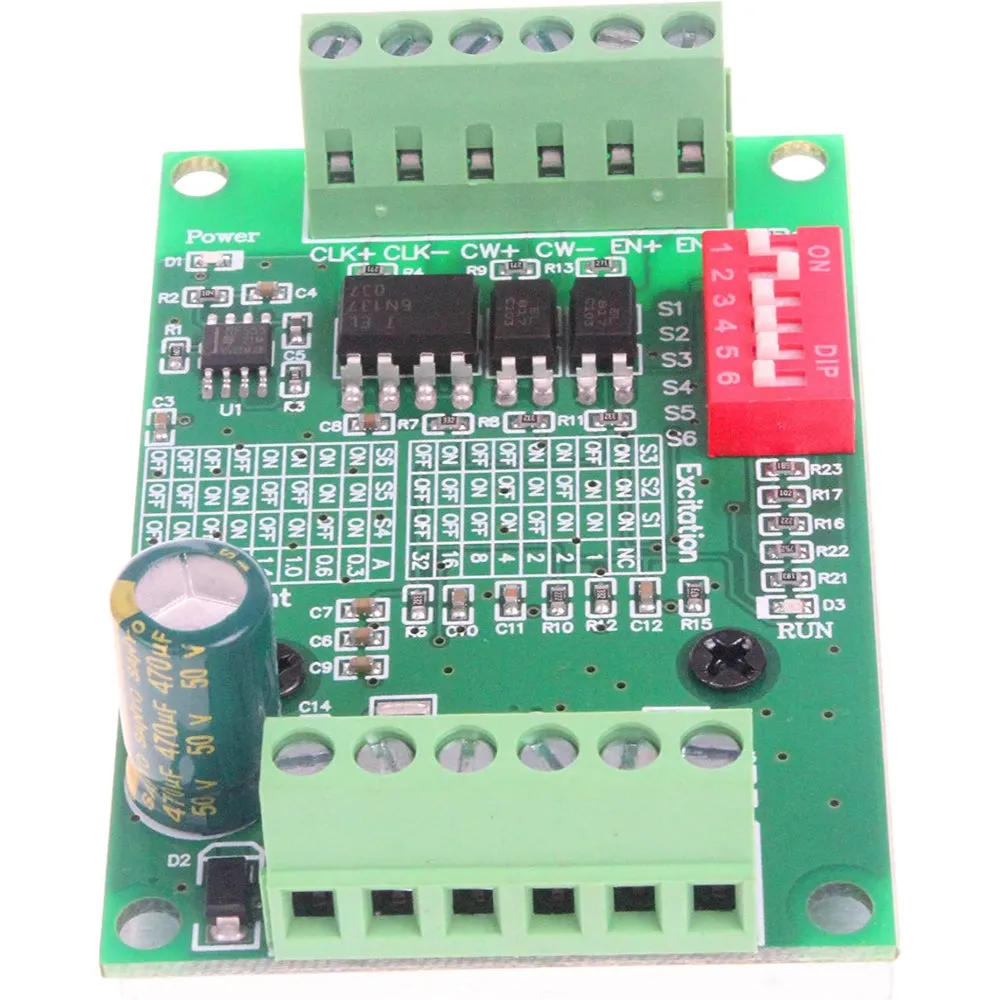

- 1 x TB6600 Nema 17, 23 Stepper Motor Driver Controller Board Module 3A 10-35V
