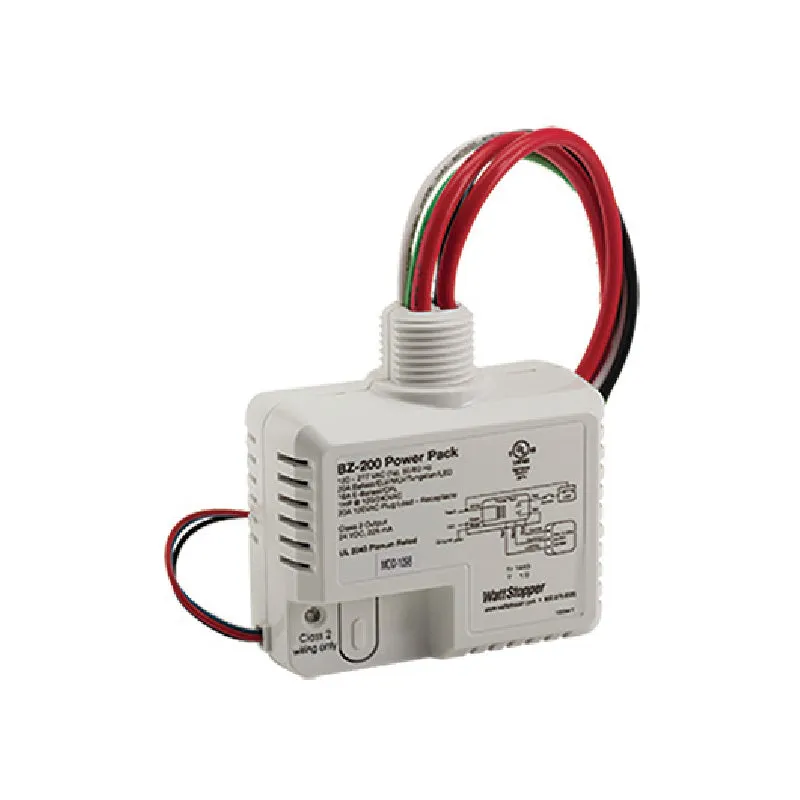

The BZ-200 power pack switches connected loads On and Off in response to Wattstopper low voltage occupancy sensors. It also provides up to 225mA at 24VDC to power the sensors. This device is constructed with environmentally friendly materials and is RoHS-compliant.

Features

• Input Voltage: 120/277VAC, 50/60Hz
• Output: 24 VDC, 225 mA (with relay connected)
• Efficient switching power supply provides optimized current output based on number of sensors
• Includes short circuit and thermal protection
• LED indicates status of relay or presence of low-voltage overcurrent
• Tested to NEMA 410 criteria for electronic ballast and driver inrush current
• 1/2" threaded nipple attaches to standard electrical enclosures through 1/2" knockouts

Dimensions

• Width: 4"
• Height: 2.7"
• Depth: 3.8"
