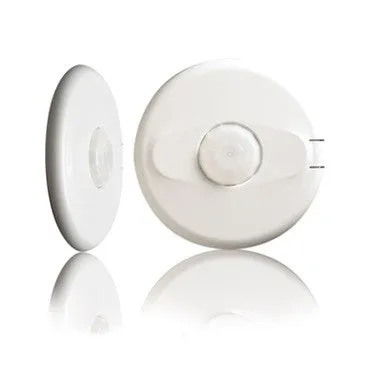

Wattstopper’s CI-300 Passive infrared (PIR) Ceiling Sensors automatically turn lighting on and off based on occupancy. The sensor mounts on the ceiling with a flat, low-profile appearance and provides 360 degrees of coverage.

Features

• Color: White
• Voltage: 24 VDC
• Current: 20 mA
• Coverage: 360°; up to 1200 ft2
• Light Output 1FCD: Automatic On/Off
• Response Time: 5 to 30 minutes
• Architecturally appealing low-profile appearance
• Auto set automatically selects optimal time delay and sensitivity settings
• Automatic or manual-on operation when used with a BZ-150 Power Pack
• Plug terminal wiring for quick and easy installation
• Accepts low-voltage switch input for manual-on operation
• Walk-through mode increases savings potential

Dimensions

• Width: 4"
• Height: 3"
• Depth: 4"
