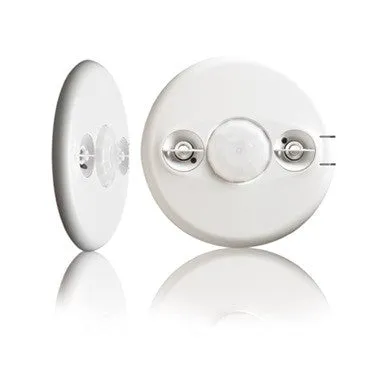

The DT-305 Dual technology Ceiling Sensors combine the benefits of passive infrared (PIR) and ultrasonic technologies to detect occupancy. Sensors have a flat, unobtrusive appearance and provide 360 degrees of coverage.

Features

• Finish: White
• Voltage: 24 VDC/VAC
• Current: 35 mA
• Coverage: up to 1000 Ft2
• Light Output 1FCD: Automatic On/Off
• Response Time: 5 to 30 minutes
• Architecturally appealing low-profile appearance
• Auto set automatically selects optimal settings for each space
• Walk-through mode increases savings potential
• Ultrasonic diffusers give more comprehensive coverage
• Plug terminal wiring for quick and easy installation
• Accepts low-voltage switch input for manual-on operation
• Automatic or manual-on operation when used with a BZ-150 Power Pack
• Typical Applications: Classrooms, open office spaces, large offices, and computer rooms

Dimensions

• Width: 4"
• Height: 2"
• Depth: 5"
