| Product Attribute | Attribute Value |
|---|---|
| Approvals | CE, IP65, NEMA 4 |
| Backlighting | Backlight |
| Connection Type | Screw-Terminal |
| Counter Type | Totalizer |
| Cut Out, Panel | 1.3×2.66 " |
| Depth | 0.079" (2mm) |
| Dimensions | 2.83" L x 1.42" H |
| Dimensions, Cutout, Inches | 68 x 33 mm mm |
| Display Digit Height | 12 mm |
| Display Range | 0 to 99999999 |
| Display Type | LCD |
| Frequency, Operating | 30 Hz |
| Function | Position Indicator, Totalizer |
| Input Type | NPN, PNP |
| Measurement Range | 0 to 99999999 |
| Measuring Range | -999999 to 999999 |
| Memory Type | Lithium |
| Minimum Operating Temperature | 0 °C °C |
| Mounting Type | Panel Mount |
| Number of Digits | 8 Digits |
| Output Type | Contact |
| Primary Type | Electronic |
| Product Header | Electronic Totalizing Counter |
| Series | |
| Supply Voltage | 10 to 28 VDC VDC |
| Temperature Range | 0 to 55 °C °C |
| Temperature, Opening, Maximum | 55 °C °C |

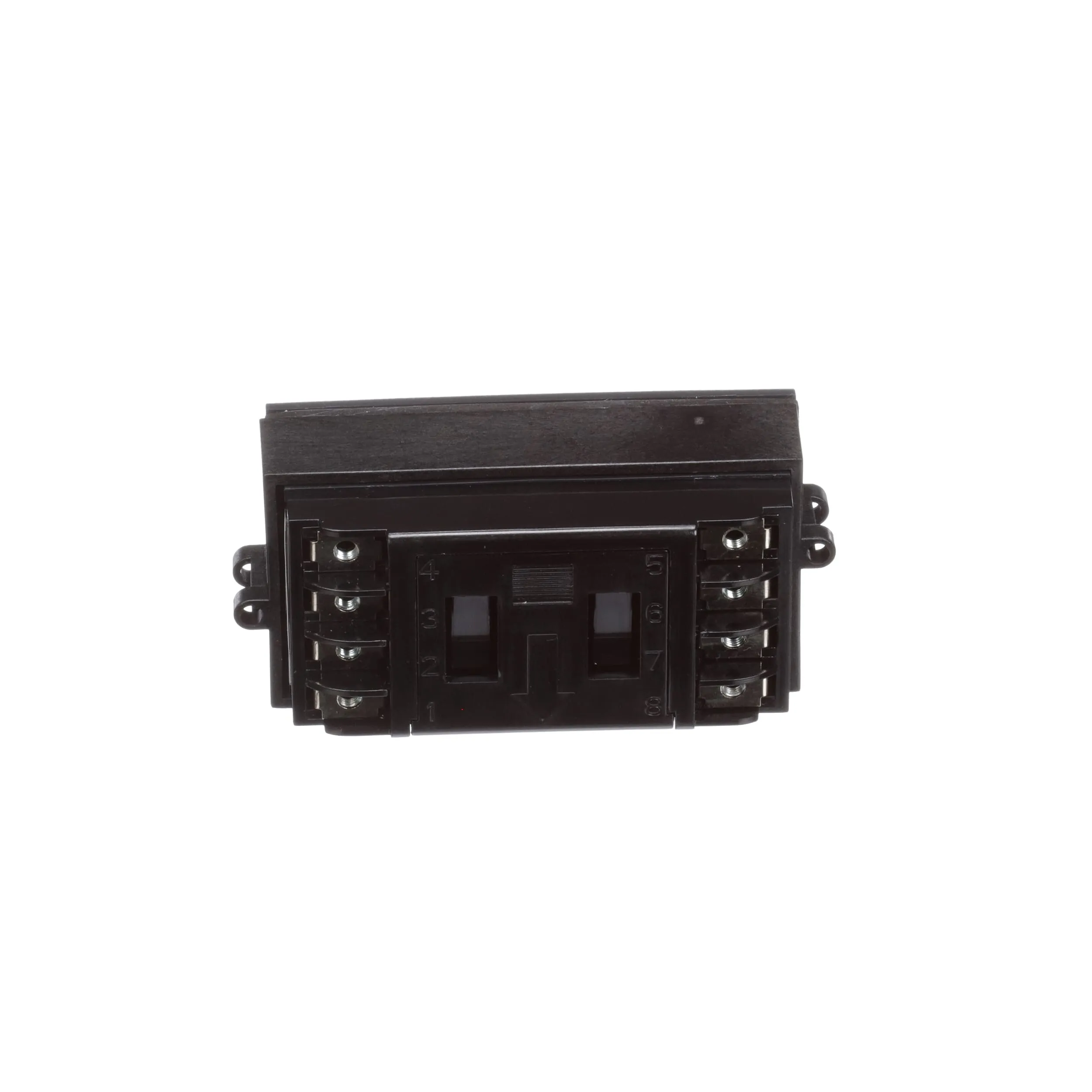

| Terminal Type | Screw Terminal |
| Termination | Screw Terminal |
| Type | Electronic |
| Weight | 2.25 Oz.(Approx.) |
Overview

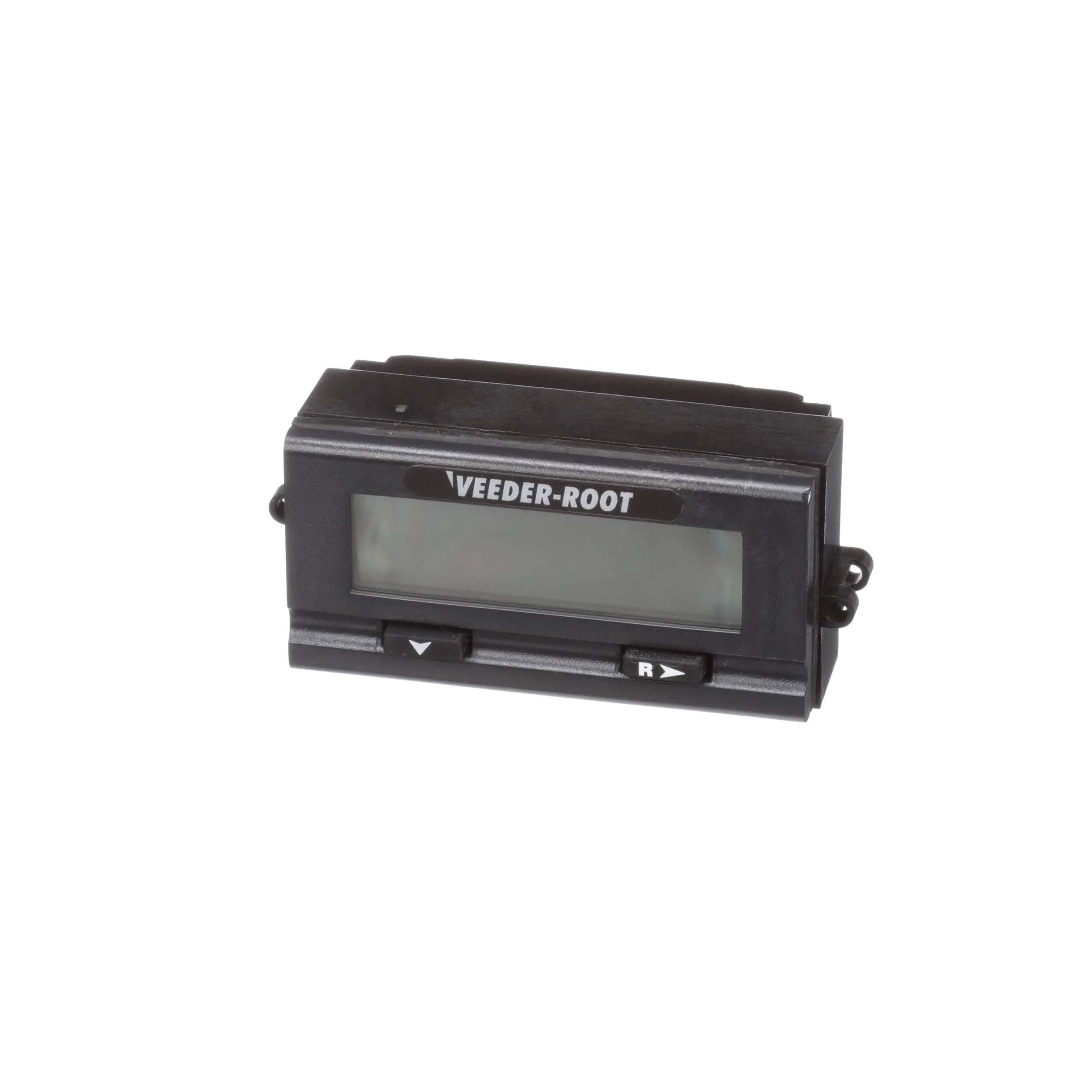

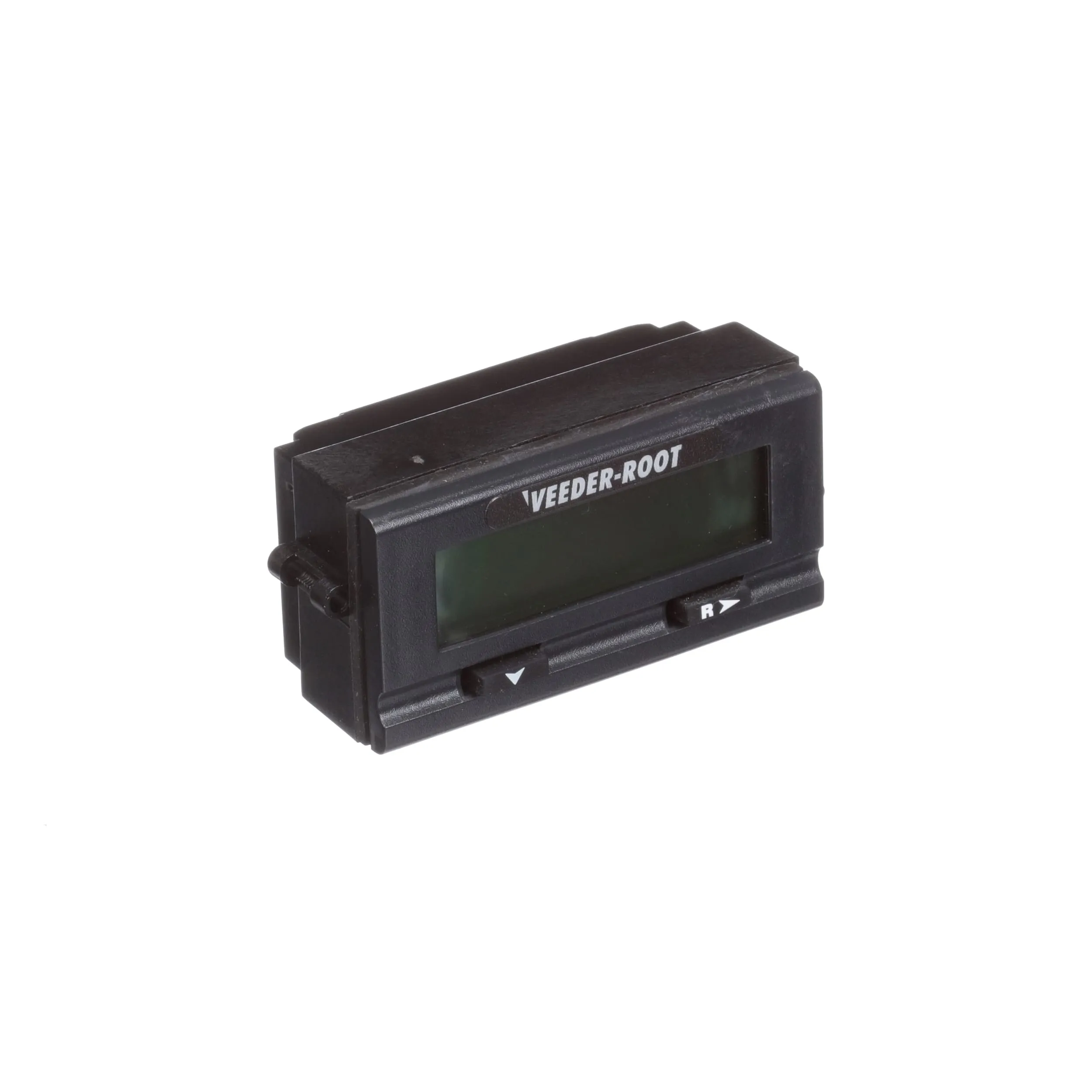

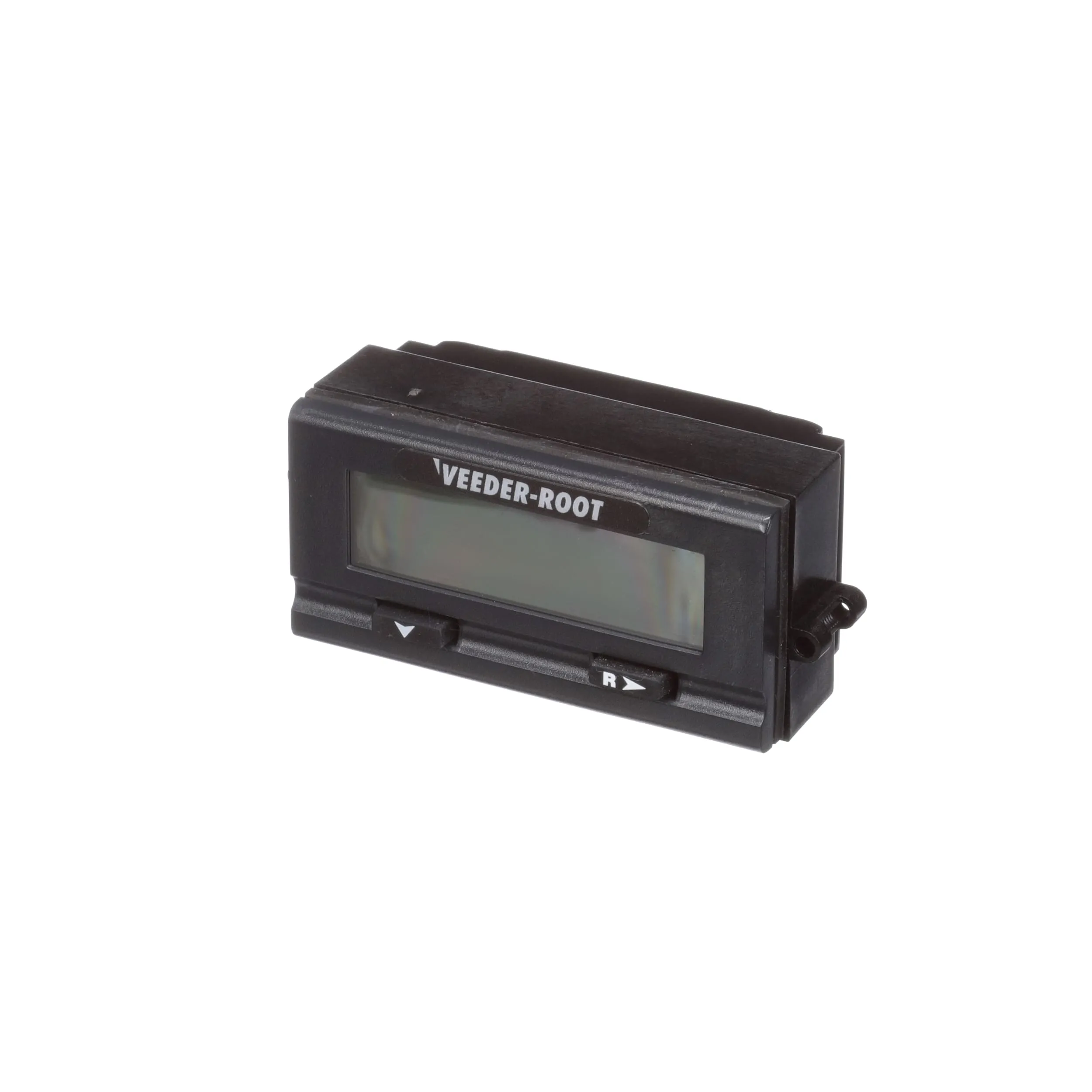

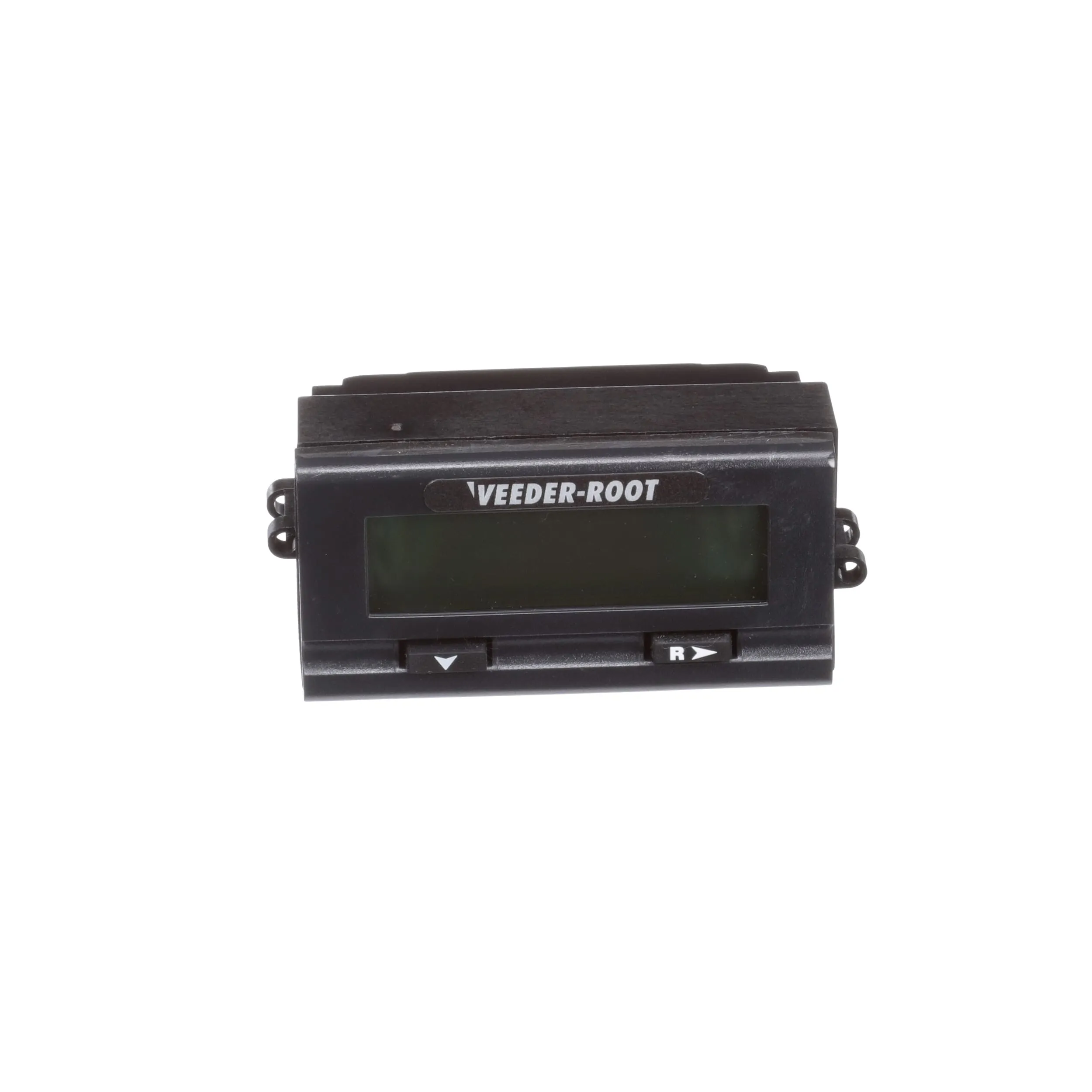

Counter, Totalizer/Position Indicator
The A103 totalizing and preset counters are compact and cost-efficient. Features include a supertwist LCD with 0.47" (12 mm) high digits and green illumination display backlight capability. Three volt lithium battery eliminates need for external power. Accepts input signals from dry contact, PNP or NPN sensors and encoders. High and low speed count inputs. Reset on front panel or remotely. Fits 68 × 33 mm cut-out. Order quick-attach option modules separately on this page. Front panel rated NEMA 4/IP65.
The 8 digit supertwist LCD display provides easy viewing at a glance. For conditions where ambient light is poor, the display can be backlit by connecting an external DC (10 to 28 V) power supply. A single unit can accept NPN & dry contact inputs for low
